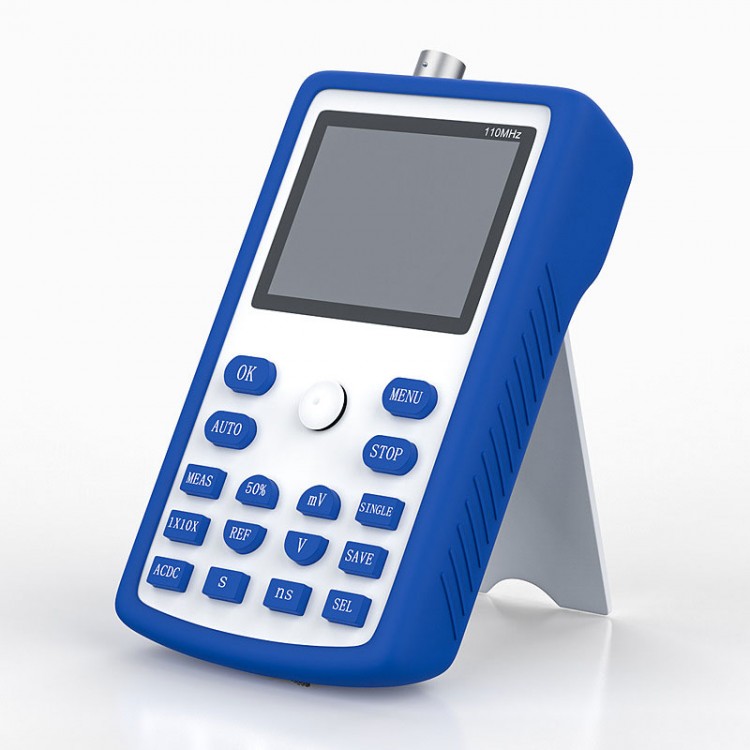

FNIRSI 1C15+ Handheld Digital Oscilloscope 110MHz 500MS/S With 1KHz/3.3V Square Wave Test Signal

Availability: In stock, usually dispatched in 1 business day

  • Price:$81.58
  • Price in reward points: 816 Reward Points: 8
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $79.95 $78.32 $75.87 $72.61 Contact US
Quantity:

FNIRSI 1C15+ Handheld Digital Oscilloscope 110MHz 500MS/S With 1KHz/3.3V Square Wave Test Signal

Product Manual:

Link for https://www.mediafire.com/file/r6xs0xmn60u25v7/FNIRSI-1C15_Product_Manual.pdf/file

Specifications:
- Model: For FNIRSI-1C15
- Channel coupling: AC/DC
- Time base range: 5ns-10s
- Single trigger: support
- Number of channels: 1
- One key automatic: support
- Vertical sensitivity: 20mV/div-100V/div
- 50%/back to middle: support
- Screen size: 2.4 inches
- Waveform measurement: 14 types
- Trigger mode: Automatic/Normal/single
- Operation method: Button + joystick
- Screen Resolution: 320*240
- Measurement accuracy: ±2%
- Trigger type: Rising edge/falling edge
- Waveform analysis: Support drag/expand
- Analog bandwidth: 110M
- Reference waveform: support
- Display mode: YT/Scroll
- Language: Chinese/English
- Sampling Rate: 500M
- Waveform save: support
- Afterglow time: None/1s/∞
- Product size: 130*76*27mm
- Rise Time: <3ns
- Frequency accuracy: ±0.01%
- Charging method: 5V/800mA
- Battery capacity: 3000mAh
- Storage depth: 12kpts
- Input resistance: 1MΩ
- Voltage measurement range: ±40v (x1 file), ±400v (x10 file)

Package Included:
- 1 x Set of Oscilloscope

Note:
- Other items pictured are not included in the package, for demonstration purposes only. Thank you for your understanding!
