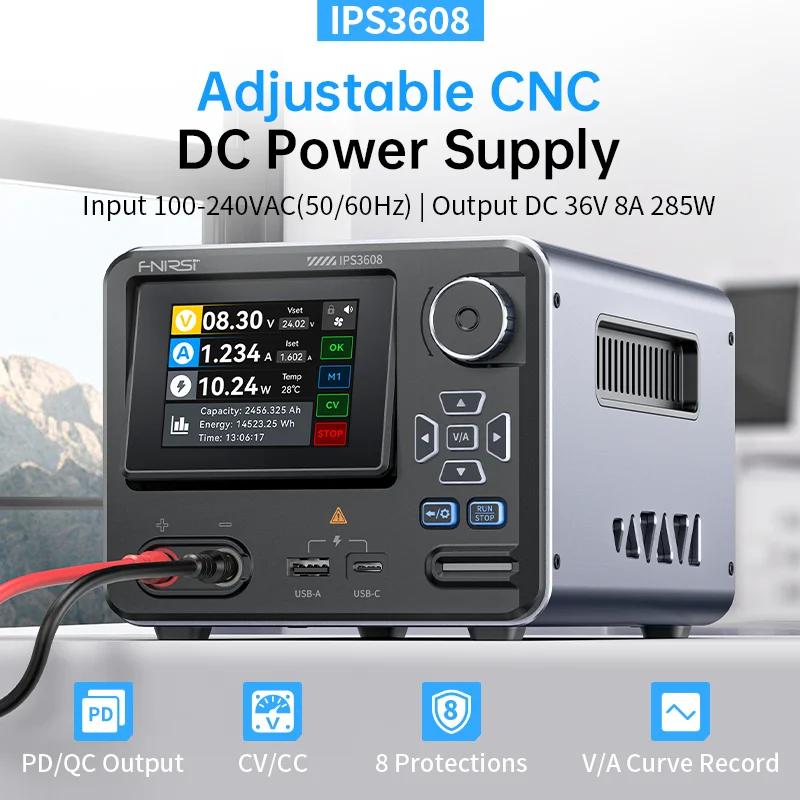

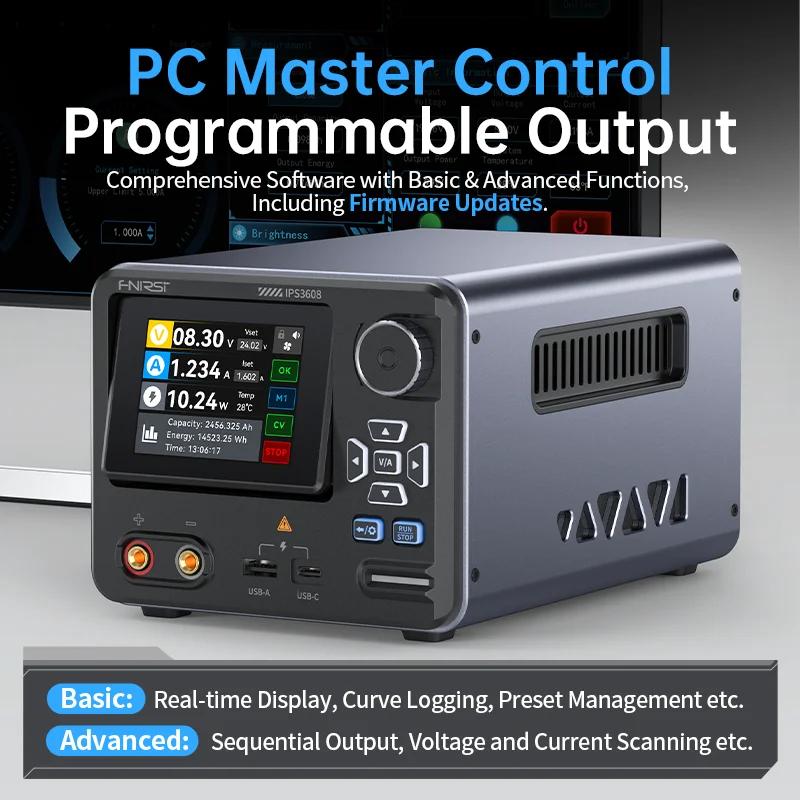

FNIRSI IPS3608 AC-DC Intelligent Adjustable Digital Control Power Supply Support PC Upper Computer Programming Output

FNIRSI IPS3608 AC-DC Intelligent Adjustable Digital Control Power Supply Support PC Upper Computer Programming Output

Description:
- IPS3608 is an AC-DC intelligent digital control power supply that uses digital control technology to efficiently convert AC power into DC power. It is much more intelligent than traditional power supplies. It has the characteristics of convenient parameter adjustment, high-precision output, strong dynamic response, convenient digital control interface, and multiple electrical protections. It is suitable for various scenarios such as personal measurement power supply, industrial manufacturing, experimental equipment power supply, and medical power supply. It meets the diverse and high-precision power demand and provides stable DC power for electronic equipment, which is a key force in the modern science and technology industry.

Specification:
- Model: IPS3608
- Input voltage: 100-240VAC(50/60HZ)
- Output voltage: DC 0~36V
- Output current: 0~8A
- Output power: 0~285W
- Output voltage resolution: 0.01V
- Output current resolution: 0.001A
- Output voltage accuracy: ±(0.3%+3 bits)
- Output current accuracy: ±(0.15%+5 bits)
- Operating environment: 0℃~40℃, 0%~75%RH
- Load regulation rate: ±(0.2%+2 bits)
- Screen: 2.8-inch color screen, support adjustable backlight brightness
- Weight: about 1539g
- Dimensions: 138 x 214 x 115mm

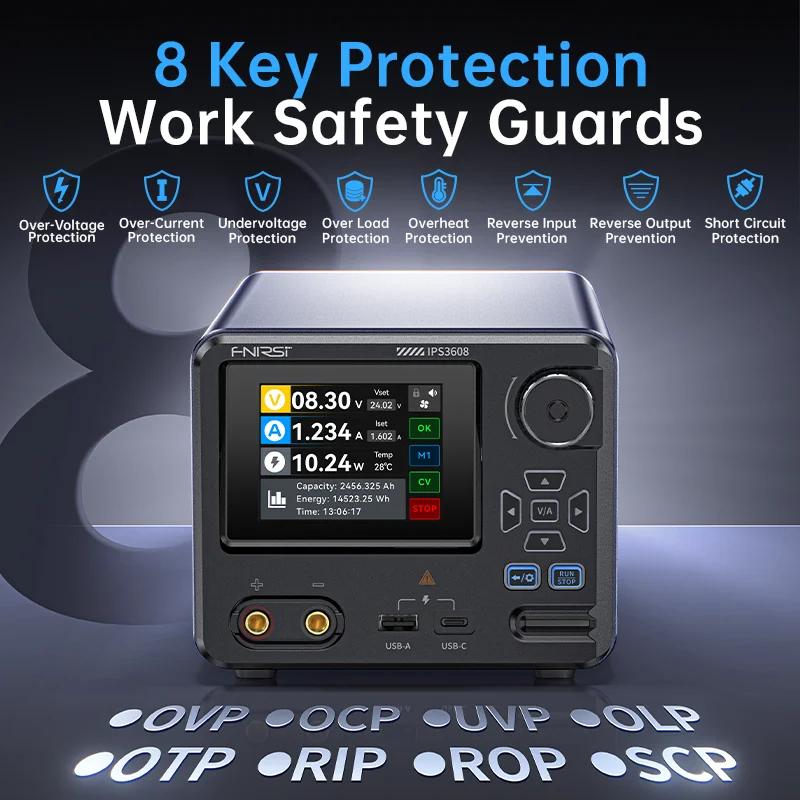

- Overvoltage protection: support
- Overcurrent protection: support
- Undervoltage protection: support
- Overpower protection: support
- Over-temperature protection: support
- Input reverse protection: support
- Output reverse protection: support
- Short circuit protection: support
- Firmware upgrade: support
- Language: Chinese/English

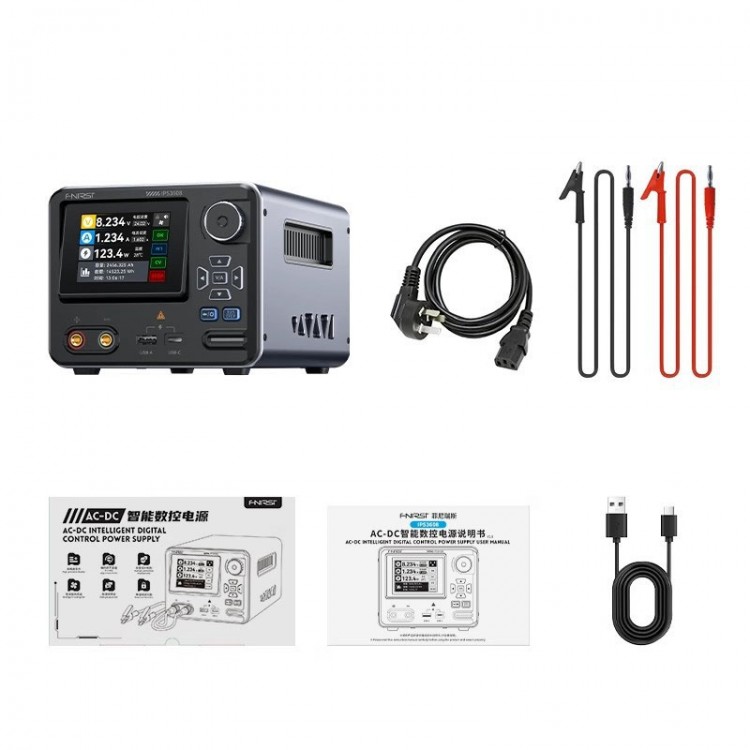

Package Included:
- 1 x Power Supply
- 1 x Power Cable
- 2 x Alligator Clip Wire
- 1 x Data Cable
- 1 x User Manual
