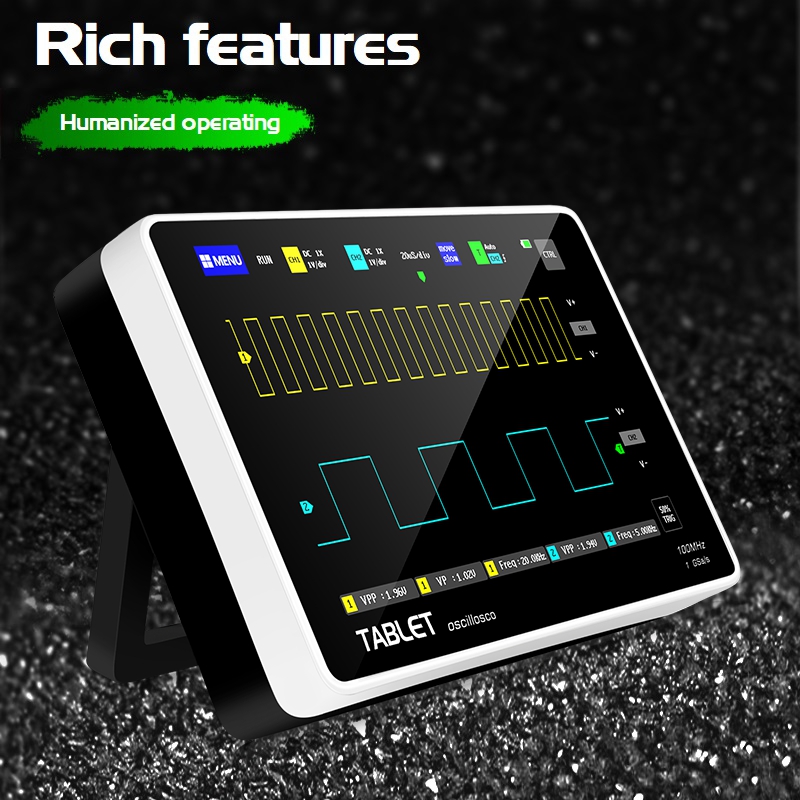

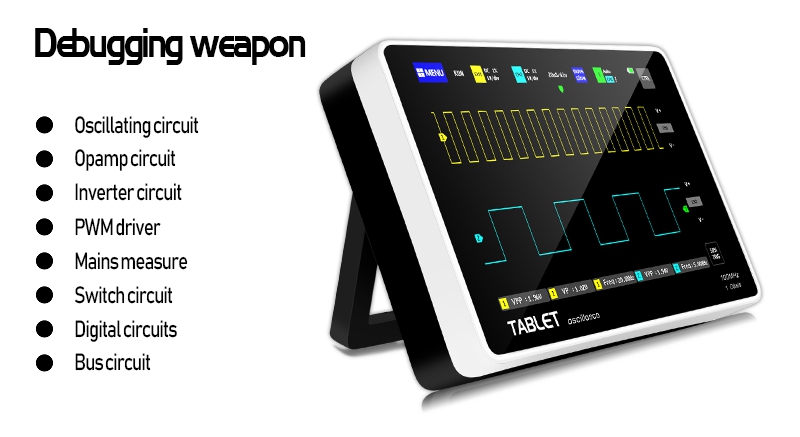

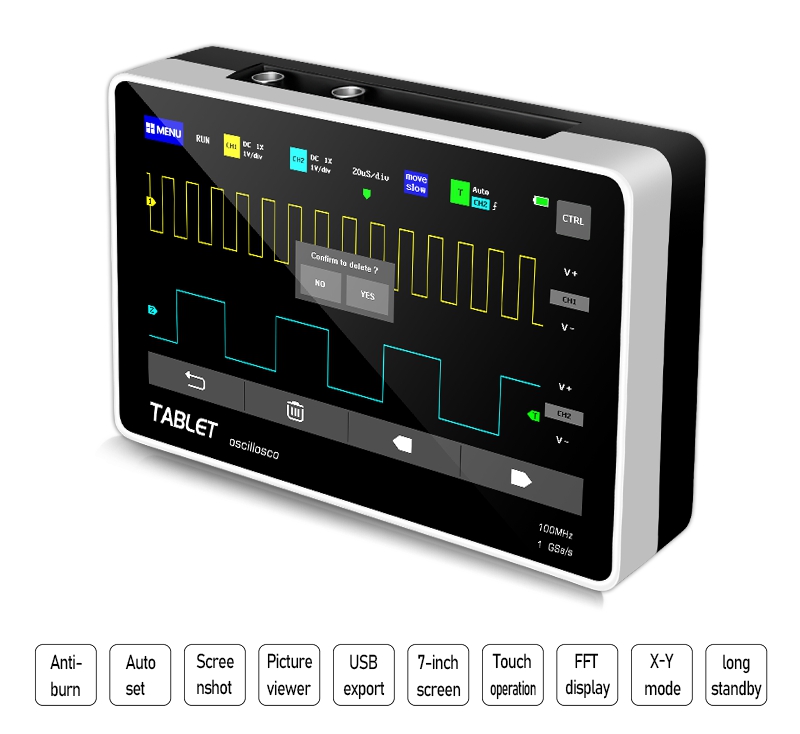

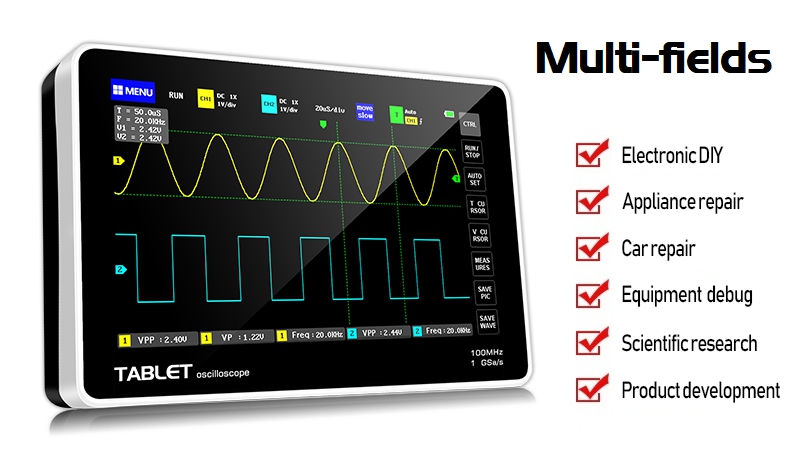

For FNIRSI-1013D Dual Channel Oscilloscope 100MHz 1GSa/s w/ 7" Color LCD Display Touch Screen

For FNIRSI-1013D Dual Channel Oscilloscope 100MHz 1GSa/s w/ 7" Color LCD Display Touch Screen

Product Introduction:
FNIRSI-1013D is a full-featured, highly practical, cost-effective dual-channel flat-panel oscilloscope for the maintenance and R & D industry. This oscilloscope has a real-time sampling rate of 1GSa/s and an analog bandwidth of 100MHz*2 . With complete trigger function (single/normal/automatic), it can be used freely for periodic analog signals or non-periodic digital signals; the built-in high-voltage protection module can tolerate a continuous voltage of up to 400V. Oscilloscope burnout accident caused by the probe being turned to the 10X position. Large time base scroll mode can monitor slow level changes; Equipped with highly efficient one-key AUTO, which can display the measured waveform without tedious adjustments; the display is equipped with a 7-inch 800*480 resolution high-definition LCD screen, and the operation method is capacitor screen touch + gesture operation, extremely convenient; cursor measurement function, you do not need to read the background scale unit and quantity when manually reading the amplitude and frequency parameters, and you can directly get the peak, peak and frequency without conversion; extremely convenient screenshot And waveform storage function, built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data, the storage process is simple and fast, save the current waveform anytime, anywhere with a single touch, no cumbersome prompts and choices, keep calm The current data is saved in the place, which is very convenient; the powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page turning, deletion and waveform zooming in, zooming out, moving, etc., to facilitate secondary analysis. The fuselage is equipped with a USB interface, which can be connected to a computer to share its screenshots with the computer, which is convenient for secondary analysis; Lissajous figures graphic display function can be used to determine the amplitude, frequency, and phase contrast of two groups of signals; Analysis of the harmonic components of the signal; built-in 6000mah high-quality lithium battery, which can last for 4 hours on a full charge, and can be used while charging like a notebook.

Features:

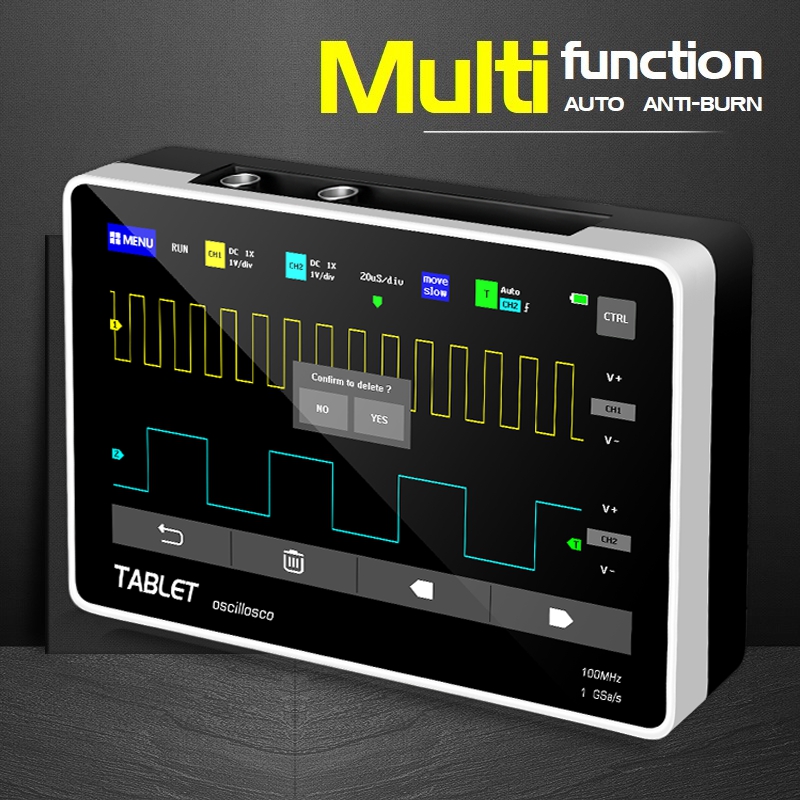

1. Intelligent anti-burn, 1X Can withstand up to 400V withstand voltage
2. 100MHz analog bandwidth at 1GSa/s sampling rate (1X = 5MHz, 10X = 100MHz)
3. Fully fit 7 inch 800*480 resolution color TFT LCD display with bright colors and high contrast
4. Capacitive touch screen, the same as the touch mode of modern mobile for iPad, is not a resistive touch screen with ancient nail operation
5. High measurement voltage range, 1X can measure 0~40 V, 10X can measure 0~400V，100X can measure 0~4000V
6. Up to 12 parameters measurement: VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty+, Duty-, Time+, Time-, Period

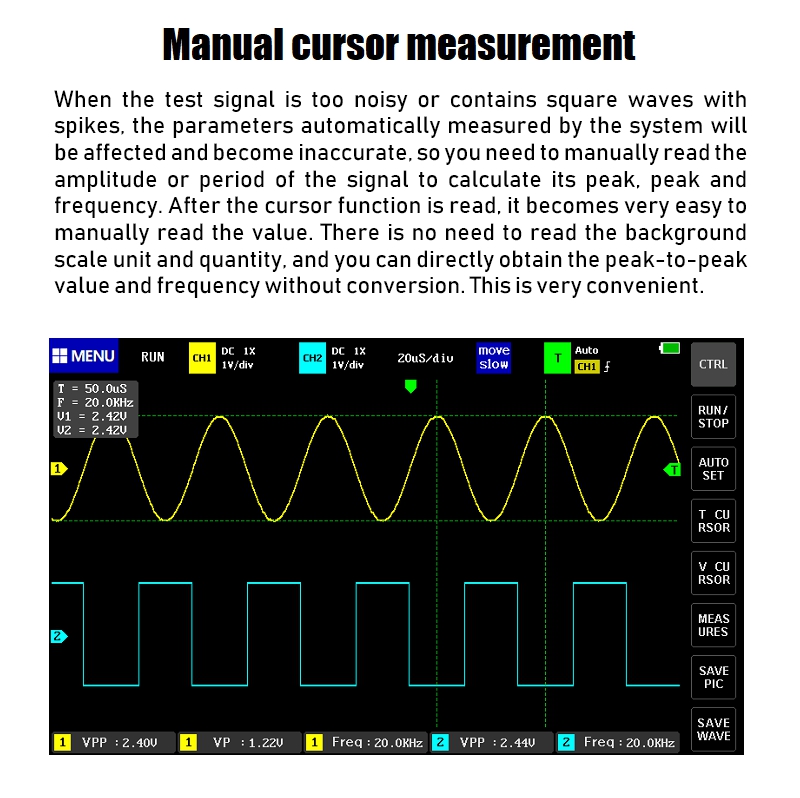

7. Cursor measurement function, it is convenient to manually measure the period and frequency and voltage

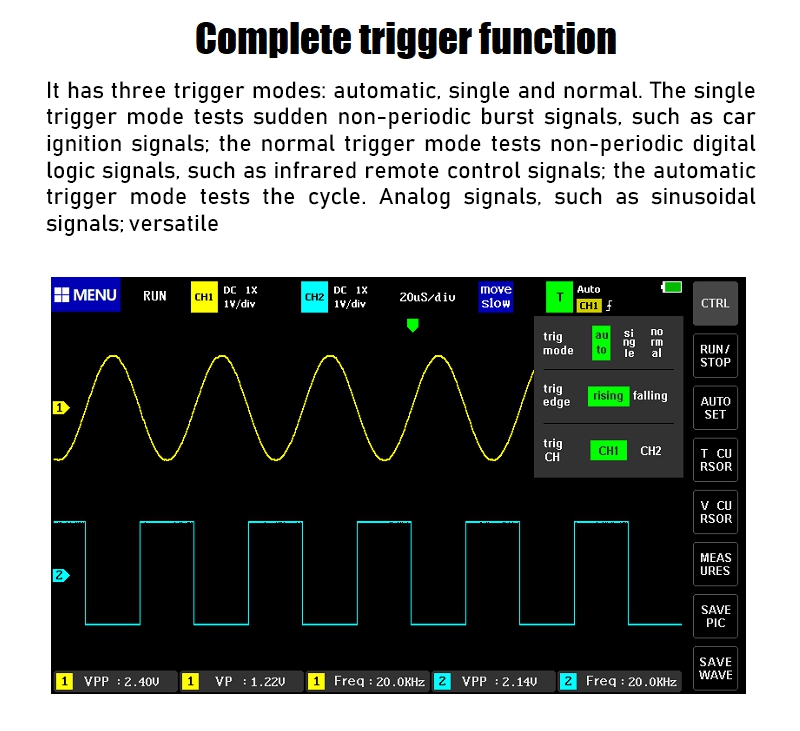

8. Complete triggering function (single, normal, automatic)
9. At any time, the waveform display (pause function) is frozen

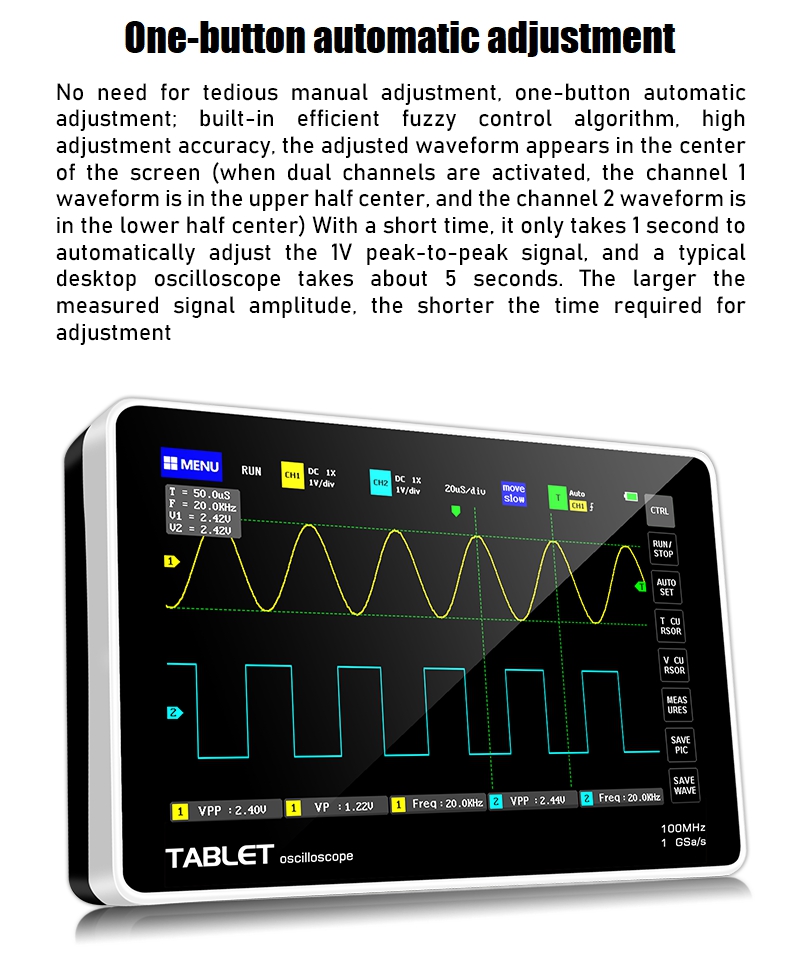

10. Equipped with high efficiency One-button AUTO

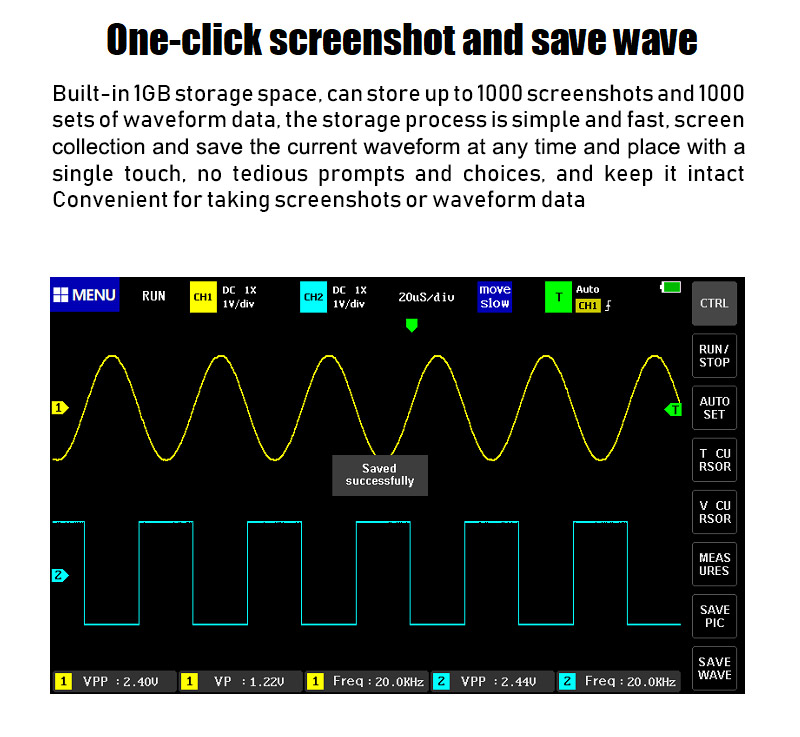

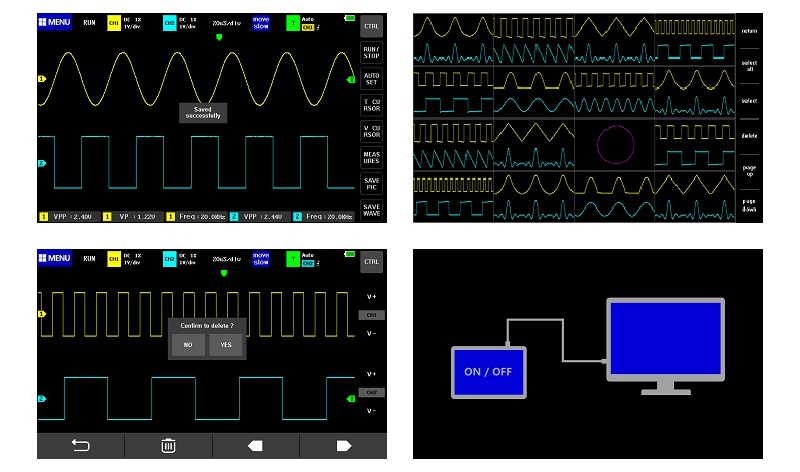

11. One-button waveform storage and screenshot
12. Built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data

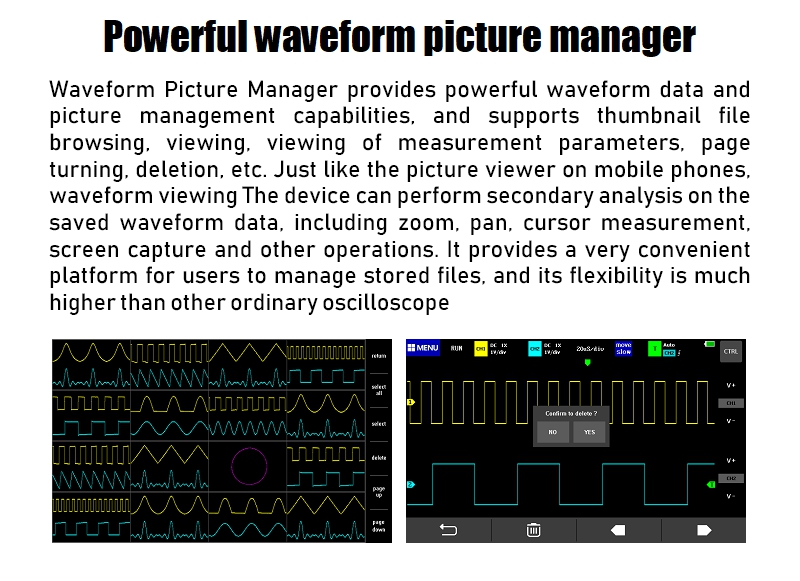

13. Powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page turning, deletion and waveform zooming in, zooming out, moving, etc.

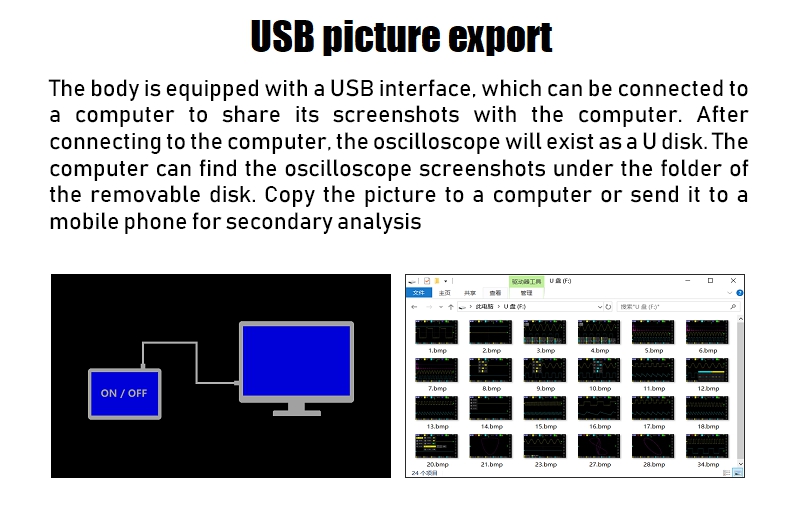

14. Equipped with a USB interface, which can be connected to a computer to share its screenshots with the computer, which is convenient for secondary analysis

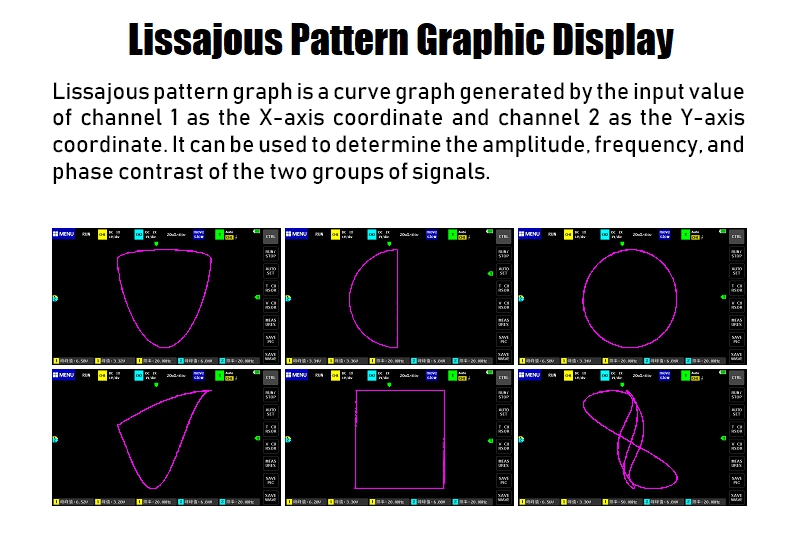

15. Lissajous figures graphic display function can be used to determine the amplitude, frequency, and phase contrast of two groups of signals
16. FFT display function, can analyze the spectral characteristics of the signal
17. Built in 6000mAh rechargeable lithium battery. Fully charged for 4 hours of continuous use at the highest screen brightness
18. Memory compression technology, waveform refresh screen does not flicker

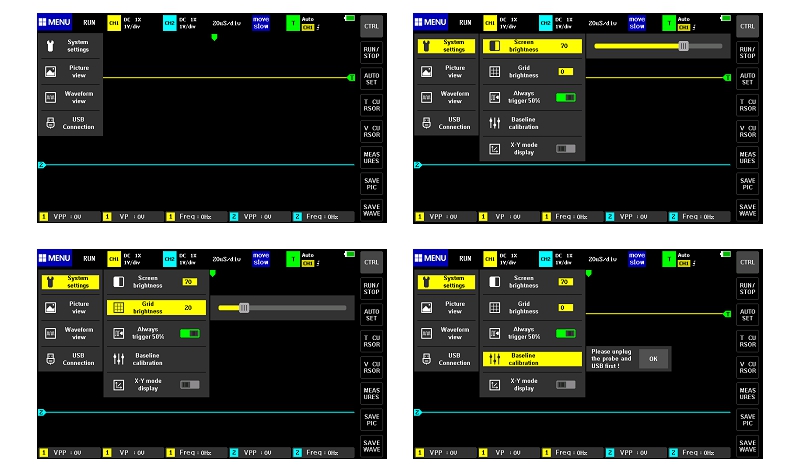

19. Screen brightness adjustment
20. Background grid brightness adjustment

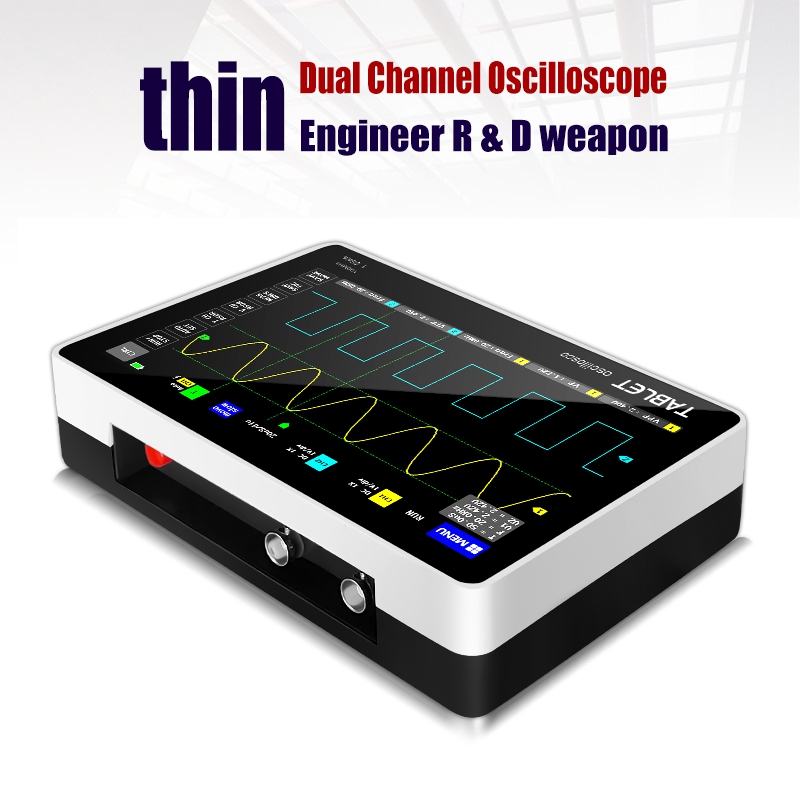

21. Ultra-thin, easy to carry

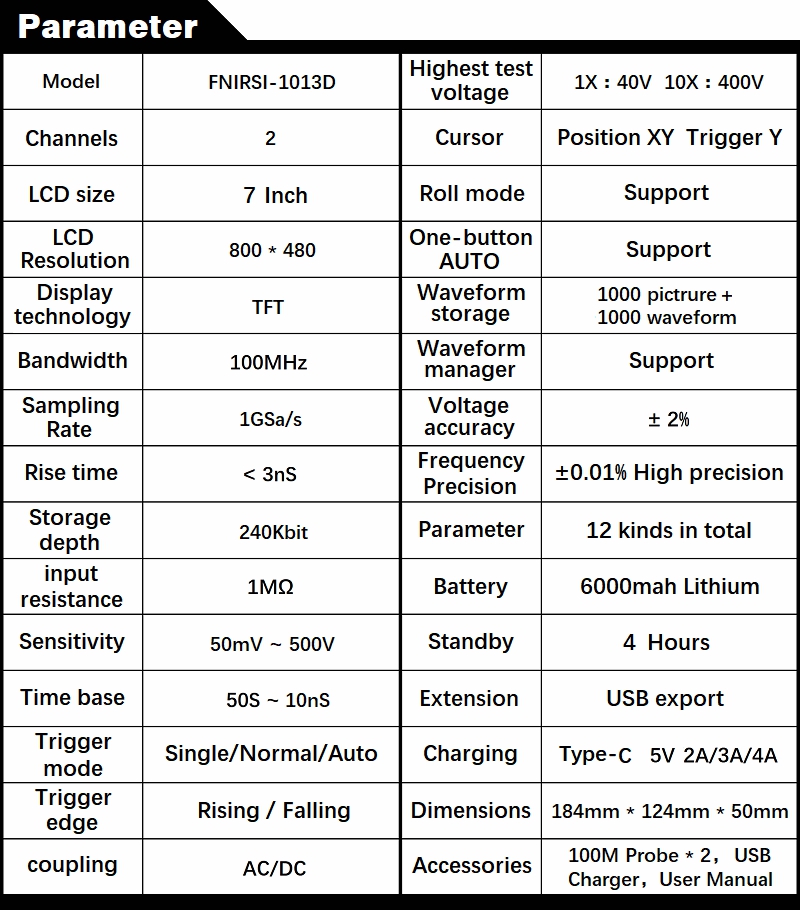

Specifications:
- Analog band width: 100MHz * 2

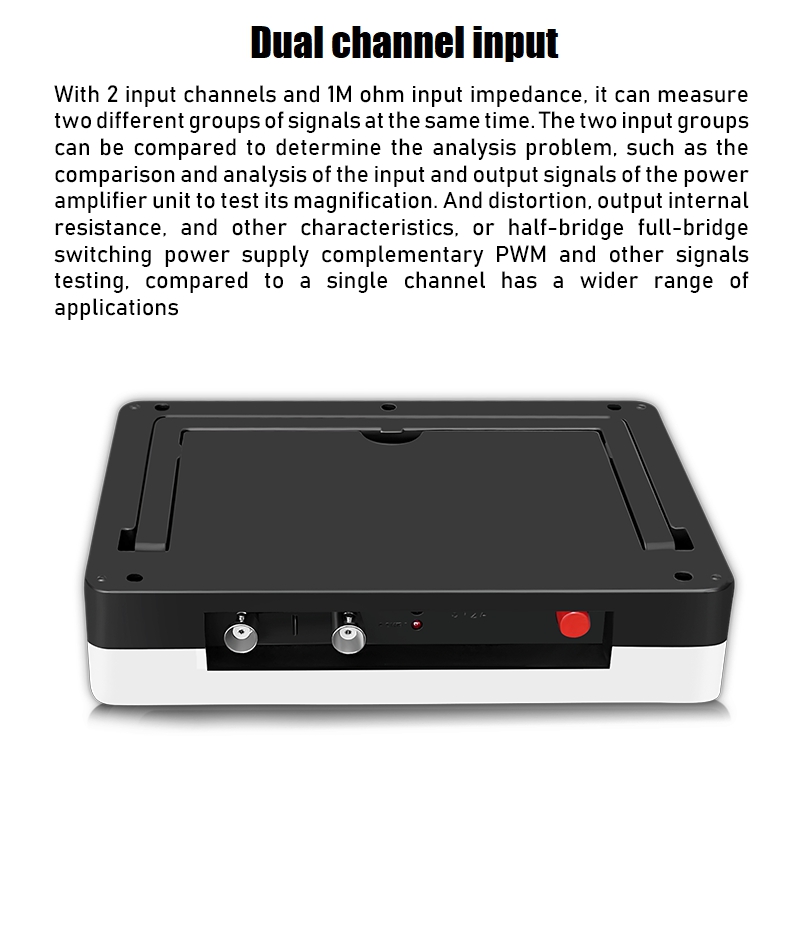

- Number of channels: 2 channels
- Maximum real time sampling rate: 1GSa/s
- Vertical sensitivity: 50 mV/div~500 V/div
- Horizontal time base range: 50S/div~10nS/div
- Maximum test voltage: 40 V (1X probe), 400 V (10X probe)
- Storage depth: 240Kbit
- Input resistance: 1M
- ADC precision: 8bits
- Coupling mode: AC/DC
- Trigger mode: Single, Normal, Automatic
- Trigger edge: Rising edge/Falling edge
- External trigger voltage 0-40 V
- Display: 7 inch, 800*480
- Operating: Capacitive touch screen + gesture
- Extension ports: USB picture export
- Power supply: 6000mAh lithium battery
- Size: 184mm x 124mm x 50mm
- Total weight:650g

Package Included:
- 1 x Set of Oscilloscope For FNIRSI-1013D
