Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $60.55 | $59.32 | $57.46 | $54.99 | Contact US |

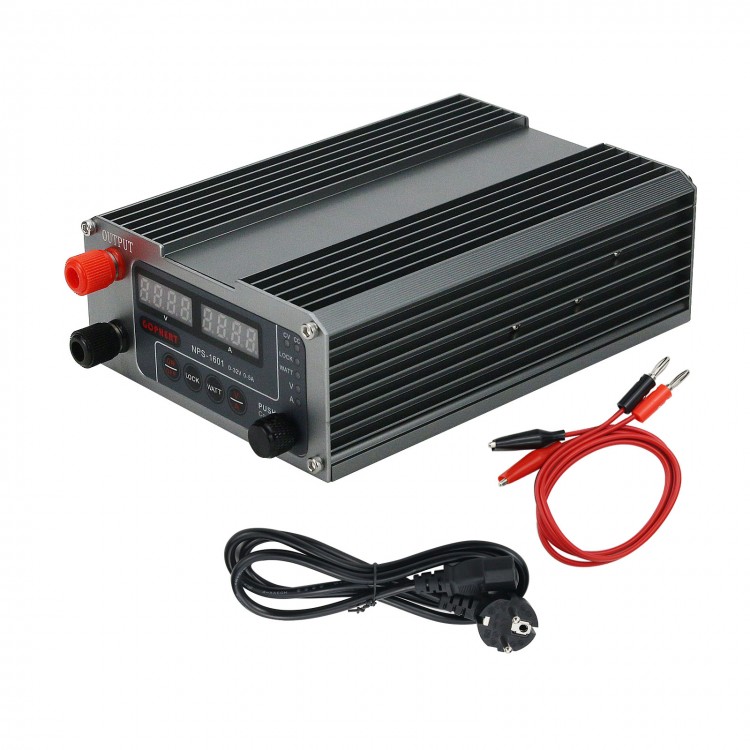

For Gophert NPS-1601 DC Regulated Power Supply 0-32V 0-5A Digital Adjustable DC Power Supply
Specification:
Operation Voltage Range: 198-264Vac/100-144Vac
Operation Frequency Range: 45-65HZ
Output Voltage Range: 0-60V
Output Current Range: 0-3A
Efficiency (220Vac/full load): ≥87%
Full Load Input Current (220Vac): ≤1.4A
No Load Input Current (220V): ≤80mA
Volt Meter Accuracy: ≤0.1% + 2 digits
Amp Meter Accuracy: ≤0.1% + 3 digits
Constant Voltage:
Load Regulation (0-100%): ≤30mV
Line Regulation(198-264Vac/100-144Vac): ≤ 5mV
Ripple & Noise (Peak-Peak): ≤ 10mV
Ripple & Noise (r.m.s): ≤ 2mV
Set Accuracy: ≤ 0.3% + 10mV
Transient Response Time (50%-100% Rated Load): ≤ 1.0ms
Constant Current:
Load Regulation (90%-10% Rated Voltage): ≤50mA
Line Regulation (198-264Vac/100-144Vac): ≤20mA
Current Ripple & Noise (Peak-Peak): ≤10mAp-p
Set Accuracy: ≤0.2% + 3mA
Size (width*height*depth): 120*50*180mm
Features:
-Output terminal is on the front panel, more convenient.
-With both lock and power display function (WATT).
-The voltage and current selection switch is a push-type switch, improved the reliability.
-The voltage and current setting and reading are more accurate, 4 digits display.
-The peak-to-peak value of ripple and noise is less than 30mV, and electromagnetic interference is smaller, comparable to linear power supplies.
-Zero overshoot (c.v mode and c.c mode), protect sensitive device.
-High efficiency >87%.
-Intelligent protection: Output short circuit protection, tracking over voltage protection (OVP), tracking over current protection(OCP), over temperature protection
-SMT components: reflow soldering process, higher reliability.
Package List:
1 x Regulated Power Supply
