FUTABA 14SG 14-CH 2.4GHz Heli Radio/Transmitter with R7008SB Receiver

FUTABA 14SG 14-CH 2.4GHz Heli Radio/Transmitter with R7008SB Receiver

Description:
This is a Nickel-hydrogen type 14SG standard version with left stick control throttle.

Futaba proudly presents the new 14SG, the ultimate 14-channel system using groundbreaking 2.4GHz FASSTest technology. It is also compatible with Futaba FASST and S-FHSS protocols, which allows you to fly with almost every 2.4GHz air receiver Futaba produces.

The 14SG be able to transmit plus receive telemetry data. Install Futaba telemetry sensors (sold separately) to handle flight data, receive alerts when in flight and much more. Helicopter pilots will like the 14SG's 3-axis gyro support — that will make the new 14SG an ideal system designed for flybarless flight!

The improvements do not stop there. Turn the 14SG over, and you will see the engineering is as rock-solid as any other Futaba system. It is also very comfortable to use, as a result of rubber grips that really help reduce flyer fatigue — an additional benefit ensure that pilots will appreciate.

Package Included:
- 1 x 14-Channel 14SG Transmitter
- 1 x R7008SB Receiver
- 1 x Instructions
- 1 x Battery Charger

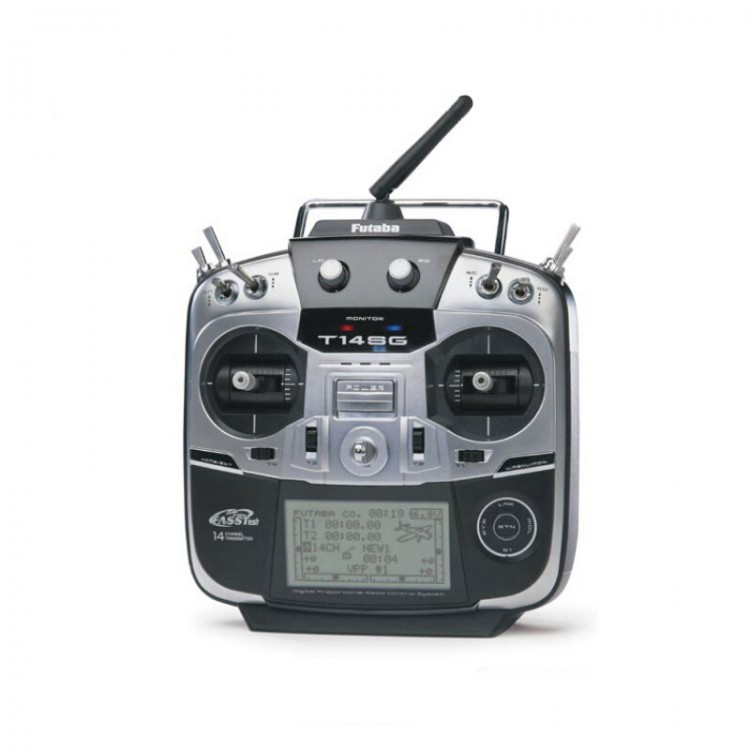

14-Channel 14SG Transmitter
Features:
- Channels: 12 proportional, 2 switched
- Compatible with FASSTest, FASST and S-FHSS protocols
- FASSTest telemetry – compatible with Futaba telemetry sensors (purchased separately)
- Free user-updatable software
- 30-model memory
- 10-character user naming
- 10-character model naming
- Airplane, helicopter and glider programming
- Large, 1.75” x 3” backlit LCD screen with 128 x 64 resolution
- SensorTouch™ programming
- Compatible with secure digital memory cards for external storage of model setups and software updates (32MB-2GB or HC (High-Capacity) 4GB-32GB)
- Left and right assignable slider switches
- Two assignable rotary knobs
- Six assignable three-position switches
- One assignable momentary two-position switch
- One assignable two-position switch
- Comfortable rubber grips on the sides and back
- Wide top switch spacing
- Adjustable stick tension
- Dual ball bearing gimbals
- 4 vibration warning types
- Home/Exit; User Menu/Servo Monitor buttons
- Audio earphone jack (for telemetry alarms)
- User stick calibration
- Trainer system
- Servo speed adjust
- 5 programmable mixes
- V-tail, Ailvator, winglet, motor mixing
- Trim mix
- Logic switch (condition switch only)
- Internal programmer for S.Bus servos

Specifications:
- Apply to: 4PK/4PL/T6J/T8J/14SG
- Voltage: 6.6V
- Capacity: 2250mAh
- Size: 77.1 x 41.5 x 16.8mm
- Weight: 100g

Note: Please note that 6V 1800mAh NiMH battery pack is not included in this package. Please purchase it by yourself. Thank you!

Futaba R7008SB S.Bus2 2.4GHz FASSTest Rx 14SG 18MZ
Description:
This is the Futaba R7008SB 2.4GHz FASSTest 8+ Channel High-Voltage ReceiverR7008SB Receiver
for the 18MZ Radio System.

Features:
- Bi-directional communication with a FASSTest Futaba transmitter using the S.Bus2 port
- Multiple optional telemetry sensors may be connected to the S.Bus2 port and the data displayed on the transmitter
- Includes both standard PWM output ports and S.Bus output ports
- External voltage port, 0-70V DC
- The External Voltage connector needed for this is:
- FUTM5551 CA-RVIN-700 EX VLT CBL

INCLUDES: Futaba R7008SB 2.4GHz FASSTest Receiver with Instructions

Specifications:
- Receiving Frequency: 2.4GHz FASSTest system
- Power Requirement: 3.7 - 7.4V (voltage range 3.5 - 8.4V)
- Current drain: 75mA
- External voltage Port: 0 - 70V DC
- Size: 0.98 x 1.9 x 0.56" (24.9 x 47.3 x 14.3mm)
- Weight: 0.38oz (10.9g)
