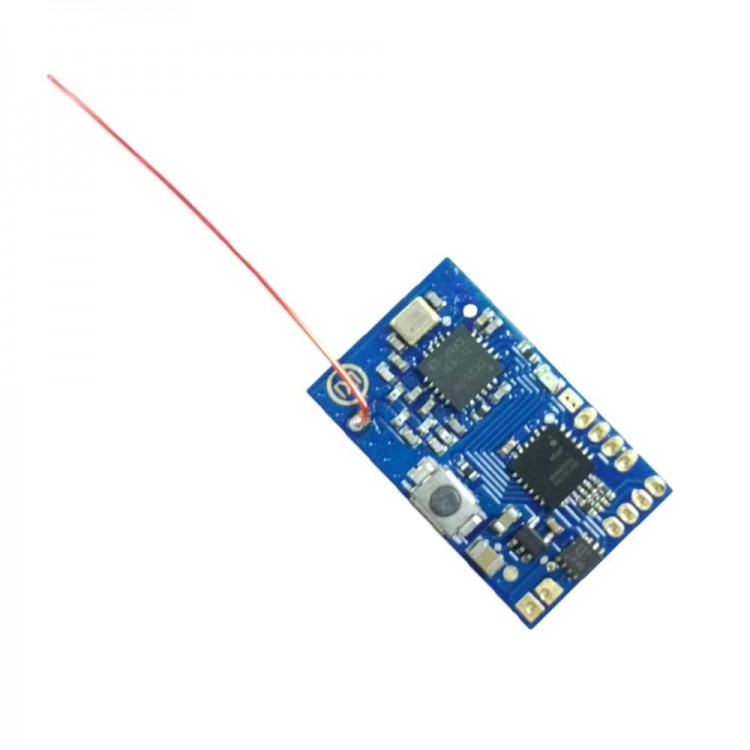

FUTABA SFHSS 8CH 2.4Ghz RC Micro Receiver with PPM Output 8CH PPM Built in Brushed ESC for FPV Quadcopter Drone

Availability: In stock, usually dispatched in 1 business day

  • Price:$22.58
  • Price in reward points: 226 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $22.13 $21.68 $21.00 $20.10 Contact US
Quantity:

FUTABA SFHSS 8CH 2.4Ghz RC Micro Receiver with PPM Output 8CH PPM Built in Brushed ESC for FPV Quadcopter Drone

Description:

- Item Name: FUTABA SFHSS8CH Micro RC Receiver
- Channels: 8 channels (8 channels PPM)
- 1.8A Bi-Directional Brushed Motor Driver controlled by throttle channel
- Receiving Sensitivity: -99dBm
- Frequency Range: 2.4-2.48GHz
- Power: 3.7-5V DC
- Weight: 0.82g
- Antenna Length: 30mm
- Size: 21mm*13mm*2.5mm
- Color: Blue

Signal Output:
- CH1-CH8 output normal PWM signal
- When CH8 is connected to GND, CH1 output 8 channel PPM signal
- 1.8A Bi-Directional Brushed Motor Driver controlled by throttle channel (Channel 3)

Bind and Failsafe:
Power on the transmitter and receiver. Adjust transmitter’s each channel to the exact position you want to have in failsafe mode. Transmitter set to pair mode. Receiver ‘s led should be on. Long press the pair button. After around 2 seconds the LED will turn to fast flashing first then turn to on status again. Now the pairing is done and the failsafe data is saved. Power off the transmitter and receiver then power on again then the receiver will work.

Package Included:
- 1 x  FUTABA SFHSS8CH Micro Receiver
