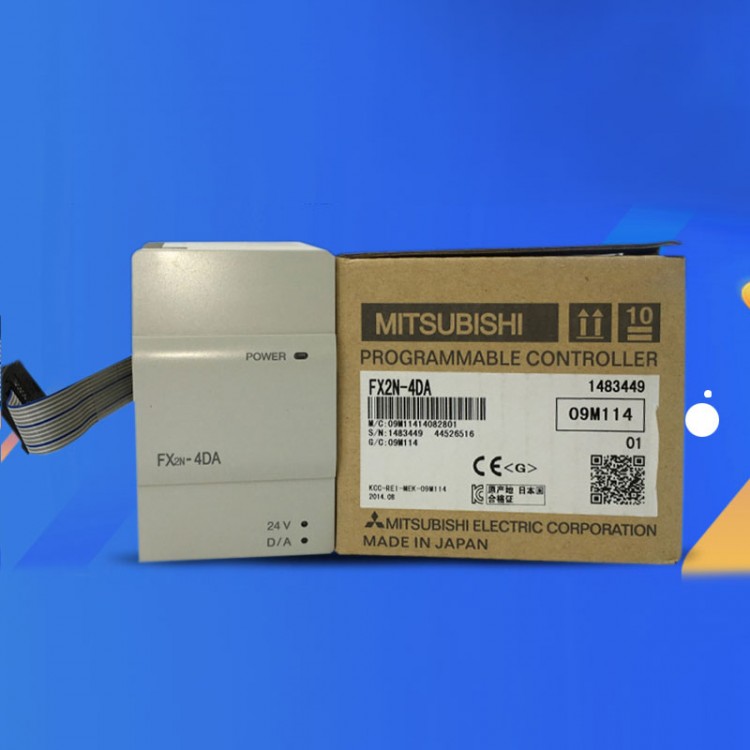

FX2N-4DA PLC Programmable Controller 4-Channel Analog Input for Mitsubishi
Features:
- The Mitsubishi FX2N-4DA has 4 output channels.
- Provides 12-bit digital input with high precision resolution.
- The conversion speed is 2.1ms/4 channels, and the number of channels used does not change the conversion speed. The output can be in the form of a voltage or a current. It depends on the wiring.
- When the voltage is output, the output signals of the two analog output channels are 0~10V DC, 0~5V DC; the current output is 4~20mA DC. The resolution is 2.5mV (0~10V DC) and 4uA (4~20mA).
- Digital to analog conversion characteristics can be adjusted.
- This module takes up 8 I/O points.
- Applicable to FX1N, FX2N, FX2N sub-series. Other features are similar to the FX2N-2DA.
- Data communication between the programmable controller base unit and the FX2N-4DA is also performed by the FROM/TO instruction. The read and write operations operate on the buffer register BFM of the FX2N-4DA. The buffer area consists of 32 16-bit registers numbered BFM#0 to #31.
Package Included:
- 1 x FX2N-4DA PLC Programmable Controller
