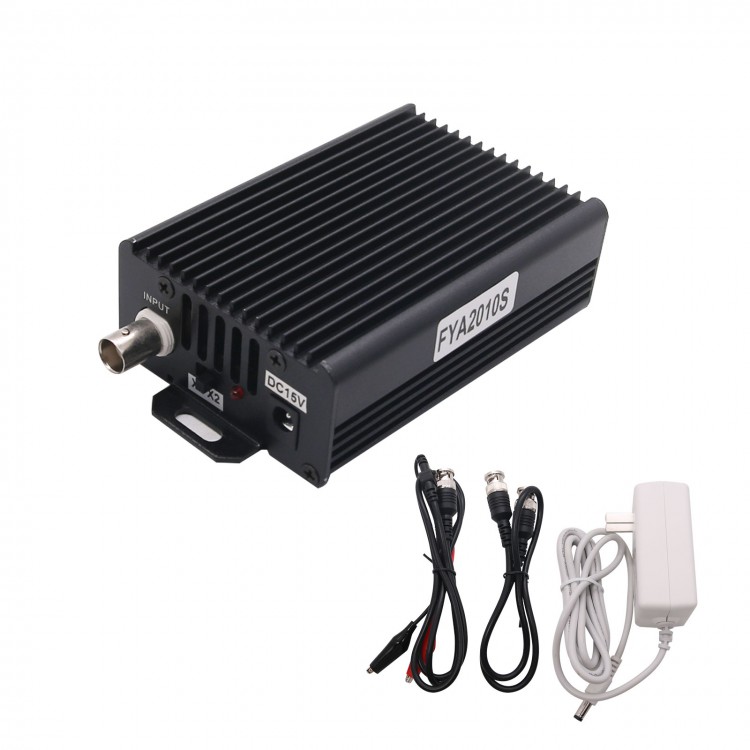

FYA2010S Signal Power Amplifier For Digital DDS Function Signal Generator Low Distortion 1MHz
Description:
DC power amplifier adopts imported integrated components. Features full-band amplification in DC-1MHz: various signal wave forms such as sine wave, square wave, pulse wave, sawtooth wave, reverse sawtooth wave, triangle wave, ECG wave, saddle wave and noise wave. It can stably output a power signal greater than 20W.
Features:
- Maximum amplified signal frequency: DC-1MHz
- Low distortion, high precision signal amplification, compatible with all DDS signals
- Output voltage up to 28V (±14V)
- Output current: 1000mA (MAX), max. output power 20W
- Magnification X2, X4 optional
-≥500V/us slew rate
- DC15V power supply
- Input impedance: 10KΩ
- Exquisite aluminum alloy shell, strong heat dissipation, stable and reliable performance
- Amplified signal: function signal and arbitrary waveform signal
- Small size, easy to carry
Parameters:
Applications:
- Electronic test and design
- Sensor simulation and test
- Power device and circuit driving
- Education and training
- Selection and testing of piezoelectric components
Package Included:
- 1 x Power Amplifier
- 1 x Power Cable
- 1 x BNC-BNC Cable
- 1 x Q9 Clip Cable
Note:
- Please operate the equipment following the user manual.
- Please check the power supply before using this product, to ensure normal use and personal safety.
- Please not change the circuit of this item arbitrarily to avoid damage to the equipment.
