G60 Dual Mode GPS + Beidou Positioning Module High Precision GNSS Assistance Positioning for Robot with Metal Case

G60 Dual Mode GPS + Beidou Positioning Module High Precision GNSS Assistance Positioning for Robot with Metal Case

Description:
- G60 is a high-precision GPS module based on ATGM336H-5N, supporting for BDS/GPS/QZSS/GLONASS joint positioning with a positioning accuracy less than 2.5M. It has the advantages of small size, high sensitivity, low cost, and easy to use, which is suitable for outdoor positioning and navigation, maker DIY, etc.

Features:
- High sensitivity, 32 channels, supporting single system positioning for BDS/GPS/QZSS/GLONASS satellite navigation system, as well as any combination of multi-system joint positioning.
- The all metal shell has a beautiful and textured appearance, while ensuring good heat dissipation performance; And it can work stably for a long time.
- Type-C interface
- Application: outdoor positioning, track record, autonomous driving, UAV drone

Specification:
- Signal receiving: for BDS/GPS/QZSS/GLONASS
- Cold start TTFF: <=32s
- Warm start TTFF: <=1s
- Positioning precision: <2.5m (CEP50)
- Positioning refresh rate: 1Hz by default, maximum 10Hz
- Serial port characteristics: 4800bps - 115200bps baud rate range, 9600bps by default; 8 data bits; no parity; 1 stop bit
- Protocol: for NMEA0183
- Power supply: 5V
- Working temperature: -40℃ ~ 85℃

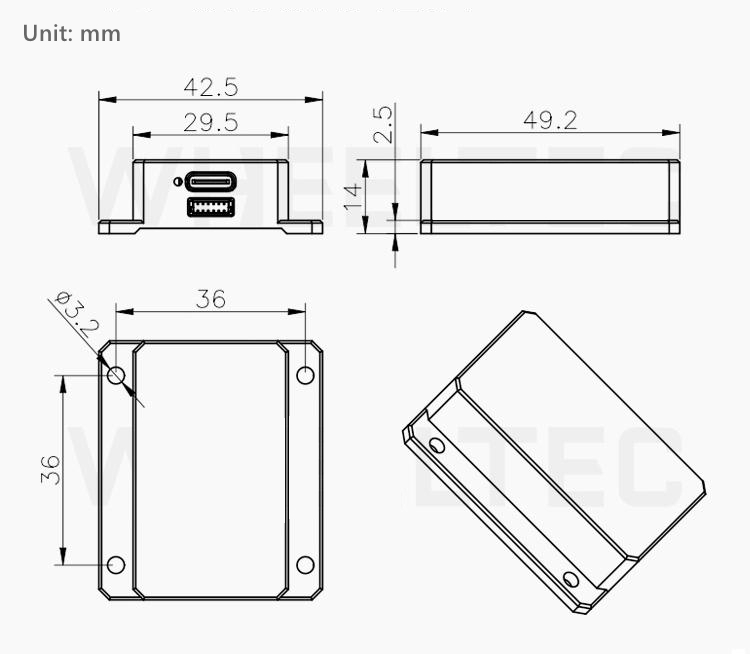

- Size: 49.2 x 42.5 x 14mm
- Weight: 28g

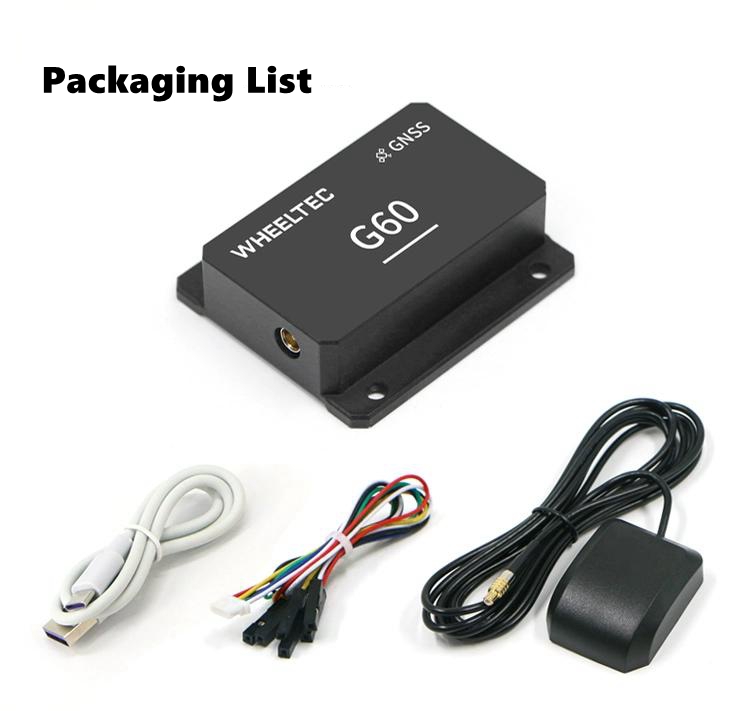

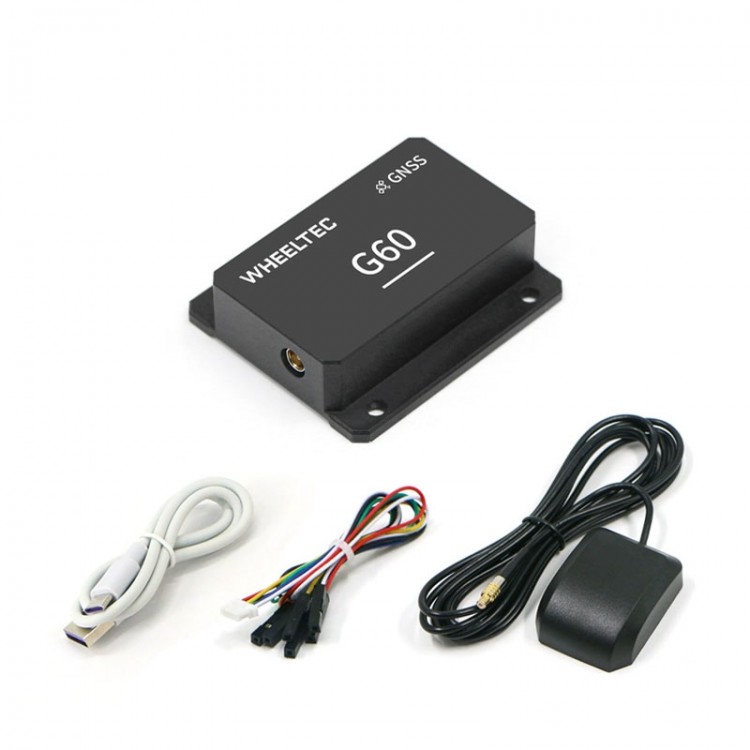

Package Included:
- 1 x Module (with case)
- 1 x for Beidou + GPS Portable Antenna
- 1 x for DuPont 1.0P to 6P Cable
- 1 x USB Cable

Note:
- Please contact our customer service to get the related resources (such as user manual and software tools) after receiving the product.
