Description:
As an essential device of IoT serial products, the AB BLE Gateway V4 is used to collect the advertising signal of the BLE Bluetooth devices, it can track any BLE devices, scan and forward real-time advertisement data from April beacons or 3rd Party Bluetooth devices. Report real-time proximity of any iBeacon, Eddystone beacons, and April beacons, and transmit beacons data to the local TCP server or Internet HTTP/MOTT server. The AB BLE Gateway V4 itself does not have the function of data parsing. It can only collect the advertised data of the BLE Bluetooth device and then upload the data to the server.

The Bluetooth gateway V4 can collect data include MAC address, UUID, Major, Minor, RSSI. Users can configure the transmit period and server information through a simple HTTP API.

Technical Specifications:
Construction:
- Model: AB BLE Gateway V4
- Material: ABS Plastic Housing
- Form Factor: BLE & WiFi Gateway
- Weight: 102g/0.2lb
- Power Source: 5V/2A Micro USB & PoE Interface
- Flash: 4 MB
- Recommended Operating Temperature: -20°C to +60°C

Features:
- Programmable: √
- Beacon Data Upload: √
- Multiple Wireless Protocols: √
- 3rd Party Beacons Supported: √
- Cloud Integration Available: √
- External Antenna for BLE: √
- 3rd Party Application Supported: √
- Including Wifi and Ethernet Port: √
- OTA Firmware Updates: √
- Ready to Customize: √

Bluetooth Specs:
- Controller Chip: nRF52832
- Working Voltage: 1.8-3.6V
- Working Frequency: 2.402GHz-2.480GHz
- Receiver Sensitivity: -96 dBm
- Transmit Rate: 1Mbps
- Antenna: External Antenna
- Collection Range: 50m/164ft

WiFi Specs:
- Controller Chip: ESP32
- WiFi Protocol: 802.11b/g/n/e/i (802.11n, Up to 150Mbps)
- Frequency: 2.4 GHz
- Transmit Power: at 802.11dB + 20 dBm; at 802.11n + 14 dBm
- Transmit Rate: Up to 150Mbps
- Antenna: PCB Antenna
- Collection Range: 100m/328.1ft
- Upload Maximum: 150 advertising data per second with WiFi connection

Ethernet Port:
- Work pattern: Full-Duplex 10-BASE-T(10Mbps), 100BASE-TX Transceiver (100Mbps)
- PoE: 15W IEEE 802.3 af
- Upload Maximum: 210 advertising data per second with Ethernet wire

Product Advantages:
- Programmable: Custom Your Own Gateway. It's Acceptable For The AB BLE Gateway V4 To Burn The Firmware Program Developed By Yourself
- Multiple Wireless Protocols (WebSocket, MQTT, HTTP): Multiple Wireless Protocols are supported by AB BLE Gateway V4, Include WebSocket, MQTT, HTTP
- Bluetooth 5.0 Low Energy: AB BLE Gateway V4 Adopts Bluetooth 5.0 Low Energy Technology
- External Antenna for BLE: Powerful Coverage With External Antenna. The External omni-Directional Antenna Allows BLE Signals To Reach Distances Up To 100m/328.1ft
- USB and PoE Power Supply: Multi-Access To Supply Power. The AB BLE Gateway V4 Get The Power From The USB And PoE Port
- Product Compliance: To Meet Your Market Requirements. FCCID: 2ACAL-ABBG0004; CE No.: ATSZAWW190102008

Applications:
- iBeacon/Eddystone/tag receiver for location tracking
- BLE sensor reader for sensor network
- Building automation
- Health and wellness monitoring
- Cycling, biking
- Security
- Location tracking
- Access management
- Advertisement
- Industrial automation
- Indoor Location
- Meeting sign in
- Check in
- Parking & Checking in
- Home automation

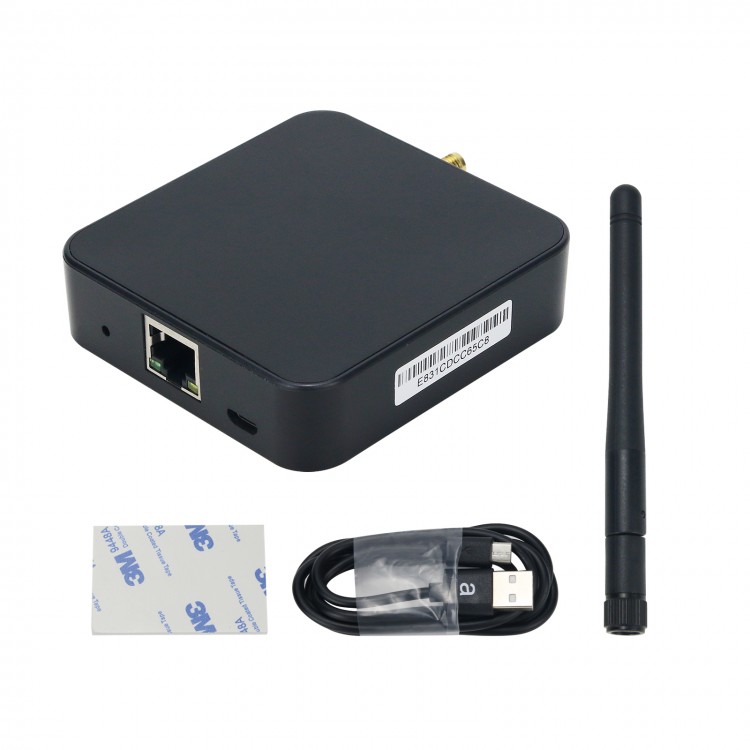

Package Included:
- 1 x Gateway Main Unit
- 1 x Antenna
- 1 x Power Cable

Note:
- Power adapter is not included. 5V 2A power adapter is recommended.
