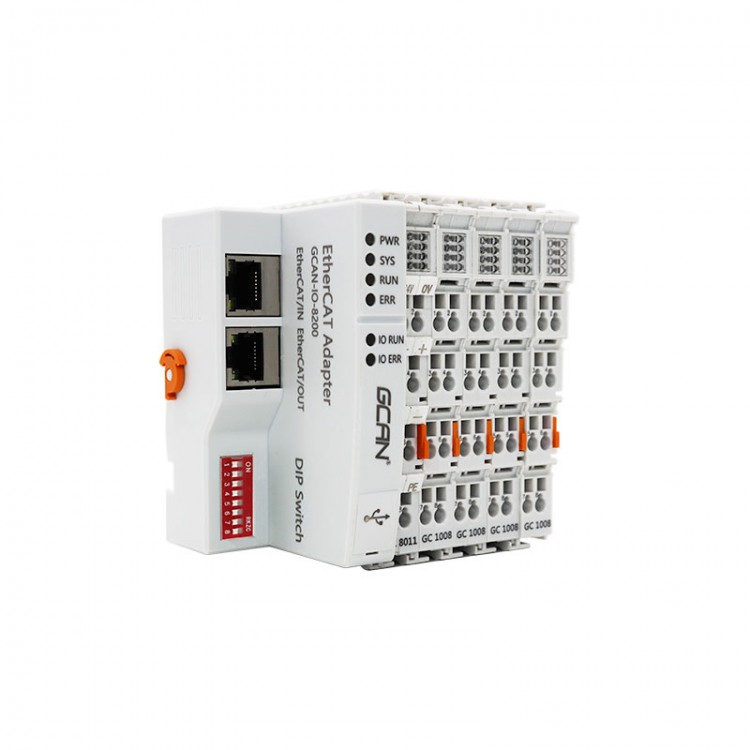

GCAN-IO-8200 EtherCAT Bus Coupler 100Mb/s High Performance Remote IO Module EtherCAT Slave Station for PLC Controller

GCAN-IO-8200 EtherCAT Bus Coupler 100Mb/s High Performance Remote IO Module EtherCAT Slave Station for PLC Controller

Description:
- Using GCAN-IO-8200 EtherCAT bus coupler and GC bus extension technology, I/O connections can be easily established, with a maximum of 32 input/output terminal modules connected. This series of IO module is particularly suitable for centralized control with multiple on-site points and signal types.
- The GCAN-IO-8200 EtherCAT bus coupler can be used as an EtherCAT slave station for Siemens 200SMART, 1200, 1500, 300 and other series PLCs.
- The GCAN-IO-8200 bus coupler can connect all bus terminal modules. For users, the processing method of analog input/output signals is no different from that of other types of signals. The information in the process image area of the controller is displayed in byte array format. The GCAN-IO-8200 bus coupler supports automatic configuration, so you don't need to set parameters on your PC.

Features:
- Two EtherCAT bus interfaces, EtherCAT/IN and EtherCAT/OUT (RJ45)
- Bus transmission rate: 100Mbps
- Bus transmission distance (distance between stations): 100m
- The maximum number of bus terminal modules is 32
- The configuration method is configured according to the order of IO chip insertion
- The power supply adopts 24V DC (-15%/+20%)
- Current consumption is about 360mA
- Provide a maximum current of approximately 740mA for subsequent IO power supply
- Electrical isolation is 1500 Vrms
- Working temperature range: -40 ℃ ~ +85 ℃
- Dimensions: 100mm x 69mm x 48mm

Applications:
- Connected to the distributed bus terminal module, forming a complete control node.
- Performing data collection and transmitting data using the EtherCAT protocol.

Specification:
- Connection method: 2 x RJ45
- Data transmission media: Ethernet CAT5 cable
- Transmission distance: 100m between stations
- Transmission speed rate: 100Mb/s
- Bus terminal module number: 32
- Field-bus maximum byte: 256 bytes input and output
- Configuration method: automatic configuration
- Power input: 24V DC (-15%/+20%)
- Current consumption: about 360mA
- Maximum power supply for subsequent IO: about 740mA
- Working temperature: -40℃ ~ +85℃
- Working humidity: 95%RH, non-condensing
- EMC testing: EN 55024:2011-09; EN 55022:2011-12
- Vibration/impact resistance performance: EN 60068-2-6/EN 60068-2-27/29
- Anti electromagnetic interference/anti electromagnetic radiation performance: EN 61000-6-2 /EN 61000-6-4
- Protection level: IP20
- Product size: 100mm x 69mm x 44mm
- Net weight: 100g

Package Included:
- 1 x IO Module
