Geekworm X1010 PCIe FFC to Standard PCIe x4 Slot Expansion Board for Raspberry Pi 5 & PCIe Devices
Description:
The X1010 is a PCIe FFC-to-standard PCIe x4 slot expansion board, designed to integrate various PCIe expansion cards such as graphics cards (GPUs), RAID cards, USB expansion cards, high-speed Ethernet cards, Wi-Fi cards, and SSDs.

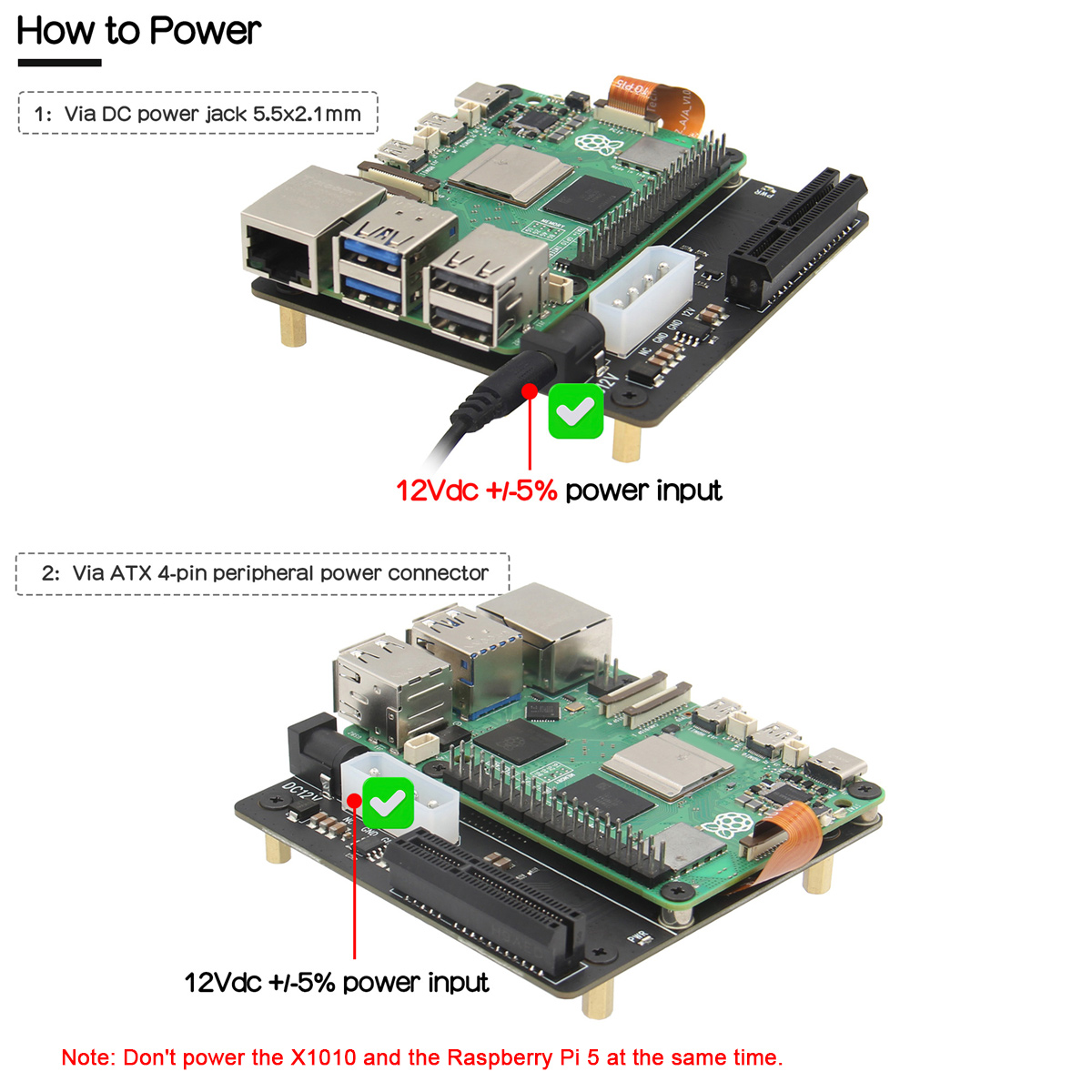

The X1010 offers multiple power input options, supporting 12V input either via a standard DC jack or an ATX 4-pin power connector. It is equipped with a high-efficiency DC/DC buck converter that supplies up to 5.5A to the Raspberry Pi 5 and delivers 3.3V at 5.5A for PCIe devices.
Features:
* Flexible power supply options via standard DC jack or ATX 4-pin peripheral power connector
* PCIe 2.0 x1 FFC connector links to a standard PCIe x4 slot, compatible with a wide range of PCIe expansion cards
* Supports installation of the official active cooler as well as third-party heatsinks
* Efficient power delivery to Raspberry Pi 5 through pogo pins, simplifying single power source supply
* Equipped with two high-efficiency DC/DC buck converters, each with a maximum output of 3.5A, providing stable power for your SSD

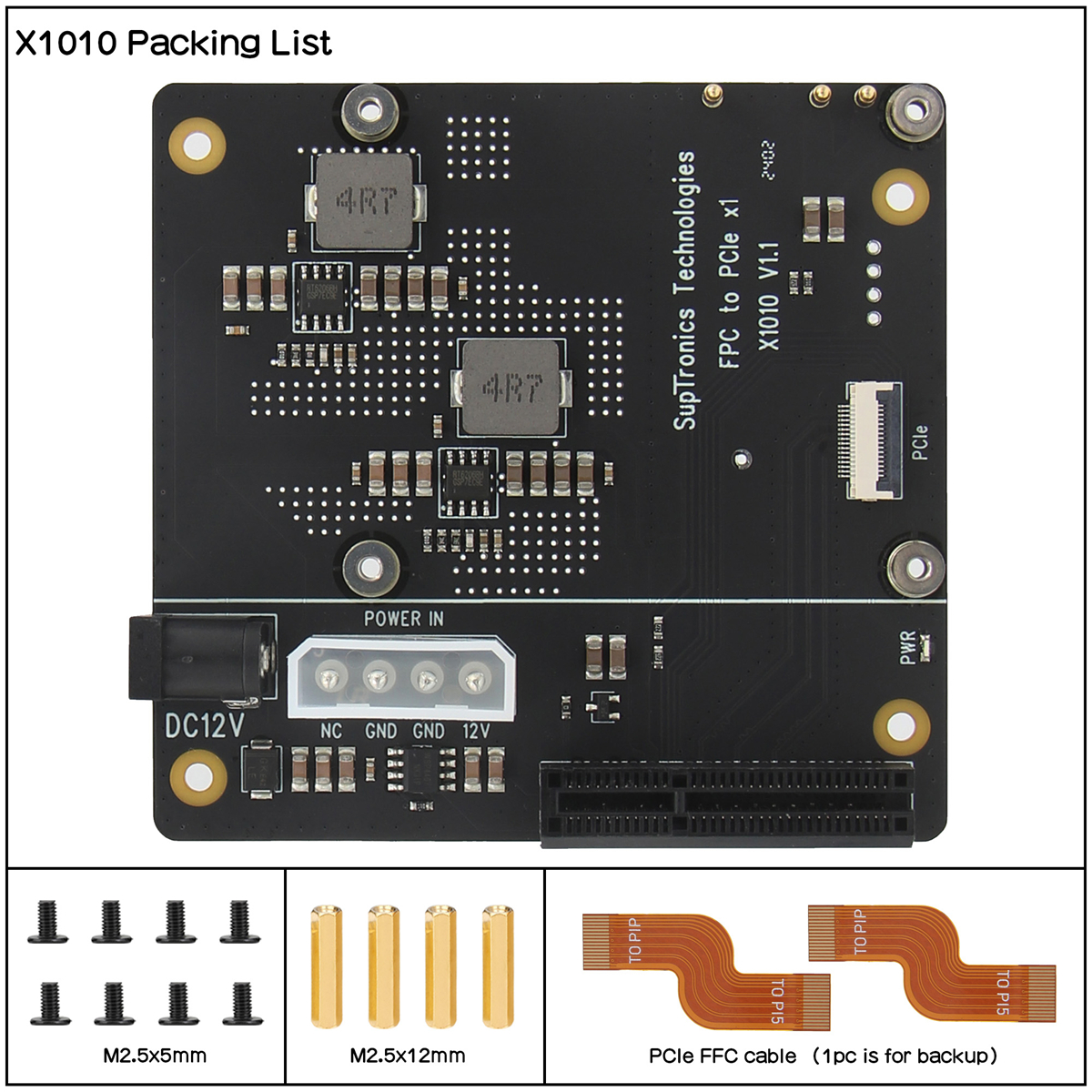

Packing List:
* 1 x X1010 V1.1 Expansion Board
* 8 x M2.5x5mm Screws
* 4 x M2.5x12mm F/F Spacers
* 2 x 37mm FFC cables (One FFC cable as a backup)
Packaging Details:
* Weight: 0.15kg
Note:
* The Raspberry Pi 5, active cooler and power adapter are not included.
User Manual:
https://wiki.geekworm.com/X1010
Firmware Update:
https://wiki.geekworm.com/How_to_update_eeprom_firmware
