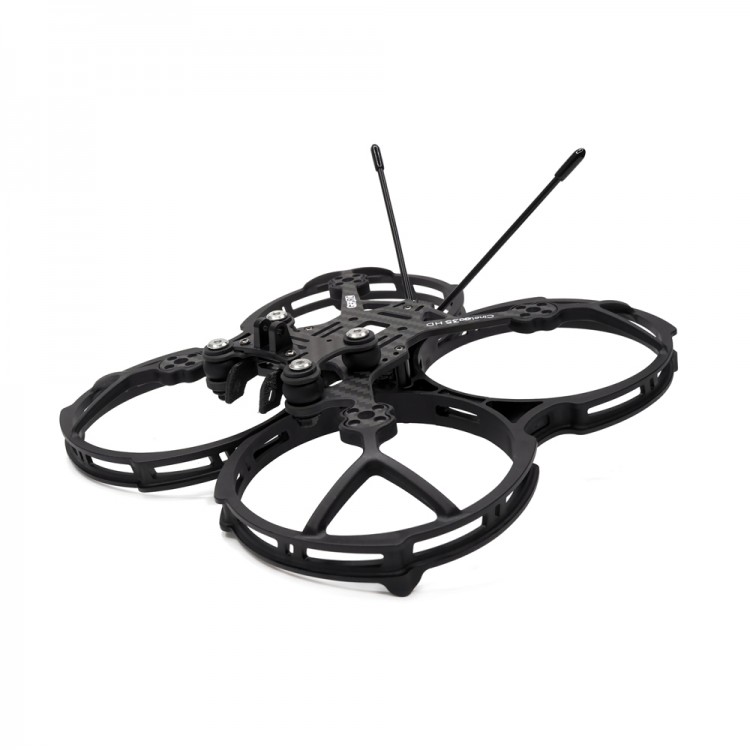

GEPRC Cinelog35 HD FPV Drone Frame with Integrated Propeller Guards Hollow Design (CL35 Frame)

Availability: In stock, usually dispatched in 1 business day

  • Price:$49.57
  • Price in reward points: 496 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $48.58 $47.59 $46.10 $44.12 Contact US
Quantity:

GEPRC Cinelog35 HD FPV Drone Frame with Integrated Propeller Guards Hollow Design (CL35 Frame)

Description:

The CineLog35 HD developed by GEPRC specifically for mounting full GoPro HD camera is now officially released, There are two versions are currently available: HD VISTA Nebula Pro and Analog.

CineLog35 is improved and developed on the basis of CineLog30. Integrated protection guard design, the overall structure is firmer and durable.We adopts latest FC with higher calculation speed and high efficiency, 4S version uses GEP-F722-35A AIO/6S version uses GEP-F722-45A AIO.The 5 UART Ports bring perfect performance and sufficient extended function. and the electronic system runs more stable.

CineLog35 equips with VISTA HD VTX and the Nebula Pro camera, and the picture quality is extreme clear and clean. Upgraded power system, 2004 motor with HQ DT90MMX3 propeller has stronger power output. It comes with a 3D Print mount to install the GoPro 9 & GoPro 10. and the Incidental base can carry Insta360 GO2 camera/ GEP Naked GoPro Hero 8/Caddx Peanut camera.

We are pursuing lighter weight, better flying feel, and more extended functions of Quad-copters. It can bring great visual experience and happiness to every pilot.

Features:
- Supports the installation of mainstream 26.5mm x 26.5mm AIO flight controllers
- 20mm x 20mm VTX holes can be used with VTX for VISTA
- 3.5" integrated propeller guards to ensure flight safety. New visual design, hollow noise reduction design enables quiet and safe flight
- Can install mainstream 14mm/19mm lens
- 3D printed parts can be used for GoPro8/9/10. And special base can be used for Naked GoPro8, Insta 360 GO2, and Caddx Peanut cameras
- 12 x 12mm holes can install motors such as 1507/1805/2004
- Support 3.5" propellers to provide strong power output
- Independent receiver cabin design: convenient and fast to make your receiver and transmitter worked on the same frequency

Specifications:
- Brand: GEPRC
- Frame: GEP-CL35
- Wheelbase: 142mm
- Top plate: 2.5mm
- Bottom plate: 2.0mm
- Arm plate: 3.5mm
- Flight control mounting hole: 26.5mm x 26.5mm
- VTX mounting hole: 20mm x 20mm
- Motor mounting holes: 12mm x 12mm
- Lens size: 14~19mm
- Inner diameter of propeller guard: 95mm
- Compatible propeller: 3.5"
- Dimensions: 203mm x 203mm x 42mm (including propeller guard)
- Weight: 103.7g (including propeller guard, 3D printed parts, and base for Naked GoPro 8)

Package Included:

1. Carbon fiber board:
- 1 x 2.5mm top plate
- 1 x 3.5mm plate
- 1 x 2.0mm base plate

2. Screw Pack:
- 4 x M2 spline nuts
- 4 x M2x3.5x25 mesh aluminum pillars
- 2 x M2x3 round head screws
- 28 x M2x7 round head screws
- 10 x M2x8 round head screws
- 2 x M2x8 round head screws with gasket
- 4 x M2x9 round head screws
- 9 x M2x12 cup head screws
- 4 x M2x16 cup head screws
- 5 x M2 rivet nuts
- 8 x M2 iron nuts
- 8 x M2 nylon nuts
- 4 x M2 self-tightening nuts
- 4 x M4 flange nuts
- 8 x M2x6.5 flight control shock-absorbing balls
- 8 x 15° AV shock-absorbing balls

3. Wire:
- 1 x XT30-7cm-18awg power cord
- 1 x 35V 220UF capacitor
- 1 x 6S Power cable for Naked GoPro
- 1 x 4S Power cable for Naked GoPro

4. 3D printed parts:
- 1 x 19x19mm lens mount
- 1 x VTX antenna fixture
- 1 x Lens protector
- 1 x Receiver fixture for Blacksheep
- 1 x Antenna fixture for Blacksheep

5. Injection moulded parts:
- 2 x 3.5" integrated propeller guards
- 1 x Base for Naked GoPro 8
- 4 x Motor wire hubs

6. Other Accessories:
- 2 x Anti-skid pads for battery (battery not included)
- 2 x Shock-absorbing feet pads
- 4 x EVA decorative cotton
- 2 x M15x200mm ties for battery (battery not included)
- 1 x L-shaped screwdriver 1.5mm
- 1 x L-shaped screwdriver 2.5mm
- 1 x M4 wrench
- 1 x Antenna mounting tube

Note:
- Batteries are not included.
