Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $108.24 | $106.03 | $102.72 | $98.30 | Contact US |

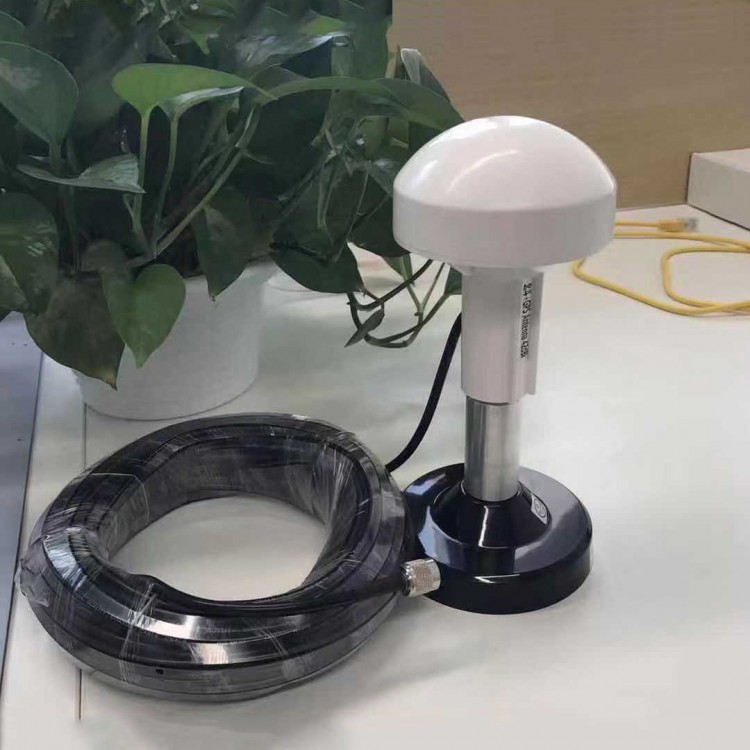

GPS Beidou GLONASS Galileo Antenna + Antenna Magnetic Mount TNC Connector
Specification:
Working voltage: 3-5V
Current: <20mA
Gain: 42dB±2dB
Impedance: 50Ω
Operating frequency: GPS L1 1575.42MHz; BD B1 1561 MHz; GLONASS G1 1602 MHz
Polarization mode: right circular polarization
VSWR: 2.0 max
Circular polarization axis ratio: <3dB
Noise figure: 2.0dB
Out-of-band suppression: fo=L1, B1, G1; fo±50MHz: 30 dB typ; fo±100MHz: 40 dB typ
Antenna shell material: engineering plastic
Size: 55.5*50.5*17.5mm
Connector form: TNC (inner screw inner needle)
Wire: SYV50-3
Feeder length: 10 meters
Whether with bracket: yes
Installation method: magnetic
Working temperature: -40℃~85℃
Storage temperature: -40℃~85℃
Working humidity: ≦95%
Package List:
1 x Antenna
1 x Magnetic Mount
