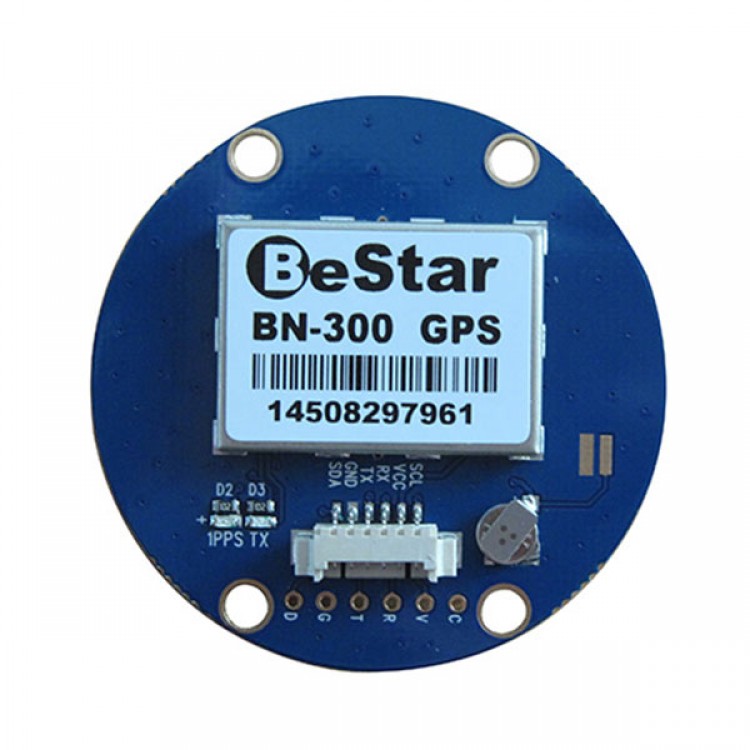

GPS BN-300+Electronic Compass HMC5883L AIO APM Pixhawk Flight Control UBLOX NEO-M8N Plan

Availability: Out Of Stock

  • Price:$48.33
  • Price in reward points: 483 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $47.36 $46.40 $44.95 $43.01 Contact US
Quantity:

GPS BN-300+Electronic Compass HMC5883L AIO APM Pixhawk Flight Control UBLOX NEO-M8N Plan

Description:

- TTL electrical level output, 9600 baud  rate, 1HZ output, standard NMEA-0183 agreement output, with compass ICHMC5883L
- Can customize baud rate: 4800, 9600, 38400, 19200, 115200
- Output agreement to choose: NMEA-0183 or UBX
- Customize output frequency: 1HZ-10HZ
- Size: 45*6MM

Specification:
- Power supply: DC voltage: 2.8V-6V, typical: 3.3V or 5.0V
- Consumption: acquisition: 50mA @5V
- Receiving format: GPS , GLONASS, Galileo, BeiDou, QZSS and SBAS
- Receiving channel: 72 searching channel
- Receiving sensitivity: cold start:  -167dBm, acquisition: -148dBm
- Positionig time: cold start: 26S    warm start: 25S    hot start: 3S
- Level positioning precision:    2m  at open wild
- Output frequency: 1HZ-10HZ, default 1HZ
- 1PPS precision: <1s,  pulse width: 100ms
- Acceleration precision: 0.1m/s
- Max height: 18000m
- Max speed: 515m/s
- Max acceleration: 4G
- UART interface: UART port: TXDA and RXDA
- Support Rate: 4800bps to 115200bps, default 9600bps
- UART is used for NMEA output
- Weight: 10g
- Working temp: -40---85degree
- Storage temp: -40----85degree
