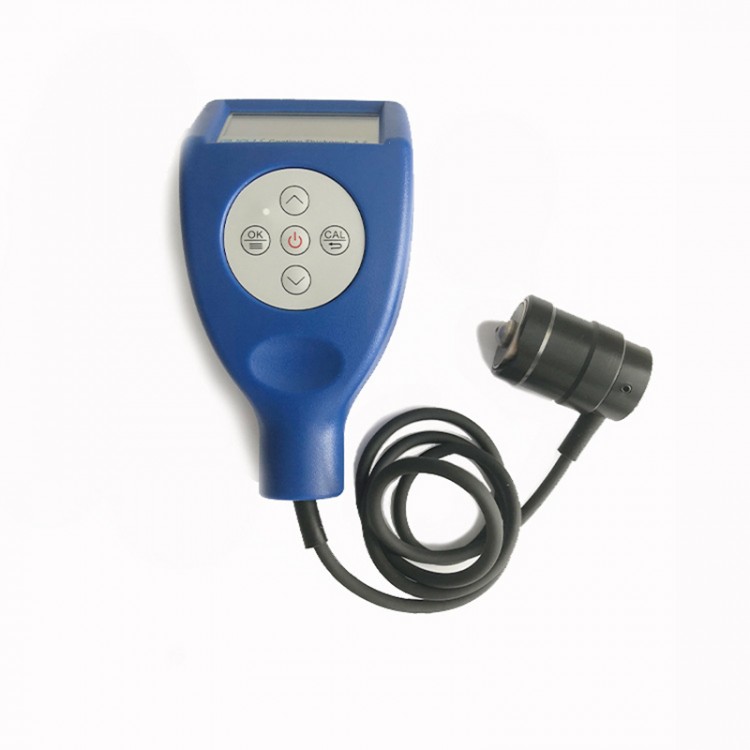

GTF10 0-10mm Anticorrosion Coating Thickness Gauge Pipe Paint Thickness Gauge Meter Digital Display
Description:
The large-scale coating thickness gauge is mainly used for fire-resistant coatings, pipeline anti-corrosion, anti-rust, ship anti-corrosion and embroidering.
Technical Parameters:
- Applicable occasions: non-magnetic coating on magnetic substrate
- Measuring range: 0~10000μm
- Resolution: 1μm (0~999.9μm), 1mm (1000μm ~10000μm)
- Minimum curved surface: convex 5mm/concave 5mm
- Minimum measurement area: 10 x 10mm
- Thinnest base: 0.4mm
- Use environment: temperature -10 to 50℃, humidity 10~85%RH
- Measurement accuracy error: zero-point calibration ±(1+5%H); multi-point calibration ±(1+5%H). H means coating thickness
Package Included:
- 1 x Set of Coating Thickness Gauge
