H.265 Encoder H.264 HDMI Video Encoder 1920x1080 FHD 1080P For HLS Multicast SRT Live Broadcast XE5

H.265 Encoder H.264 HDMI Video Encoder 1920x1080 FHD 1080P For HLS Multicast SRT Live Broadcast XE5

Encoder Upgrade Package Download Address:
pan.baidu.com/s/1kVyGylL
Upload the up.rar file and restore the factory settings after the upgrade is successful!

Advantages:
- The device itself delays 80-200ms
- Support for standard RTMP protocol live broadcast
- Video screen can add LOGO, scrolling text
- H.265/H.264/MJPEG video encoding

Features:
- Support for TS, HLS, RTSP, RTMP, FLV, ONVIF, multicast
- Support multi-stream output
- Support the highest resolution 1920x1080
- Support OSD settings, system upgrading and system reset
- Coding frame rate 5-60 adjustable
- Support for ONVIF protocol for Hikvision & Dahua NVR. 7*24 hours stable operation

Specifications:
Audio Video Input:
- Video Input: 1-way HDMI
- Audio Input: 1-way HDMI built-in audio

Video Encoding:
- Encoding type: H.264/H.265/MJPEG optional
- Encoding frame rate: 5-60 adjustable
- Key frame interval (frame): 5-300 adjustable
- Bit rate (kbit): 32-32000 adjustable
- Resolution after encoding: 1920x1080/1680x1056/1280x720/1024x576/850x480/720x576/720x540/720x480/720x404/704x576/640x480/640x360/608x448/544x480/480x480/480x384/480x360/480x320/480x272/480x270/400x320/400x224/352x480/352x228/320x256/320x240/320x180/240x180/176x144/same as input resolution
- H.264 level: baseline profile/main profile/high profile
- Stream control: CBR/VBR optional
- Streaming: Support for RTMP/ RTSP/HTTP TS/HTTP FLV/HLS/UDP multicast/RTP multicast/SRT

Audio Encoding:
- Encoding sampling rate: 44100/48000 optional
- Coding method: AAC+/AAC++/MP3/MP2/AC3 optional
- Encoding bit rate: AAC: 48000-320000 adjustable/AAC+: 24000-48000 adjustable/AAC++: 12000-32000 adjustable/MP3: 64000-320000 adjustable/MP2: 64000-320000 adjustable/AC3: 40000-640000 available Tune
- Digital volume: -50 to 50 adjustable
- RTSP stream uses G711A encoding: disabled/enabled optional

OSD:
- Transparency: 0-128 adjustable
- Type: Text/Picture/Scrolling Text
- Area: 4 areas available
- X coordinate: 0-1920
- Y coordinate: 0-1080
- LOGO: Can upload 4 LOGO for selection
- Font size: 8-72
- Background color: transparent/white/black
- Font color: RGB color optional

General:
- Network: Gigabit
- Configuration management: configuration management via WEB
- For ONVIF: Support for ONVIF to find and browse videos
- Power supply: 12V/DC, 2A
- Power consumption: 4W
- Working temperature: -20℃ to 60℃
- Working humidity: < 90%, non-condension
- Product Size: 10.4 x 10.3 x 2.8 cm

Package Included:

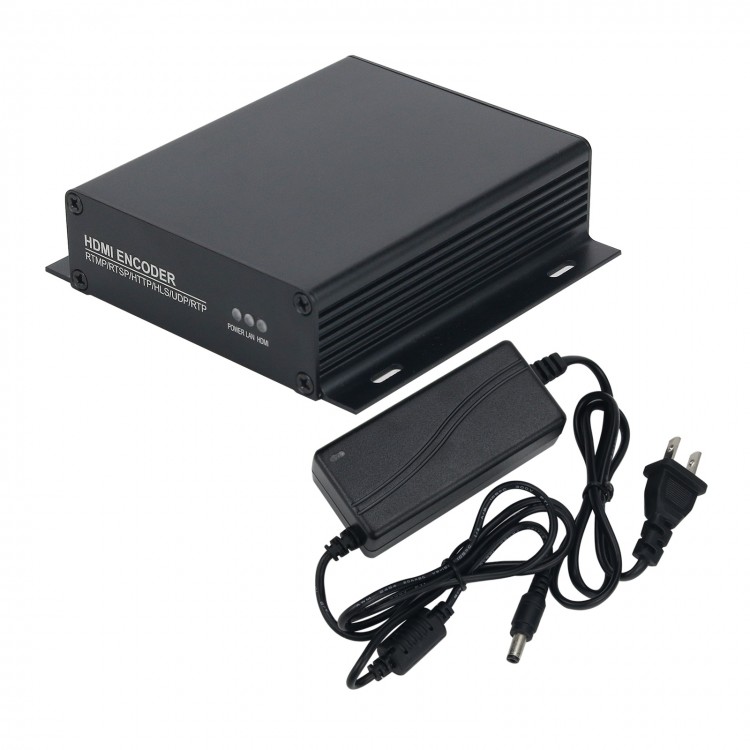

- 1 x Set of HDMI Encoder

Note: Other items pictured are not included.

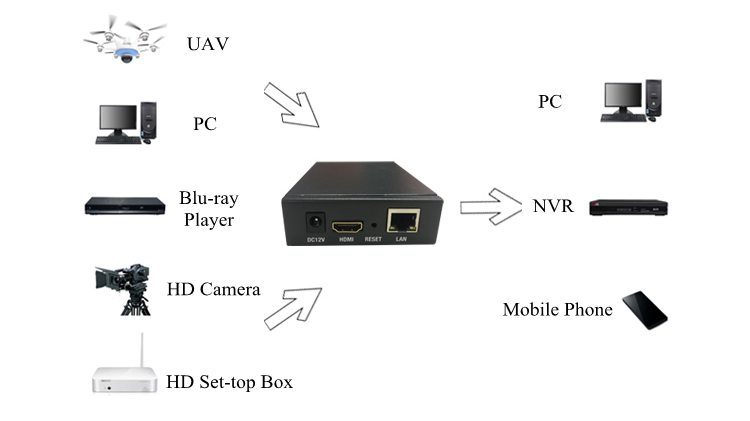

Applications:
