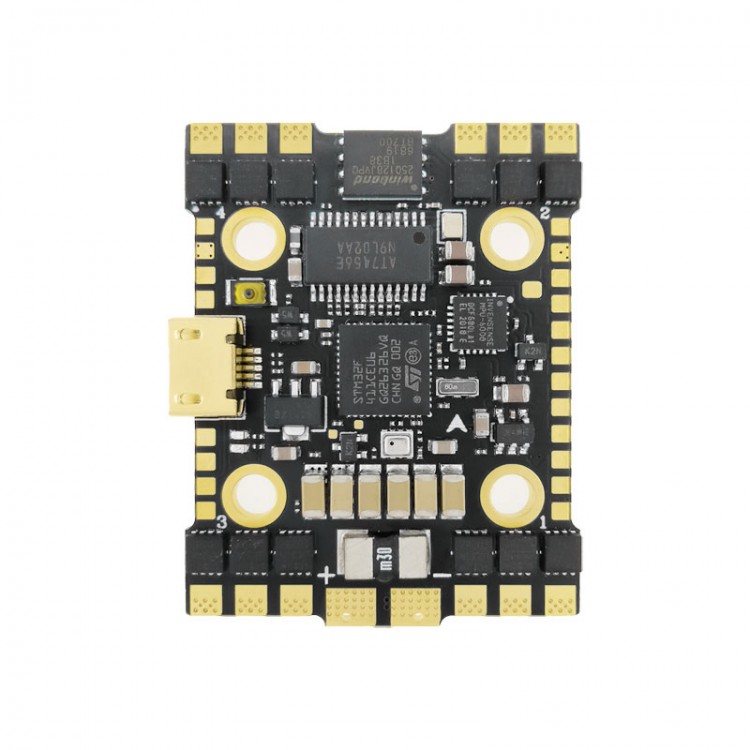

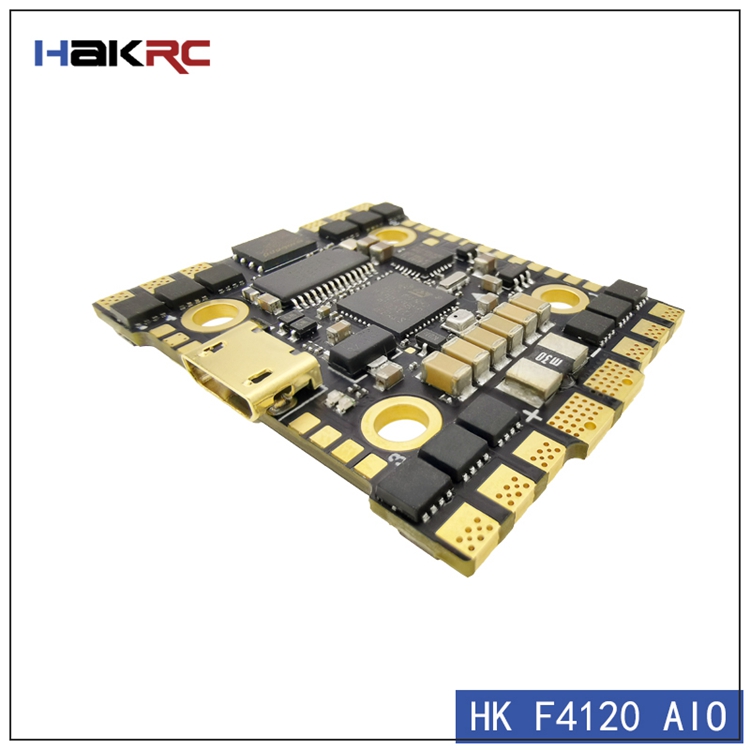

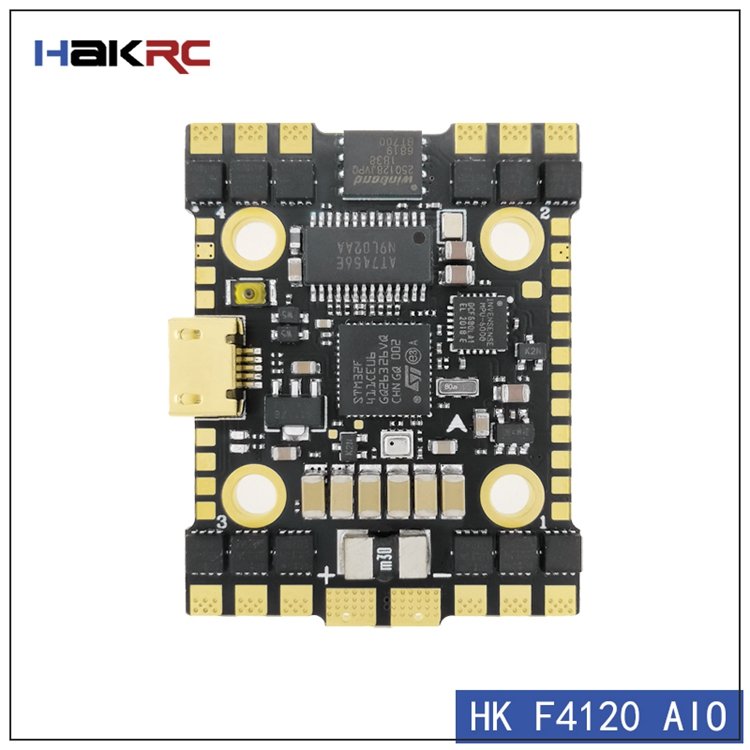

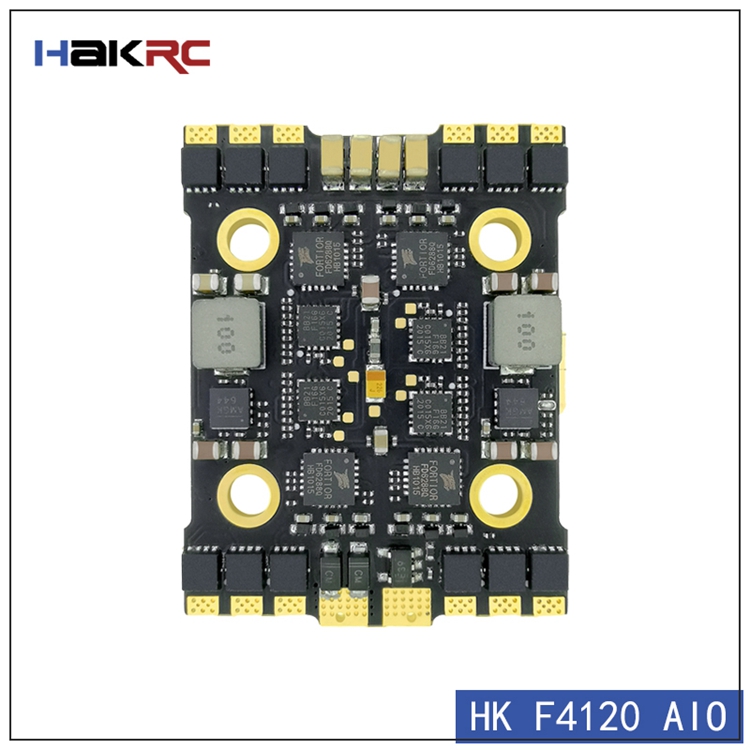

HAKRC F4120 AIO Flight Controller ESC Board 3-5S 35A Dual BEC Black Box For FPV Racing Drones

Availability: Out Of Stock

  • Price:$65.54
  • Price in reward points: 655 Reward Points: 7
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $64.23 $62.92 $60.95 $58.33 Contact US
Quantity:

HAKRC F4120 AIO Flight Controller ESC Board 3-5S 35A Dual BEC Black Box For FPV Racing Drones

Features:

- PCB adopts high-end six-layered 2oz copper, which has stronger over-current capability and good heat dissipation performance
- Imported 30V high current resistance mos with long lifespan and strong load capacity
- Industrial-grade LDO with high temperature resistance
- Using high-quality capacitors for Murata, featuring strong filtering performance

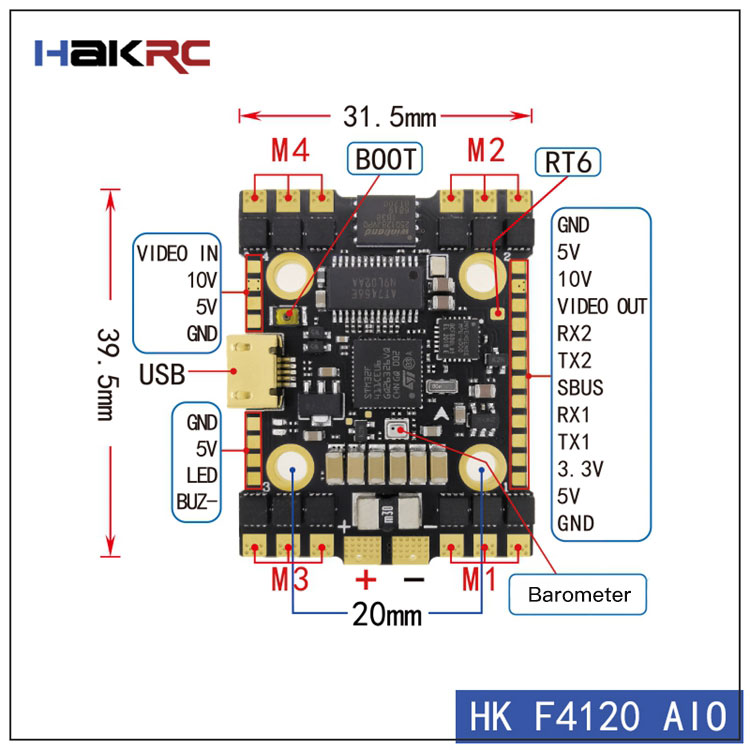

- Dimensions 39.5 x 31.5mm/1.6 x 1.2" (20 x 20mm/0.8 x 0.8" hole spacing)
- Net weight 10g/0.02 lb

Flight Controller:

- CPU: STM32F411CEU6
- IMU: MPU6000
- OSD: AT7456E
- Black box: 16M
- Barometer: BMP280
- BEC: 5V/3A; 9V/2.5A
- LED: Programmable, supporting WS2812 and others
- Sensor: Built-in current sensor
- Firmware version: for betaflight_4.1.1_MATEKF411
- Receiver: for Frsky/ Futaba/ Flysky/ TBS Crossfire/ DSMX: DSM2 receiver

ESC:
- Firmware: support for BLHELI_ S
- Protocol: support for PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300 and Dshot600
- Input voltage: 3-5S Lipo
- Continuous current: 35A
- Peak current: 40A
- Firmware version: for BLHELI _S (C-H-30)

Package Included:
- 1 x Set of AIO Flight Controller ESC

Note:
- Battery and other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
