HAKRC F722 40A AIO Drone Flight Controller ESC In One Dual USB Suitable For FPV Racing Drones 2-6S

HAKRC F722 40A AIO Drone Flight Controller ESC In One Dual USB Suitable For FPV Racing Drones 2-6S

Features:
- PCB adopts 8-layer high-end 2oZ thick copper, which has stronger over-current capability and good heat dissipation
- MOSFET adopts imported 40V high current resistance MOS, long life and strong load capacity
- Using industrial grade LDO with high temperature resistance
- Using high-quality Japanese Murata capacitors, strong filtering performance
- Size: 32 x 32mm/1.3 x 1.3" (25.5mm-26.5mm/1-1.04" mounting hole)
- Product net weight: 7g/0.02 lb

Parameters of Flight Controller:
- CPU: STM32F722RET6
- IMU: MPU6000
- OSD: AT7456E
- Barometer: integrated
- BEC: 5V/3A
- Uart: 5
- LED: Support WS2812 and other programmable
- Sensor: Built-in current sensor
- Flight control firmware version: HAKRC F722D
- Receiver: For CRSF / Frsky/ Futaba/ Flysky
- For TBS Crossfire/ DSMX: DSM2 receiver

Parameters of ESC:
- Firmware support: BLHELI_ S
- Protocol support: For PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, and Dshot600
- Input voltage: 2S-6S Lipo
- Continuous current: 40A
- Peak current: 50A
- Current meter proportional value: 450
- Firmware version: BLHELI _S (G- H-30)

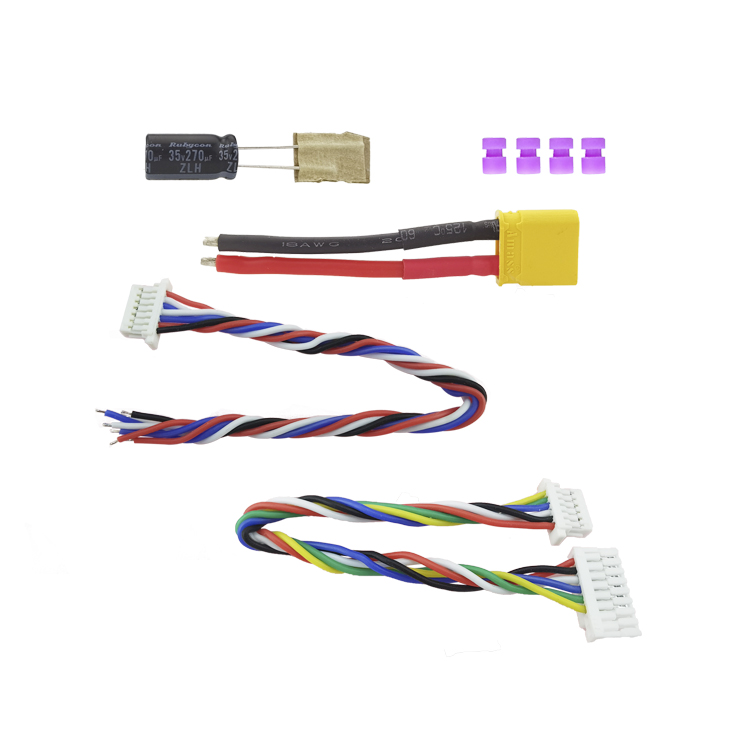

Packing List:
- F722 AIO x 1
- Shock absorbers x 4
- XT30 power cord x 1
- 180mm/7.1" SH1.0/7P cable x 1
- 270uf/35V capacitor x 1

Note:
- Battery is not included in the package.
- Other items pictured are not included in the package, for demonstration purposes only. Thank you for your understanding!
