HAKRC F722 40A AIO Square Flight Controller Stack FPV Drone Flight Controller with Dual Gyroscope

HAKRC F722 40A AIO Square Flight Controller Stack FPV Drone Flight Controller with Dual Gyroscope

Read before purchasing:
- It is the accessories of RC models, not toys. Therefore, safety should come first. If you have any questions, please consult customer service or check the manual.
- Please comply with relevant laws when using this product. Flight in crowded areas is not allowed.
- About the battery and charger: Please charge the battery before using. Users who do not know how to wire and set up the charger must consult customer service, because incorrect settings can lead to serious injury. When the battery leaks or is damaged, please do scrap treatment, otherwise it will easily cause fire. Our store is not responsible for safety accidents caused by improper operation by users.

Note:
- Battery is not included.

Features:

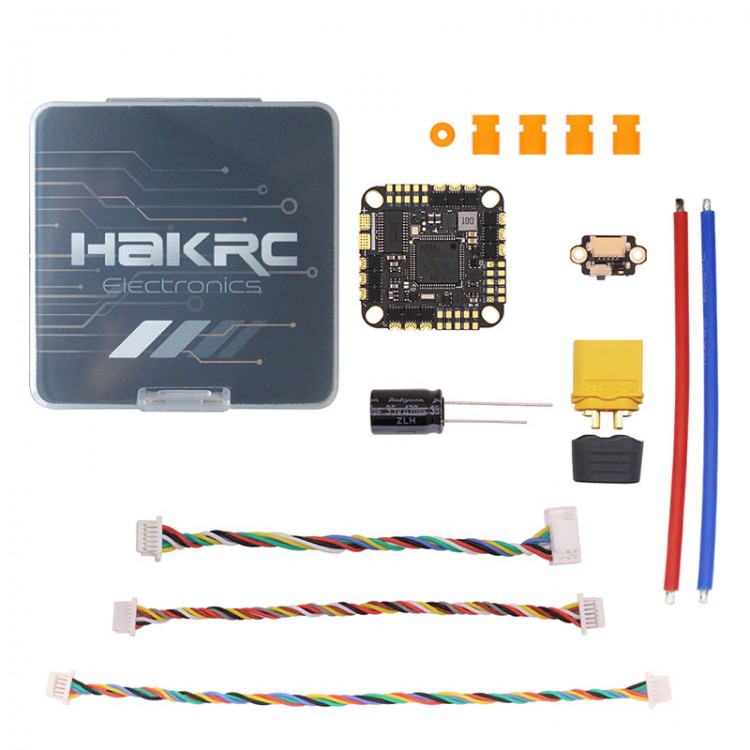

- F722 40A AIO square flight control stack board
- Suitable for digital and analog uses
- With dual gyroscope
- 25.5-26.5mm installation hole

Specifications:
Flight Controller:
- CPU: STM32F722RET6
- MCU: ICM42688
- OSD: AT7456E
- Barometer: integrated
- BEC: 5V/1.5A
- LED: External programmable LED
- Sensor: Built-in current sensor
- Flight controller firmware version: HAKRCF722D
- Applicable receivers: For CRSF/Frsky/Futaba/Flysky/TBS Crossfire/DSMX: DSM2

ESC:
- Firmware version: BLHELI_S (G-H-30)
- Protocol support: for PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
- Input voltage: 2S-6S Lipo
- Galvanometer ratio: 210
- Continuous current: 40A
- Peak current: 45A
