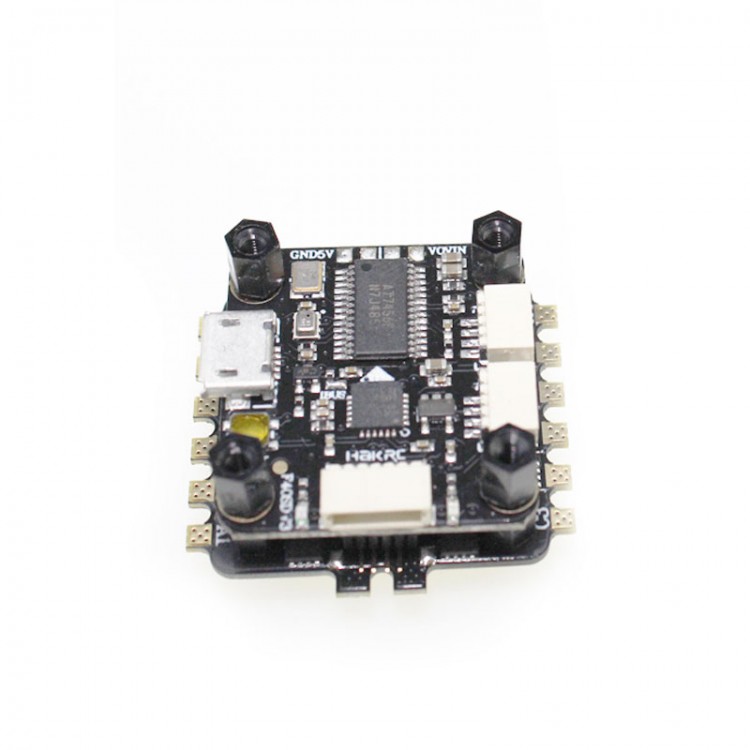

HAKRC Mini F4 20A ESC Flight Controller BetaFlight OSD BLHELI-S for Mini Drone

Tags: Mini F4

Availability: Out Of Stock

  • Price:$41.22
  • Price in reward points: 412 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $40.40 $39.57 $38.33 $36.69 Contact US
Quantity:

HAKRC Mini F4 20A ESC Flight Controller BetaFlight OSD BLHELI-S for Mini Drone


MiniF4 flight control specification:
- Mode:HK 3F4T
- Size:27x31x12mm,packaging:50x48x15mm,screw hole spacing:20x20mm
- N.W:3.3g
- G.W:15g(ESC include)

Hardware specification:
- Working voltage:2-4S LIPO
- OSD firmware version:BetaFlight OSD
- Firmware version:BetaFlight 3.20 SD
- BEC:5V/2A output
- BlheliSuite parameter adjustment:support CF,INAV brush firmware.
- Receiver:PPM,SBUS,IBUS,DSM2,SBUS:select RX1,IBUS,DSM2:select RX6(need connect F4 front IBUS pad)
- Camera and transmission voltage:5V

Mini 20A 4 in 1 ESC:
- Size:27x31mm,ESC net weight:3.8g
- Input voltage:2-4S LiPo/2-4S HV LiPo
- BEC output:no
- Single ESC continuous working current:20A(the max current:25A,lasting 5 seconds)
- Firmware:BLHELI_S
- Support DSHOT600 and the following compatible:Oneshot,positive negative rotation;procesor:SILABS EFM8BB21F16G
- Drive:new I 3 in 1 MOS drive

Package List:
- 1 x HAKRC Mini F4
