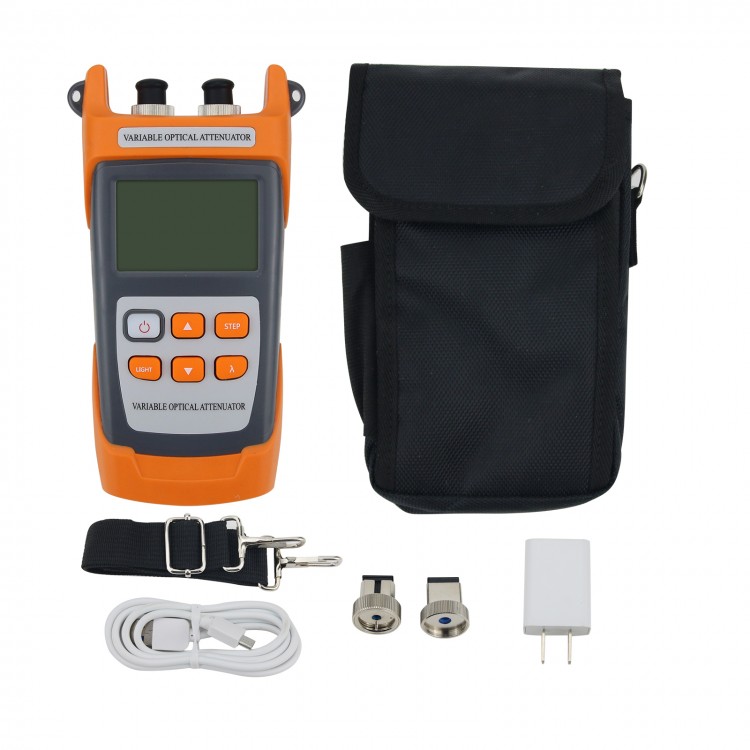

Handheld Variable Optical Attenuator Optical Multimeter Digital LCD Screen NK305 60DB

Availability: In stock, usually dispatched in 1 business day

  • Price:$386.06
  • Price in reward points: 3861 Reward Points: 39
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $378.34 $370.62 $359.04 $343.59 Contact US
Quantity:

Handheld Variable Optical Attenuator Optical Multimeter Digital LCD Screen NK305 60DB

Description:

Adopted a new optical attenuation technology, the NK305 provides 0dB to 60dB continuous adjustable attenuation in a wide range of wavelengths 1310 to 1650nm without power jump. It is designed with extremely high attenuation accuracy and repeatability.

Features:

- Attenuation Range: 0-60dB
- High attenuation accuracy with low insertion loss
- Linear attenuation module with high reliability
- Continuously adjustable attenuation without power jump

Technical Parameters:
- Model No.: NK305
- Wavelength: 1310/1490/1550/1625/1650nm
- Max. Attenuation Value (Not including insertion loss): 60dB
- Attenuation Accuracy: ≤±0.1 dB
- Repeatability: ≤±0.01 dB
- Insertion Loss: ≤1.8dB
- Display Resolution: 0.001dB
- Return Loss: ≥40dB(SM)
- Optical Connectors: FC/PC
- Electrical Connector: GPIB
- Power Supply: 220V±10%, 50Hz±5%
- Max. Power Consumption: ≤15W
- Size: 186 x 100 x 50mm
- Operating Temperature: 0℃ to 50℃
- Storage Temperature: -40℃ to 70℃
- Relative Humidity: 5% to 90% without Condensation
- N.W.: 240g

Package Included:
