Happymodel Crazybee F4 Pro V3.0 2-4S Flight Controller ESC w/ Frsky Receiver for Larva X FPV Drone

Availability: In stock, usually dispatched in 1 business day

  • Price:$43.65
  • Price in reward points: 437 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $42.78 $41.90 $40.59 $38.85 Contact US
Quantity:

Happymodel Crazybee F4 Pro V3.0 2-4S Flight Controller ESC w/ Frsky Receiver for Larva X FPV Drone

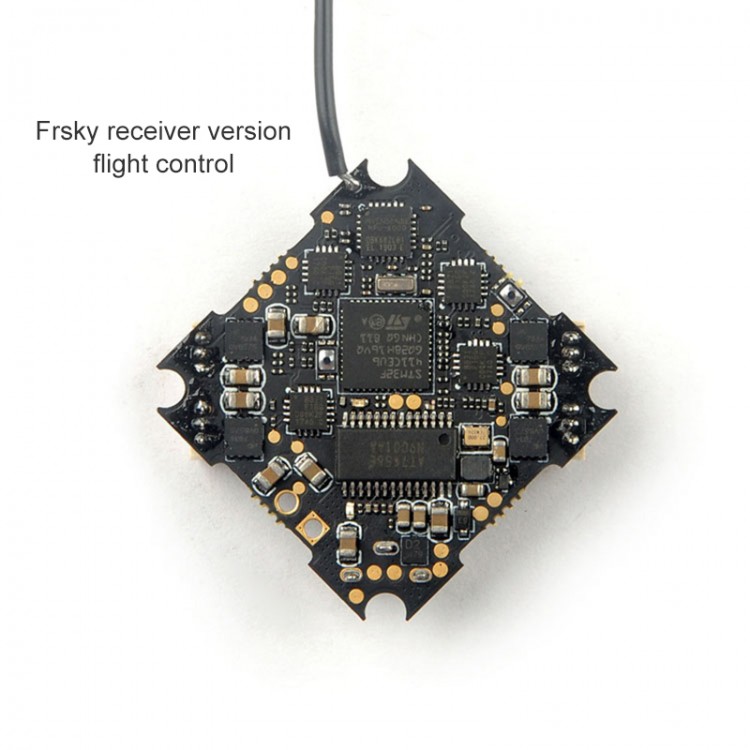

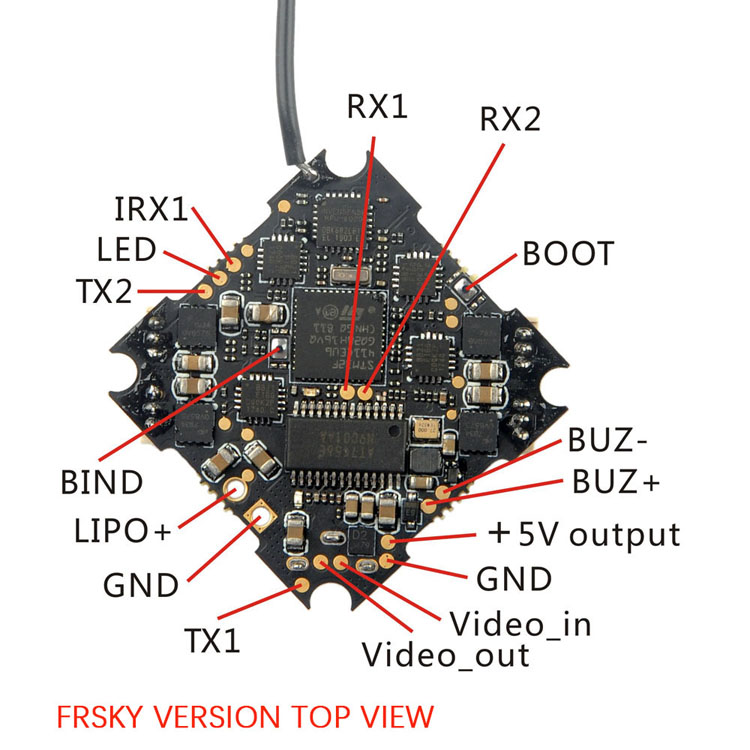

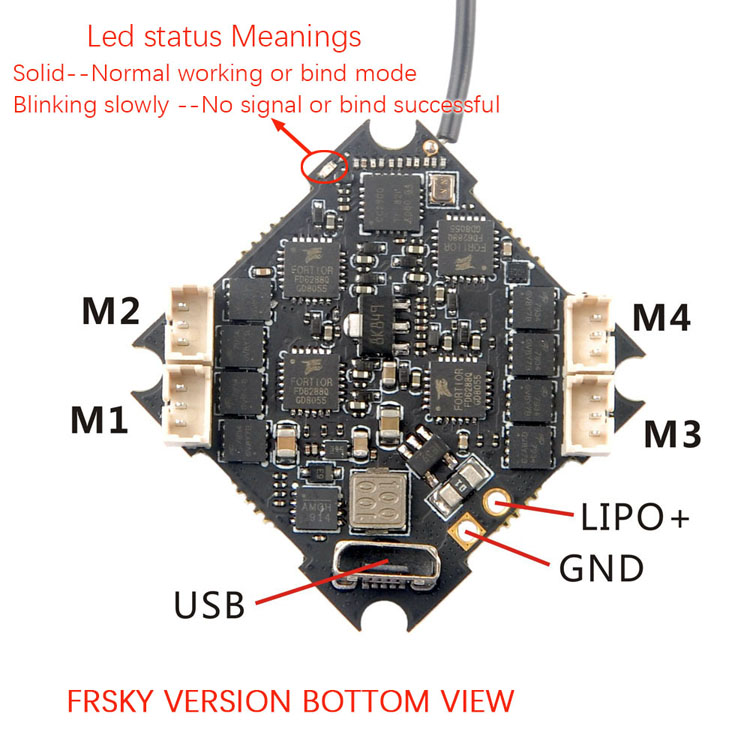

Frsky Version:

Crazybee F4FR PRO V3.0 Firmware target: CrazybeeF4FR
Built-in SPI Frsky receiver with telemetry (D8/D16 switchable)

MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5*28.5mm
Power supply: 2-4S battery input (DC 7-17V)
Built-in 10A(each) Blheli_S 4in1 ESC Dshot600 ready

Built-in Betaflight OSD(SPI Control)
Built-in Current meter Max 70A
Current meter scale set to 470
Built-in 5V 1A BEC
Built-in voltage detection

MCU upgraded to EFM8BB21
Power supply: 2-4S LiPo/LiPo HV (7V/17V)
Current: 10A continuous peak 12A (5 seconds)
Support BLHeliSuite programmable
Factory firmware: F_H_40_REV16_5.HEX
Default protocol: DSHOT600

SPI BUS receiver
Frsky D8/D16 switchable
Compatible Non EU transmitter both D8 and D16 mode
Channels: 8ch or 16ch
Failsafe support
No ground interference ( transmitter and receiver 1 m from the ground): 300m

Package List:
1 x Flight Controller
1 x Accessories Kit
