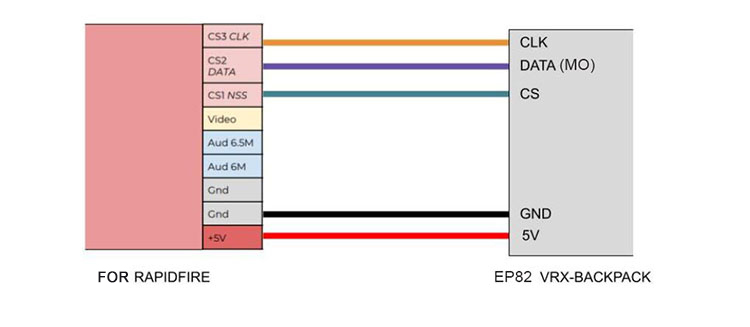

Happymodel EP82 VRX-Backpack Module for Control Rapidfire VRX with TX Module for ELRS
Description:
What is a "TX Backpack"?
Some of TX modules for ExpressLRS include an additional ESP8285 chip, which lets us communicate wirelessly with other ESP8285 enabled devices using a protocol called espnow. We call this chip the "TX-Backpack". The aim of the TX-Backpack is to allow wireless communication between the module for ExpressLRS, and other FPV related devices for command and control, or for querying config.
Sounds interesting. What type of FPV devices can it talk to?

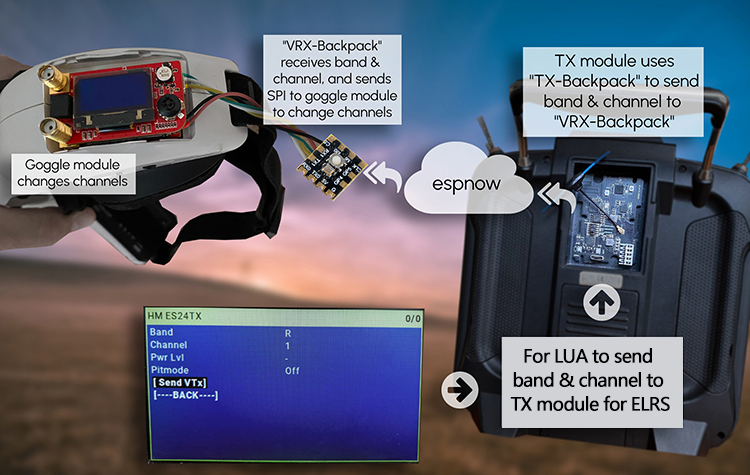

A prime use case is your video receiver module (or VRX). Currently there aren't many VRX modules that have an ESP8285 built in to allow them to communicate with module for ExpressLRS, so in most cases you need to add your own. A small ESP based receiver can be "piggybacked" onto your VRX module, which allows the module for ExpressLRS to control the band and channel that your goggles are set to. We call this device the "VRX-Backpack".
Wow cool, so I'll be able to control the module via devices for ELRS? Which VRX modules does it work with?
The list of supported modules can be found on the Wiki
Link for https://github.com/ExpressLRS/Backpack/wiki
More Information:
Link for https://github.com/ExpressLRS/Backpack
Specifications:

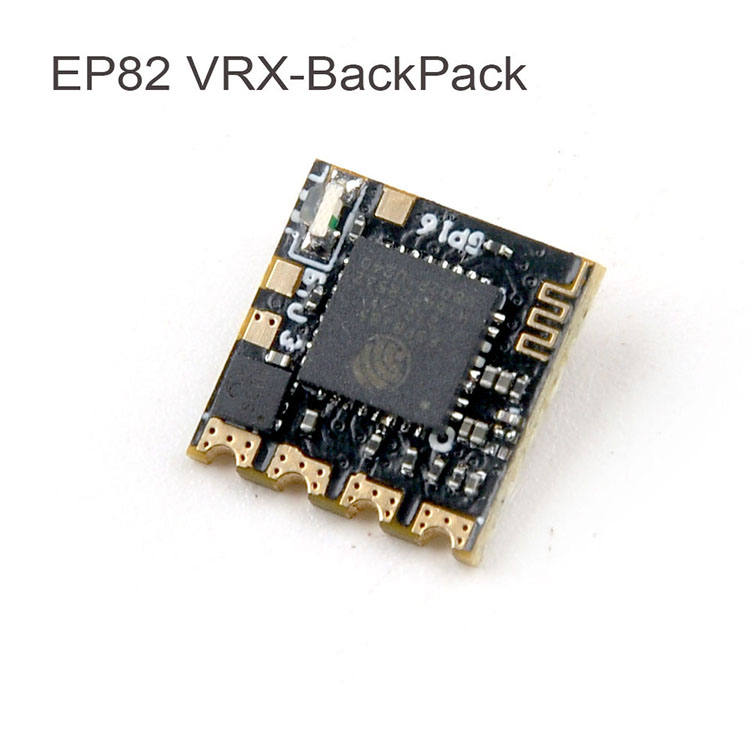

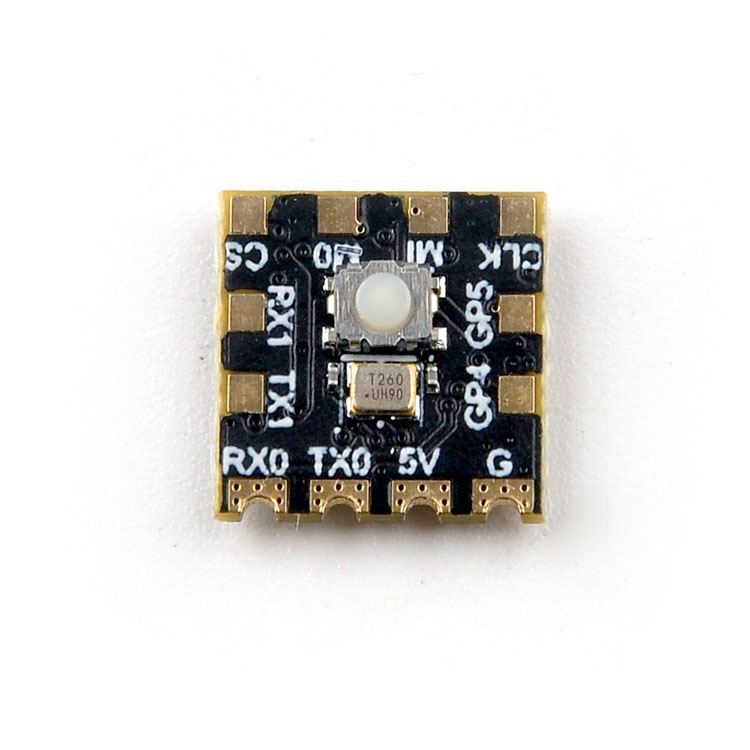

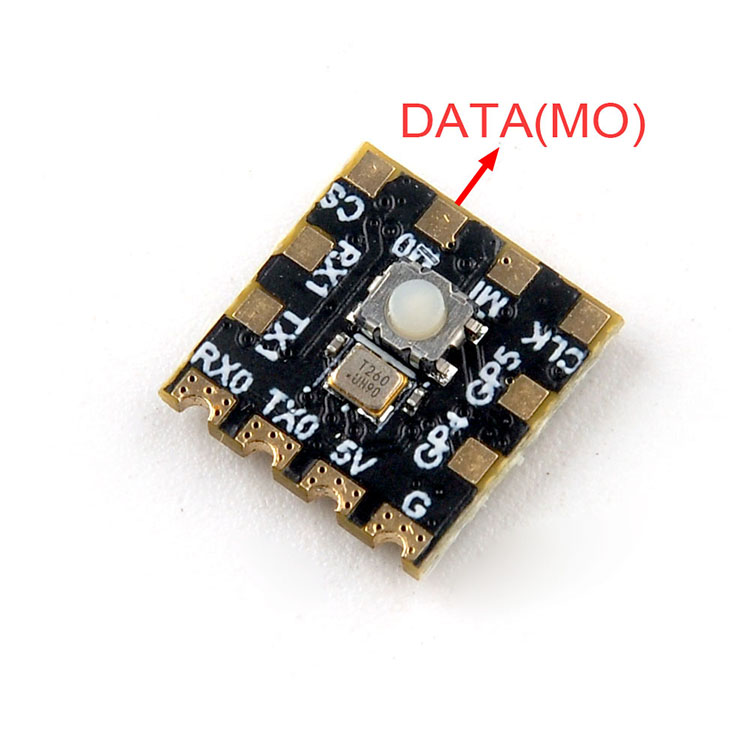

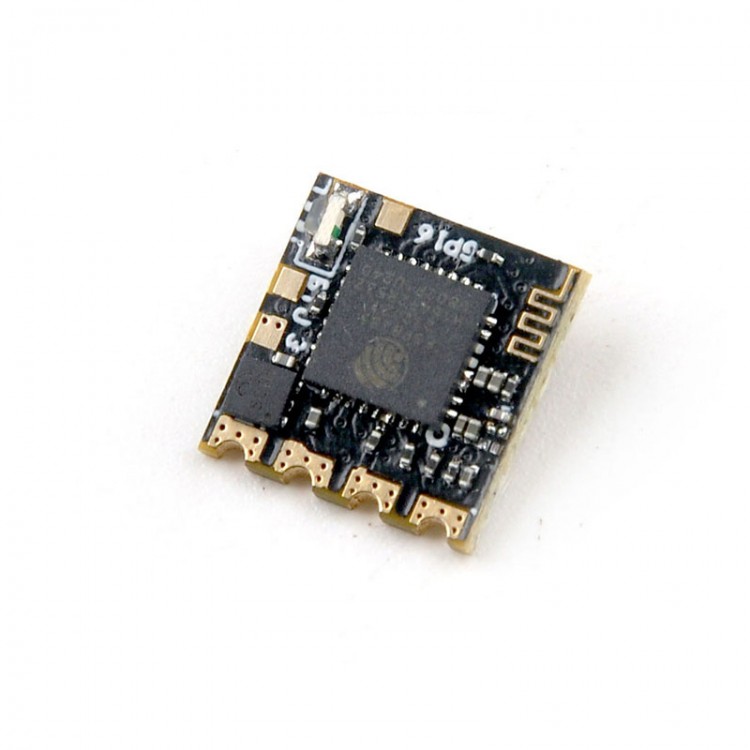

- EP82 Backpack
- MCU: ESP8285
- Weight: 0.37gram
- Size: 10.5mmx10.5mmx3.5mm
Package Included:
- 1 x EP82 VRX-Backpack Module
