Happymodel X12 Flight Controller w/ 12A ESC 400MW VTX Receiver (for Frsky V1.0) for Mobula7 1S Drone

Happymodel X12 Flight Controller w/ 12A ESC 400MW VTX Receiver (for Frsky V1.0) for Mobula7 1S Drone

Description:
The world first 5-IN-1 AIO flight controller, VTX for OPENVTX (up to 400mw), 12A Brushless Blheli_S ESC and OSD for Betaflight coming out recently.

It comes with onboard SPI receiver for Frsky which is suitable for Frsky D8/D16, REDPINE and SFHSS.

This is an amazing flight controller for Brushless whoop. You could get unbelievable RX and VTX range by using this flight controller.

Specifications:
- Brand Name: Happymodel
- Item Name: X12 AIO 5-IN-1 Flight controller built-in 12A ESC and for OPENVTX
- For Betaflight firmware target: for FRSKY Version: CRAZYBEEF4FR
- VTX antenna: U.FL
- Weight: 5.1g
- Size: 30mm*30mm*8mm

Flight controller
- For X12 Frsky V1.0 flight controller built-in FRSKY 2.4G receiver Target: CRAZYBEEF4FR
- MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
- Sensor: MPU6000 or ICM20689 or BMI270 (SPI connection)
- Mount hole size: 25.5mm*25.5mm
- Built-in 12A (each) Blheli_S 4in1 ESC
- Built-in OSD for Betaflight (SPI Control)
- Built-in 5.8G 0mw~400mw for OpenVTX
- Built-in receiver for Frsky D8/D16
- Built-in voltage meter sensor, voltage meter scale 110Built-in current meter sensor, current meter scale 470

Onboard 4in1 ESC
- Power supply: 1-2S LiPo/LiPo HV
- Current: 12A continuous peak 15A (3 seconds)
- Programmable
- Factory firmware: Z_H_30_REV16_7.HEX
- Default protocol: DSHOT300
- Support firmware for Bluejay
- When use firmware for Blujay with 48khz, should set startup power to 1100/1200

Onboard Receiver for Frsky SPI D8/D16
- SPI BUS receiver
- CC2500 RF
- Compatible Non EU transmitter D8 model Channels: 8ch
- No ground interference (Transmitter and receiver 1 m from the ground): 200meter
- Fail-safe support
- Support for Frsky D8/ D16, Redpine, and SFHSS

Onboard 5.8g VTX for OPENVTX
- Firmware version: for OPENVTX
- For Smartaudio v2.1
- PIT Mode support
- RCE Mode support
- Channels: 48ch
- Transmitting Power: 0/RCE/25mw/100mw/400mw
- Power supply: DC 5V
- Current (5v): <650ma (400mw)
- Antenna connector: U.FL

Note:
- Battery is not included. 1-2S Lipo/LIHV battery is recommended.

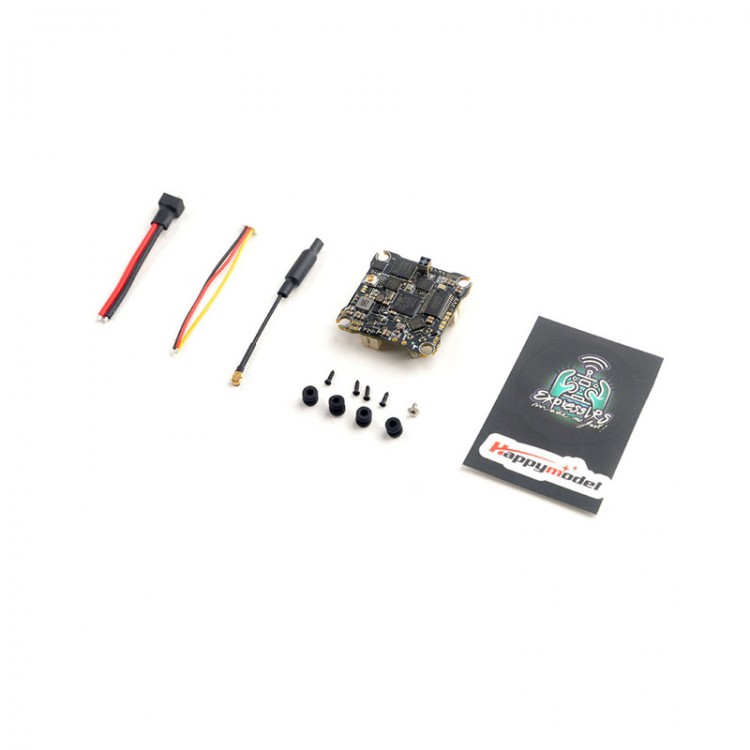

- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
