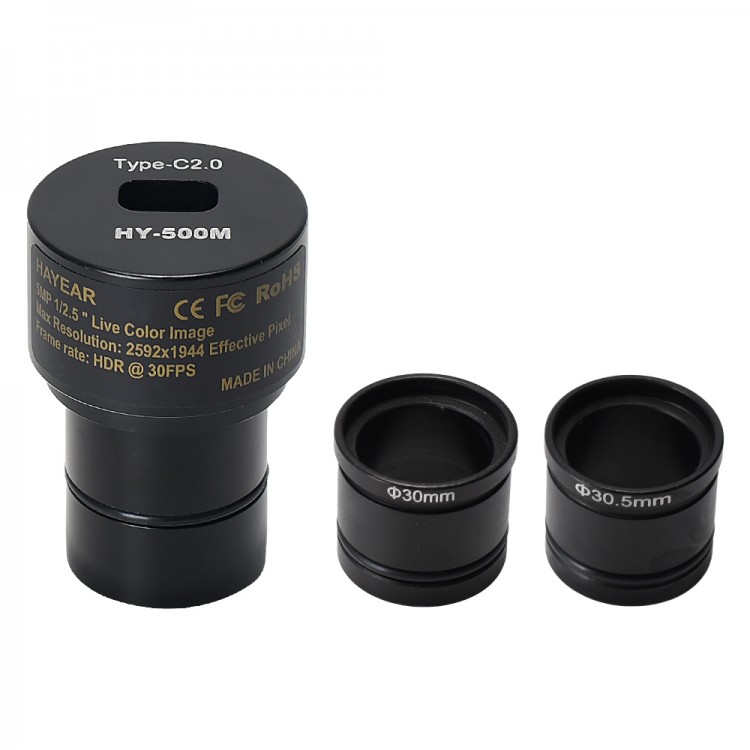

HAYEAR HY-500M 5MP Microscope Camera Digital Electronic Eyepiece USB Camera for Microscope

Availability: In stock, usually dispatched in 1 business day

  • Price:$45.75
  • Price in reward points: 458 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $44.84 $43.92 $42.55 $40.72 Contact US
Quantity:
HAYEAR HY-500M 5MP Microscope Camera Digital Electronic Eyepiece USB Camera for Microscope

Features:

- High-speed USB2.0 interface, up to 480Mb/s
- Large area array progressive scan image sensor for CMOS
- Support for static and dynamic image collection
- Exposure time: any adjustable
- 8bit uncompressed raw image data, software implementation Bayer color conversion plug and play installation
- For Windows 2000, XP, and WIN7 operating systems
- The image is stable and reliable, after a long period of rigorous testing performance indicators. Can be widely used in pattern recognition, industrial testing, medical microscopy and traffic management and machine vision and other fields. More widely used in various fields of microscope and image acquisition of various occasions
- C mouth eyepiece interface (adapter), designed for the microscope. The under mouth is the 23.2mm/0.9", 30mm/1.2", and 30.5mm/1.2" straight inserted

Camera Specifications:

- Image sensor: 1/2.5" color image sensor for CMOS
- Pixels size: 2.2μm x 2.2μm
- The spectral response: 550nm
- Scan mode: progressive scan
- Pure hardware 5 megapixel image sensor, no compression, no interpolation
- Resolution: 640x480 at 30fps, 1280x1024 at 30fps, 1600x1200 at 30fps, 1920x1080 at 30fps, 2048x1536 at 30fps, 2592x1944 at 30fps
- White Balance: Automatic / Manual
- R.G.B value setting independent
- Automatic Exposure Control: Automatic / Manual
- Image output: USB2.0, 480Mb/s
- Operating temperature: 0℃ to 50℃
- Working current: about 200mA
- Application: Microscope imaging, General image acquisition, macro imaging, etc.
- Support OTG for Android phones (OTG Cable is not included)
- Mini USB and Type C interface version will be sent randomly. Except for different interfaces and slightly different appearances, the effects and usage are the same.

Package Included:
- 1 x Microscope Camera
- 1 x CD
- 1 x USB Cable
- 1 x 30MM/1.2" Adapter
- 1 x 30.5MM/1.2" Adapter
