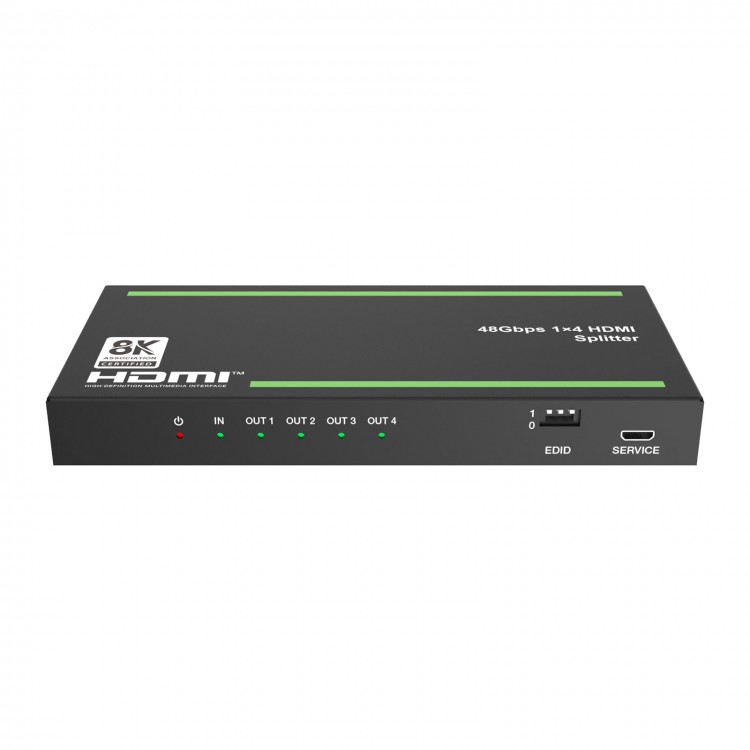

HDC-SPC14 1-IN 4-OUT 8K 1x4 HDMI-compatible Splitter 48Gbps High Performance HDMI-compatible Distributor
Description:
- This 48Gbps 1x4 HDMI-compatible Splitter is an advanced solution for splitting single HDMI-compatible signal to 4 HDMI-compatible outputs synchronously, with video resolution up to 8K at 60 4:2:0 12bit. It supports data rates up to 48Gbps to comply with HDMI-compatible 2.1 and HDCP 2.3 requirements. It includes several features for ease of integration, including EDID management, cable equalization.
- This multi-functional product can work well with xbox or PS5 to achieve 4K at 120Hz on your TVs or relative monitors.
Features:
- HDMI-compatible 2.1 and HDCP 2.3 compliant.
- Support 48Gbps FRL and 18Gbps TMDS video bandwidth.
- Support video resolution up to 8K at 60Hz 4:2:0 12bit, 4K at 120Hz 4:4:4 12bit.
- HDMI-compatible 2.1 protocols: VRR, ALLM, QMS, QFT, SBTM are supported.
- Support for HDR, HDR 10, HDR 10+, Dolby Vision, HLG pass-through.
- Support for LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through.

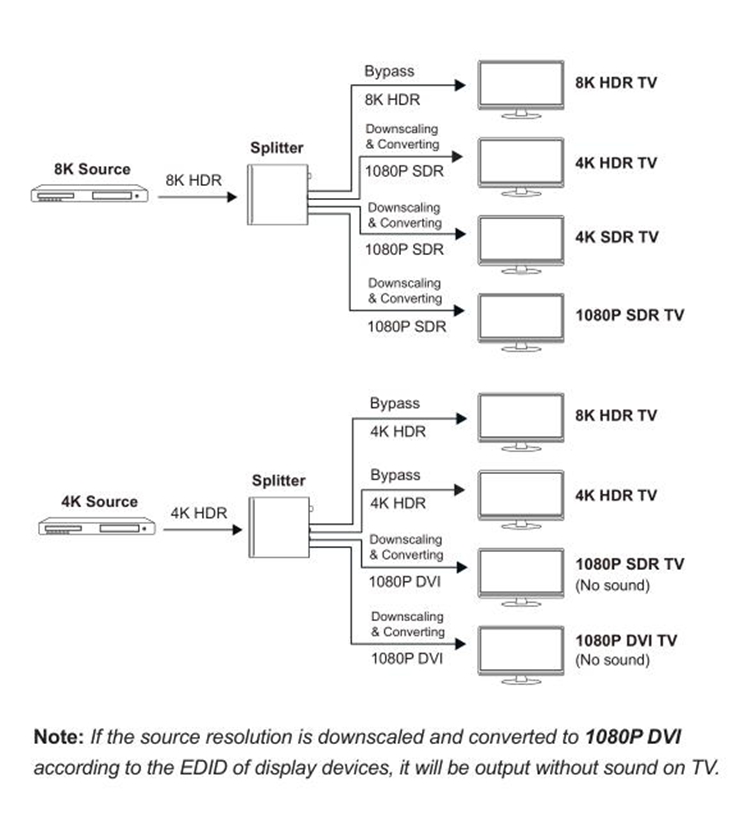

- 8K to 4K or 8K/4K to 1080P auto down-scaling on all outputs.
- HDR to SDR auto converting on all outputs.

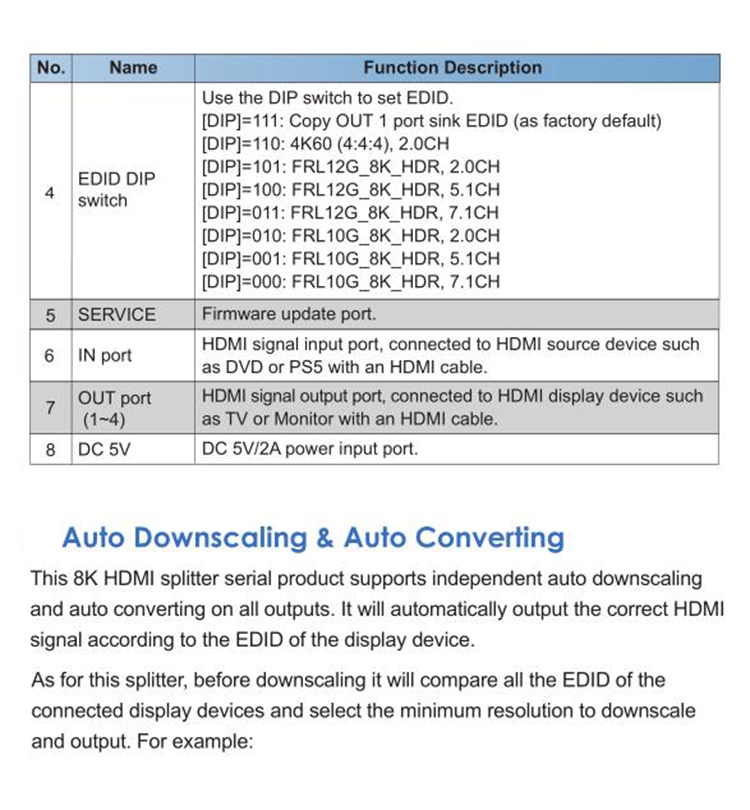

- Advanced EDID management.
- Compact design for easy and flexible installation.
Package Included:
- 1 x HDMI-compatible Splitter
- 1 x 5V/2A Power Supply
- 1 x User Manual
