| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $126.65 | $124.06 | $120.18 | $115.01 | Contact US |

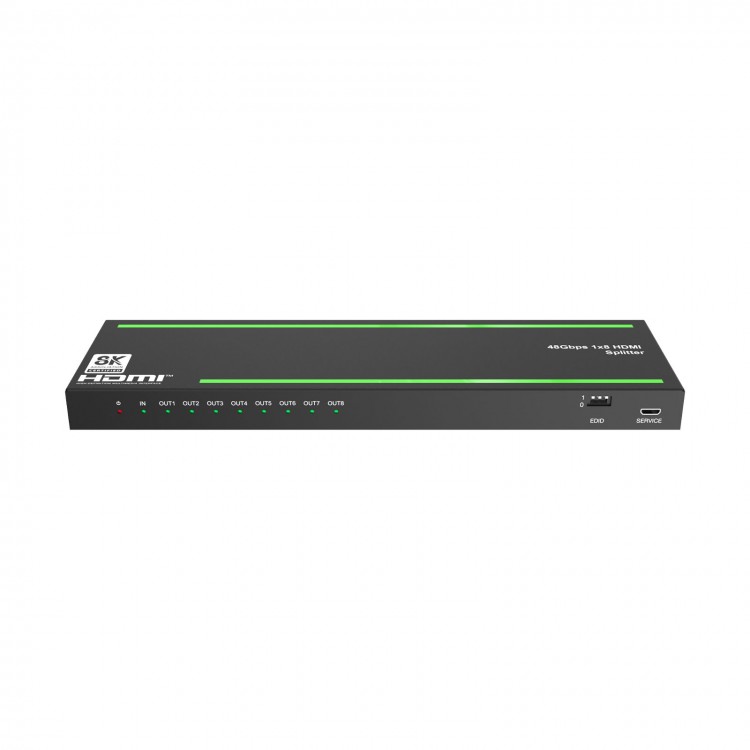

HDC-SPC18 1-IN 8-OUT 8K 1x8 HDMI-compatible Splitter 48Gbps High Performance HDMI-compatible Distributor
Description:
- This 1x8 splitter is an advanced solution for splitting single HDMI-compatible signal to 8 HDMI-compatible outputs synchronously, with video resolution up to 8K at 60 4:2:0 12bit.
- It supports data rates up to 48Gbps, complying with HDMI-compatible 2.1 and HDCP 2.3 requirements. It includes several features for ease of integration, including EDID management, cable equalization.
- This multi-functional product can work well with xbox or PS5 to achieve 4K at 120Hz on your TVs or relative monitors.
Features:
- HDCP 2.3 compliant.
- Support 48Gbps FRL and 18Gbps TMDS video bandwidth.
- Support resolution up to 8K at 60Hz 4:2:0 12bit, 4K at 120Hz 4:4:4 12bit, as specified in HDMI-compatible 2.1.
- Support for VRR, ALLM, QMS, QFT, SBTM, as specified in HDMI-compatible 2.1.
- Support for HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through.
- Support HDMI-compatible audio formats: for LPCM 7.1CH, Dolby TrueHD, Atmos, DTS-HD Master Audio.

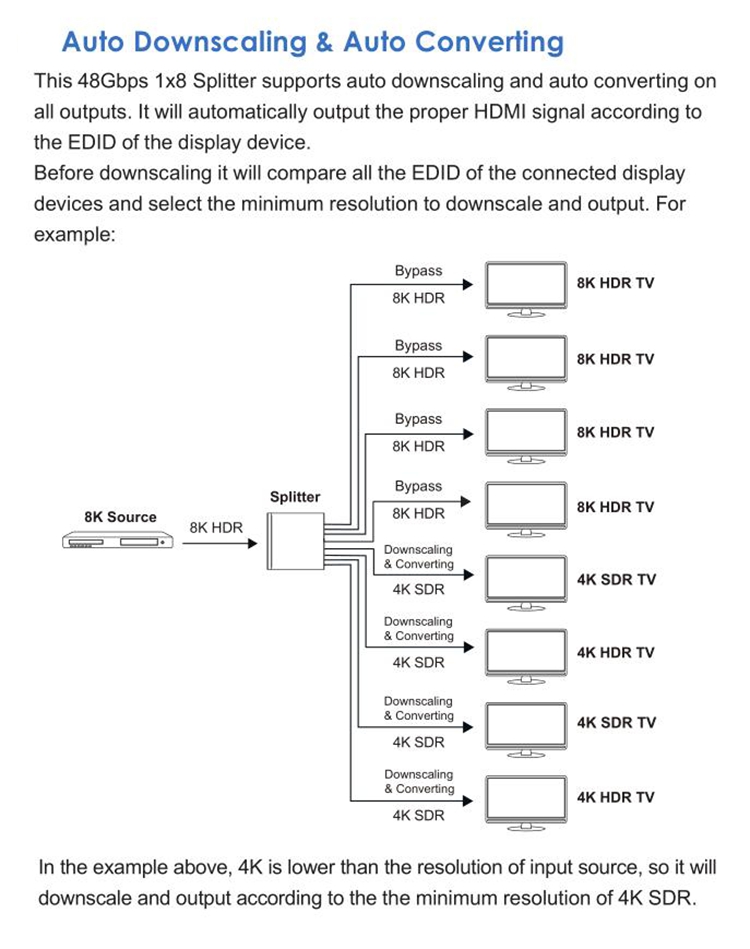

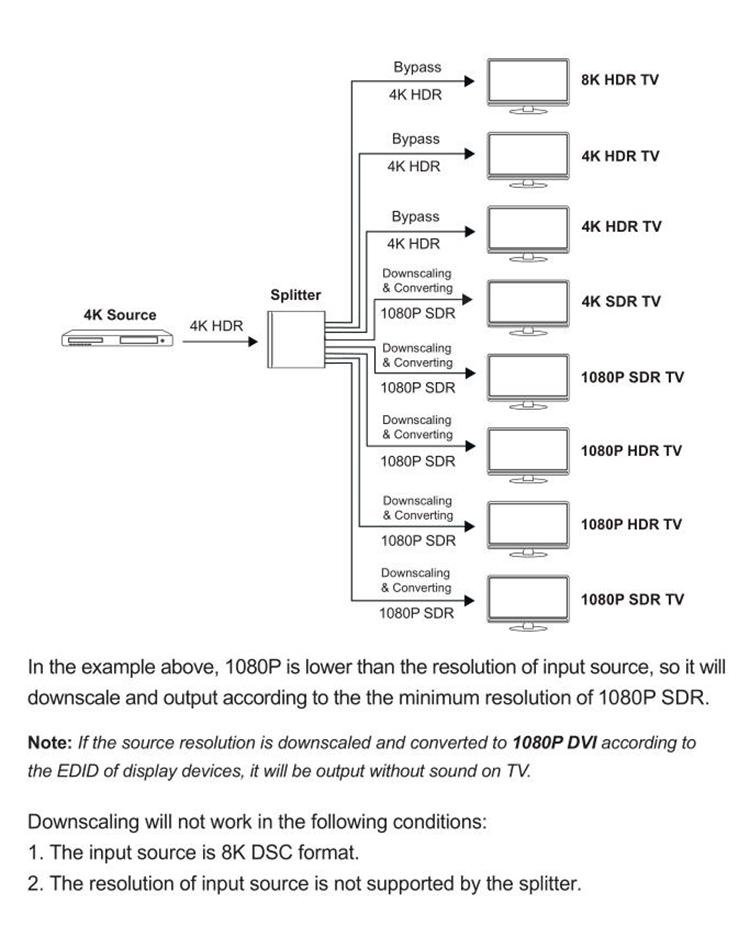

- Support resolution auto down-scaling on each output.
- Support auto converting of HDR to SDR on each output.

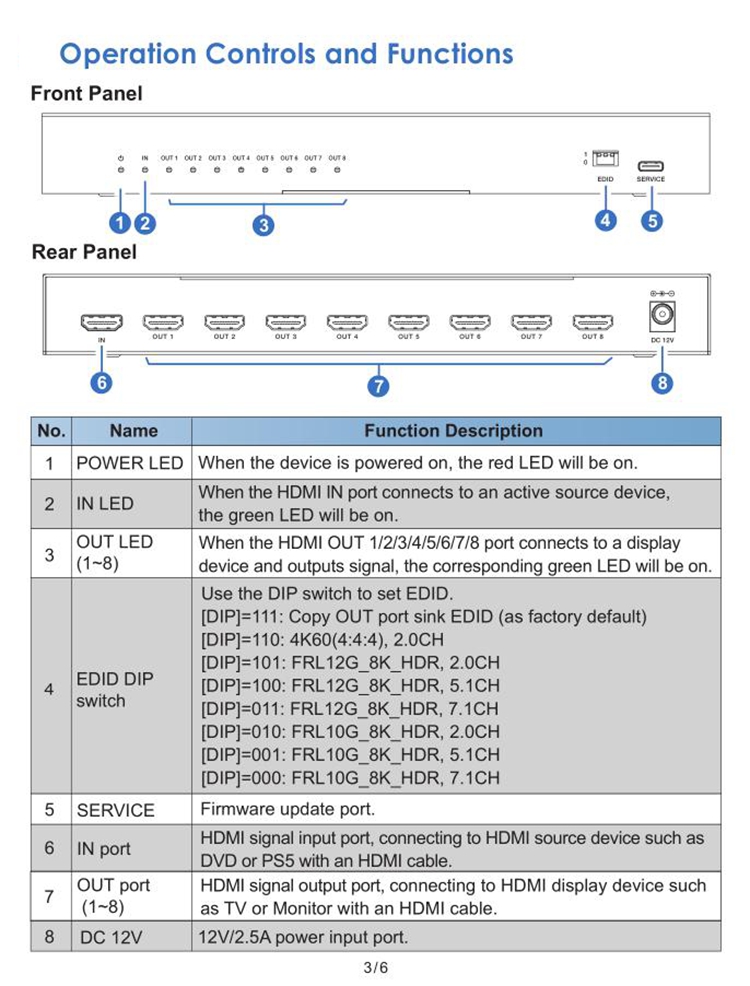

- Advanced EDID management.
Package Included:
- 1 x HDMI-compatible Splitter
- 1 x 5V/2A Power Supply
- 2 x Mounting Ear
- 4 x Machine Screws (KM3*6)
- 1 x User Manual
