HEXMAN ECHO-PLUS ROS Robot Chassis Robot Platform Supports 80kg Load and 2.0m/s Maximum Speed

HEXMAN ECHO-PLUS ROS Robot Chassis Robot Platform Supports 80kg Load and 2.0m/s Maximum Speed

Features:

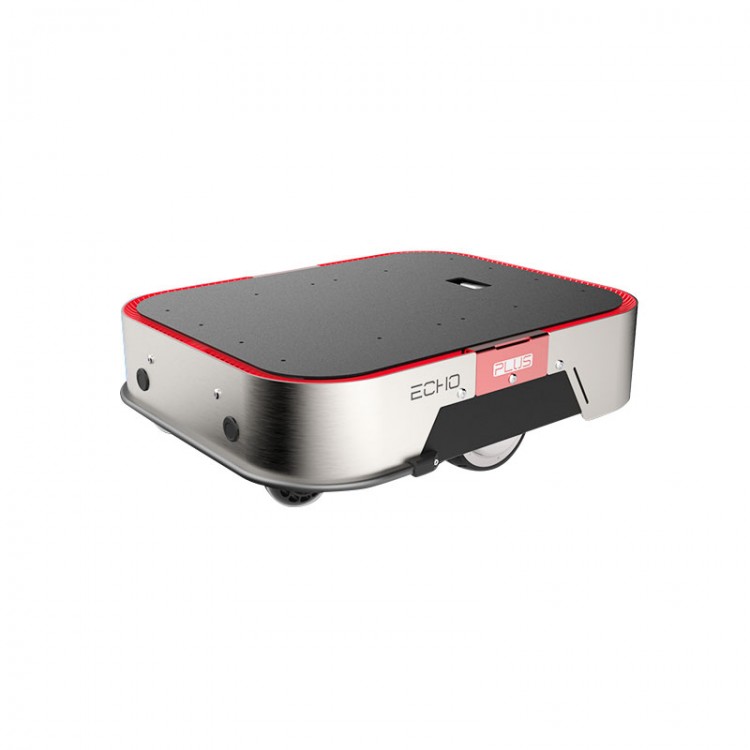

ECHO-PLUS Robot Chassis
* 80kg load capacity
* Two differential drive wheels and four driven wheels
* Direct-drive hub motors
* Three-axis suspension
* Standard automatic charging
* Suitable for indoor commercial project development

ECHO-PLUS Mobile Module
* Suitable for indoor and outdoor scenarios for secondary development.

Born for Lightweight Application Development
* It is a highly maneuverable, compact mobile module that can operate indoors and outdoors with mild obstacles. It is particularly suitable for early-stage development in teaching, research, and lightweight application projects, providing tailored mobility for robots.

Stable on Rough or Flat Terrain
* The 6WD robot chassis combined with rear swing-arm suspension maintains stable ground contact at all times.

Power Equals Strength
* Equipped with widened hub motors and capable of passing a 80kg load test, it allows for mild off-road use.

A Powerful Tool for Application Development
* ECHO-PLUS, designed for project application development, features a six-wheel system ideal for indoor service and inspection industries. The chassis comes with a built-in automatic charging system.

Best Choice for Cluster Collaboration
* Strong performance and competitive pricing enable scalable applications, particularly in collaborative clusters. This allows one robot to serve multiple purposes, reducing development and maintenance varieties, and lowering project R&D and deployment costs.

Diverse Software Support
* Testing software is provided for Windows and Ubuntu systems. It supports ROS platform development and includes open-source navigation code.

Modular Assembly System
* A wide range of expansion modules with standardized installation and connection interfaces can be used, enabling unlimited creative development.
* ROS, GPS, Wi-Fi, 4G–5G, SLAM, CAN, LiDAR, ML and AI can be used with the robot chassis.

Specifications:
* Model: ECHO-PLUS
* Dimensions: 460mm×380mm×140mm
* Turning Radius: 265mm
* Ground Clearance: 35mm
* Unloaded Weight: 16kg
* Load Capacity: 80kg
* Maximum Speed: 2.0m/s
* Maximum Climbing Slope: 5°
* Obstacle Clearance: 10mm (no load)
* Motion Mode: Two differential drive + four driven wheels
* Operating Time: 8–10 hours
* Motor: 2×100W
* Encoder Resolution: 1024 lines
* Battery: 24V / 10Ah
* Charging Time: 5 hours
* Interface: Standard CAN
* IP Rating: IP22
* Operating Temperature: 0–40°C
* Note: The actual operating time may vary significantly depending on usage conditions and external power output.

Packing List:
* 1 × ROS Robot Chassis

Packaging Details:
* Weight: 26kg

Note:
* A 100W battery is included.
