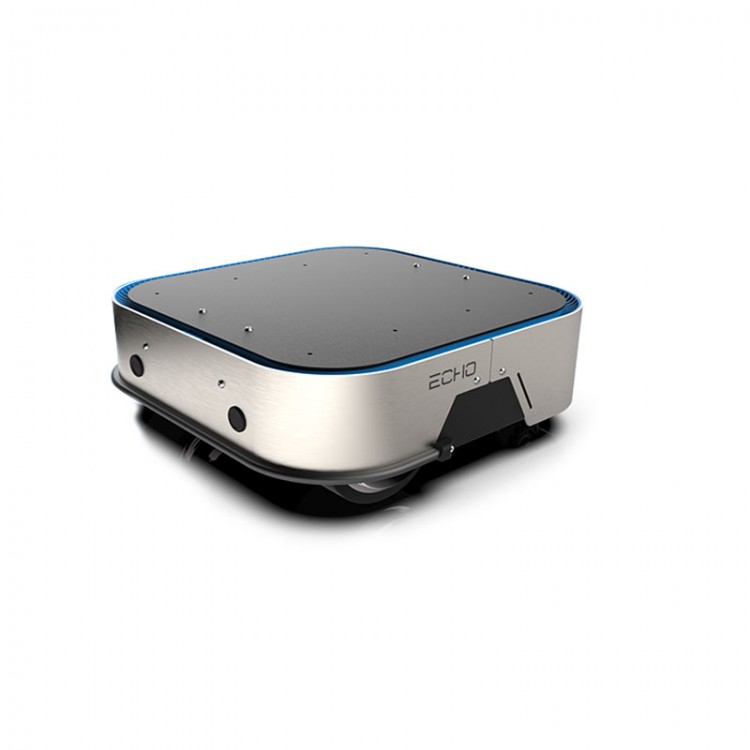

HEXMAN ECHO (ECHO-STD) ROS Robot Chassis Robot Platform Supports 50kg Load and 1.5m/s Maximum Speed

HEXMAN ECHO (ECHO-STD) ROS Robot Chassis Robot Platform Supports 50kg Load and 1.5m/s Maximum Speed

Features:

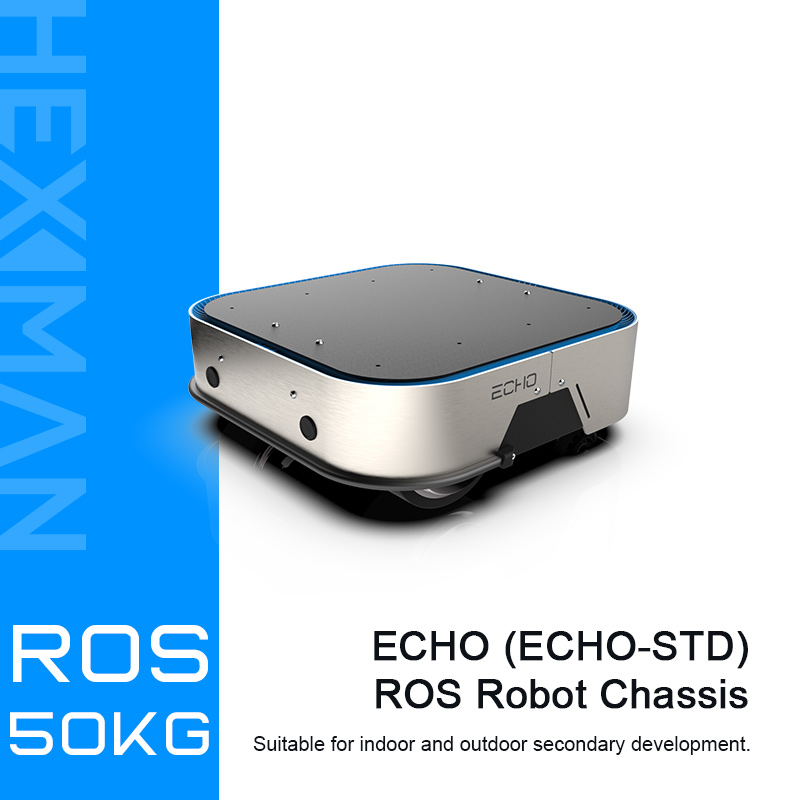

ECHO (ECHO-STD) ROS Robot Chassis
* ECHO application standard mobile module
* Suitable for indoor and outdoor scenarios for secondary development.

ECHO (ECHO-STD) Robot Platform
* 50kg load capacity
* Two differential drive wheels and two driven wheels
* High-power geared hub motors
* Large-capacity battery
* Rear swing-arm suspension
* Suitable for indoor and outdoor heavy-load operation

Born for Lightweight Application Development
* It is a highly maneuverable, compact mobile module that can operate indoors and outdoors with mild obstacles. It is particularly suitable for early-stage development in teaching, research, and lightweight application projects, providing tailored mobility for robots.

Stable on Rough or Flat Terrain
* The 4WD chassis combined with rear swing-arm suspension maintains stable ground contact at all times.

Power Equals Strength
* Equipped with widened hub motors and capable of passing a 50kg load test, it allows for mild off-road use.

Best Choice for Cluster Collaboration
* Strong performance and competitive pricing enable scalable applications, particularly in collaborative clusters. This allows one robot to serve multiple purposes, reducing development and maintenance varieties, and lowering project R&D and deployment costs.

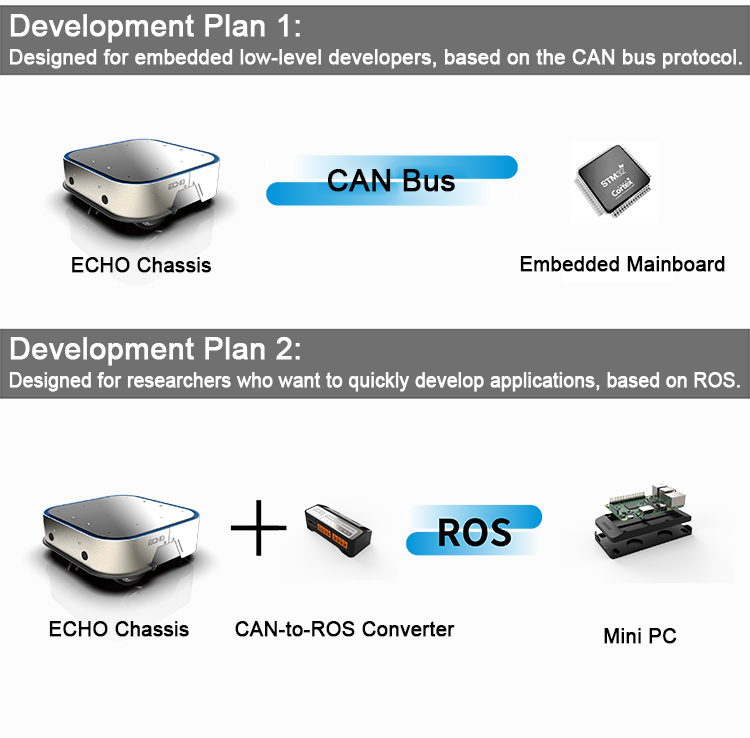

Diverse Software Support
* Testing software is provided for Windows and Ubuntu systems. It supports ROS platform development and includes open-source navigation code.

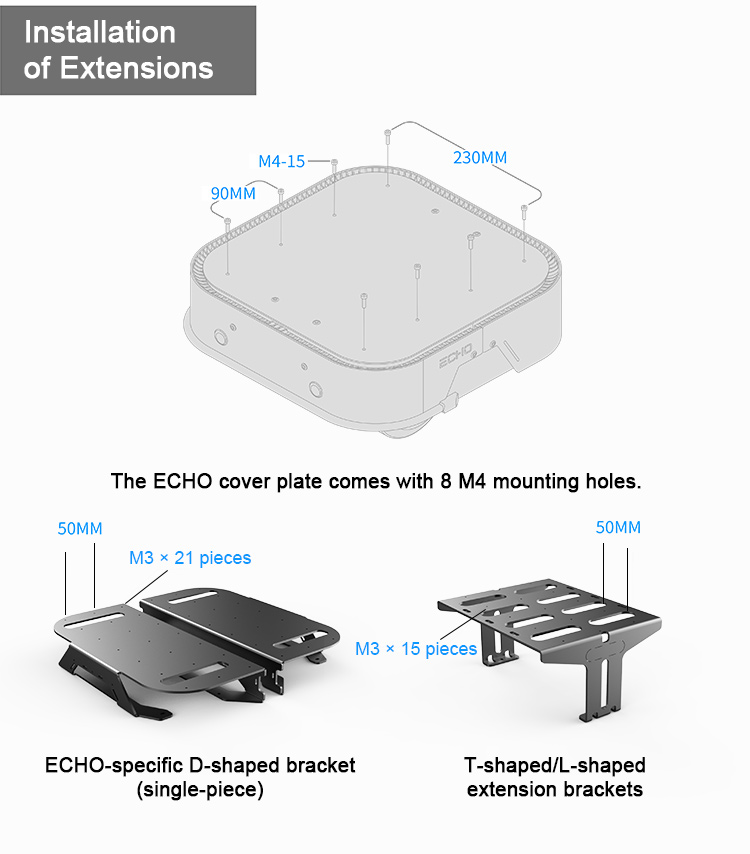

Modular Assembly System
* A wide range of expansion modules with standardized installation and connection interfaces can be used, enabling unlimited creative development.
* ROS, GPS, Wi-Fi, 4G–5G, SLAM, CAN, LiDAR, ML and AI can be used with the robot chassis.

Specifications:
* Model: ECHO (ECHO-STD)

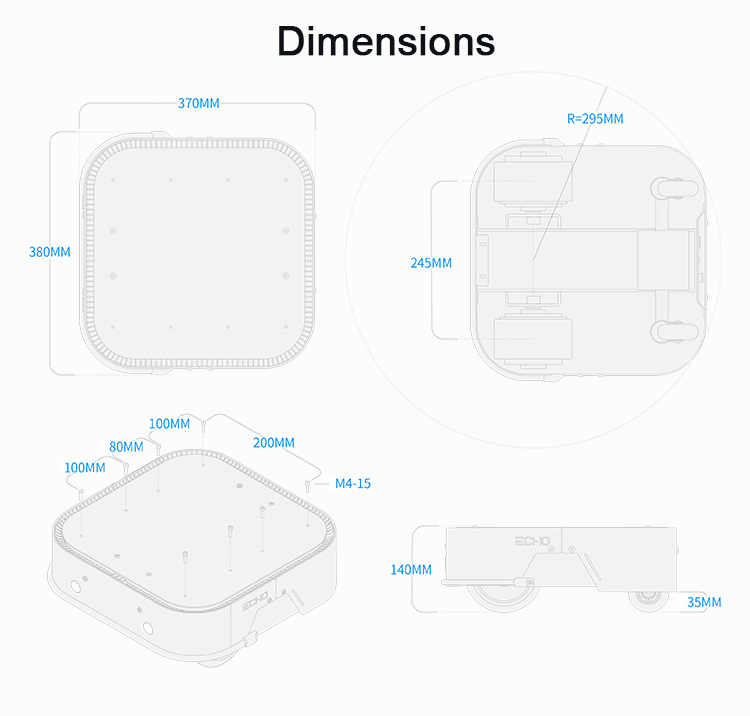

* Dimensions: 370mm×380mm×140mm
* Turning Radius: 295mm
* Ground Clearance: 35mm
* Unloaded Weight: 14kg
* Load Capacity: 50kg
* Maximum Speed: 1.5m/s
* Maximum Climbing Slope: 10°
* Obstacle Clearance: 10mm (no load)
* Motion Mode: Two differential drive + two driven wheels
* Operating Time: 8–10 hours
* Motor: 2×150W
* Encoder Resolution: 4096 lines
* Battery: 24V 10Ah
* Charging Time: 5 hours

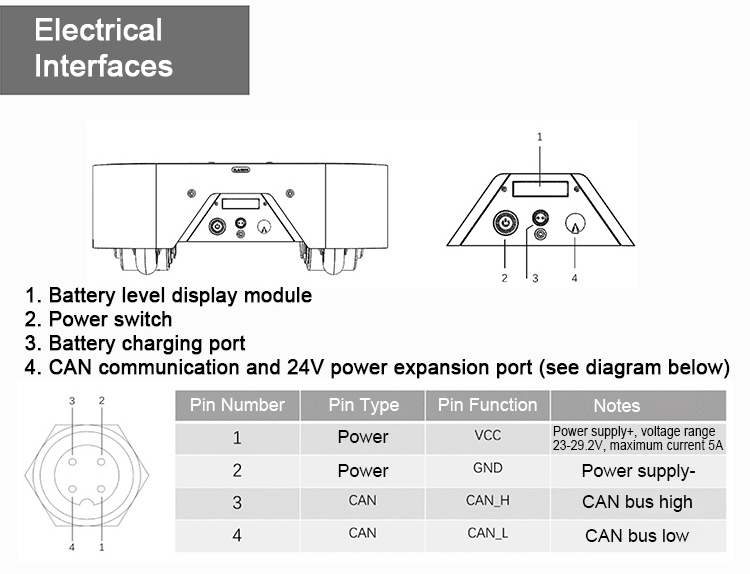

* Interface: Standard CAN
* IP Rating: IP22
* Operating Temperature: 0–40°C
* Note: The actual operating time may vary significantly depending on usage conditions and external power output.

Packing List:
* 1 × ROS Robot Chassis

Packaging Details:
* Weight: 22kg

Note:
* A 100W battery is included.
