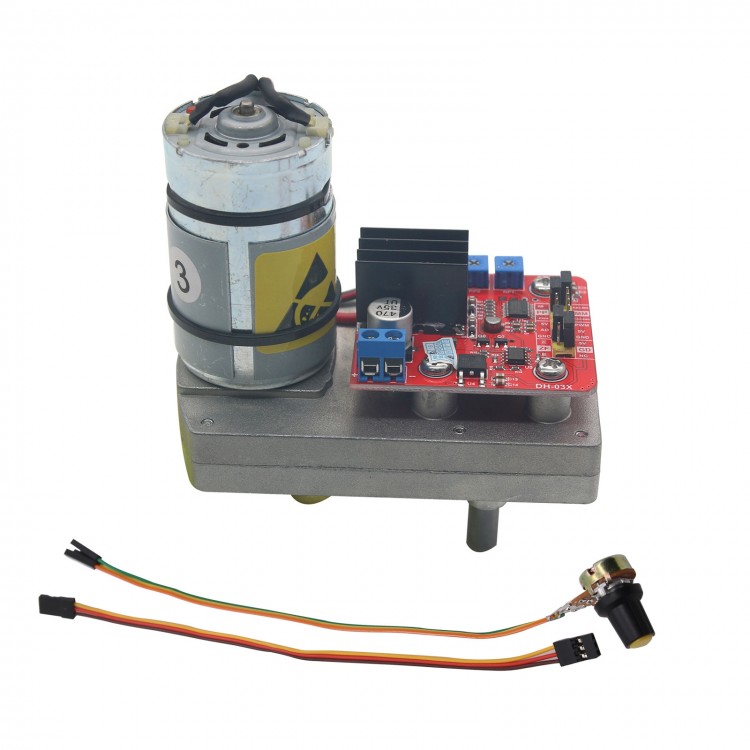

High Torque Servo DC12V 24V 180kg.cm Steel Gear with Potentiometer for Robot Mechanical Arm
Functions:
- Designed with potentiometer
- Potentiometer control, remote control
- Current adjustment and angle adjustment
- CW and CCW switching, AD & PWM switching, pulse width 1-2ms & 0.5-2.5ms
- Compatible with Futaba, JR, SANWA, Hitec, etc.
Parameters:
- Model: XJD-X1
- Working voltage: DC12-24V
- No load current: <500mA
- Maximum torque(actual measurement): 380kg.cm(24V) ;3648N.cm(24V) ;190kg.cm(12V) ;1824N.cm(12V)
- Angular velocity: 0.5s/60degree, when 24V;1.0s/60degree, when 12V
- Rotation angle: 330 degree MAX. (0-360 degree, adjustable)
- Input mode: PWMIN is PWM signal; ADIN is analog voltage signal(potentiometer)
- Pulse signal input range: 0.5ms-2.5ms for all "multi channal controller", 1ms-2ms for drone remote controller, SCM program, Arduino, etc.
- Voltage signal input range: 0-5V
- Control accuracy: 0.32 degree
- Weight: 530g
- Gear material: Steel
- Size: 95.5*60.5*102.6mm
- Application: Robot, mechanical arm, other high torque control area
- Power input: DC12-24V
- Motor output: 12-24V
Package List:
- 1 x Servo
