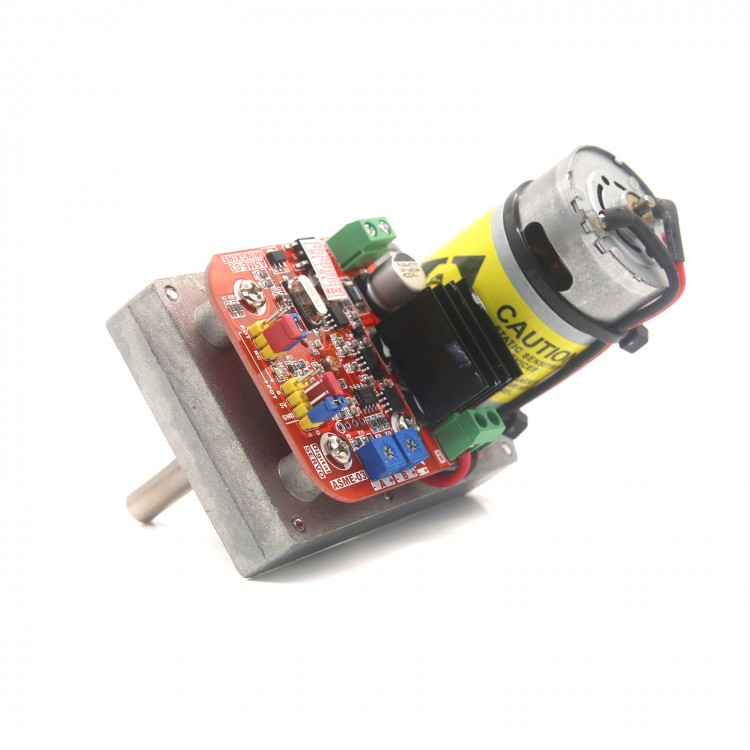

DC12V 24V 380KG.CM Servo High Power High Torque for Robot Mechanical Arm DIY

Availability: In stock, usually dispatched in 1 business day

  • Price:$85.06
  • Price in reward points: 851 Reward Points: 9
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $83.36 $81.66 $79.11 $75.70 Contact US
Quantity:

DC12V 24V 380KG.CM Servo High Power High Torque for Robot Mechanical Arm DIY

Specifications:

- Operating voltage: 12V to 24V (DC)
- No-load current: <500mA
- Maximum torque:
  380kg.cm (24V) (measured, non-theoretical value)
  3648N.cm (24V) (measured, non-theoretical value)
 190kg.cm (12V) (measured, non-theoretical value)
 1824N.cm (12V) (measured, non-theoretical value)
- Angular speed:
  0.5s / 60degree(60 degrees of rotation required 0.5s), 24V time;
  1.0s / 60 degree  (60 degrees of rotation required 1.0s), when 12V;
- Rotation angle: 270 ° MAX, meaning that the maximum stroke of 270 degrees (0 to 270 degree adjustable electronic limit)
- Input mode: pulse signal (remote control, multi-channel servo controller, microcontroller) or an analog voltage signal (potentiometer)
- Pulse signal input range: 0.5ms-2.5ms fits all "multiple servo controller", "1ms-2ms model aircraft remote control", "SCM", "Arduino" and so on;
- Voltage signal input range: 0V to + 5V
- Control accuracy: 0.32 degree
- Weight: 530g
- Gear Material: Steel
- Dimensions: 95.5mm X 60.5mm X 102.6mm
- Not include servo horn

Package list:
- 1 x High Torque Servo
