| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $40.55 | $39.72 | $38.48 | $36.83 | Contact US |

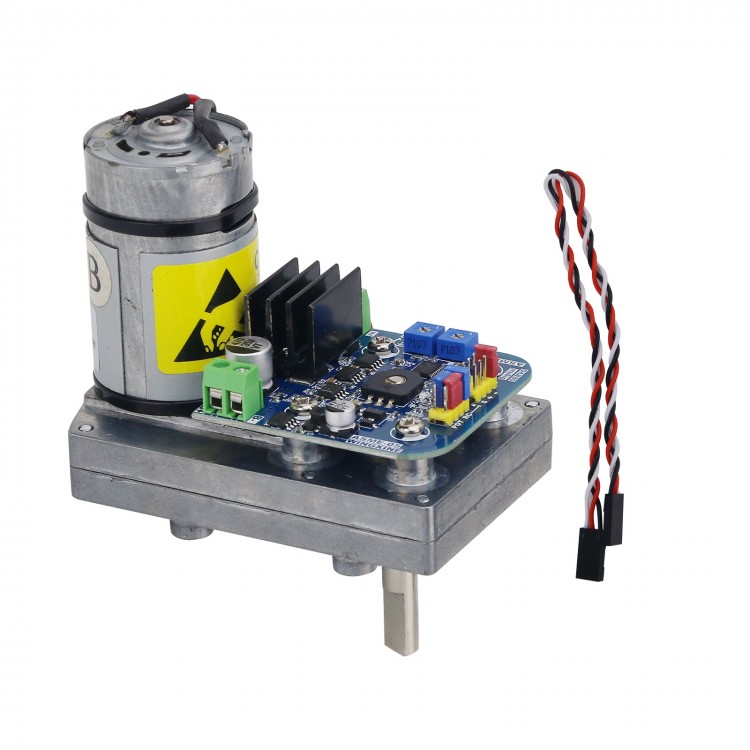

High Torque RC Servo DC12V 24V 180kg.cm Steel Gear for Robot Mechanical Arm ASMC-04B
Function:
- Potentiometer control, remote control
- Current adjustment and angle adjustment
- CW and CCW switching, AD&PWM switching, pulse width 1-2ms&0.5-2.5ms
- Compatible with Futaba, JR, SANWA, Hitec, etc.
Parameters:
- Working Voltage: DC12-24V
- No Load Current: <500mA
- Maximum Torque (Actual Measurement): 180kg.cm (24V); 1764N.cm (24V); 90kg.cm (12V); 882N.cm (12V)
- Angular Velocity: 0.5s/60°, 24V; 1.0s/60°, 12V
- Rotation Angle: 300° MAX. (0-300°, adjustable)
- Input Mode: Pulse signal (remote controller, multi-channel controller, SCM); Analog voltage signal (potentiometer)
- Pulse Signal Input Range: 0.5ms-2.5ms for all "multi channel controller", 1ms-2ms for drone remote controller, SCM program, Arduino etc.
- Voltage Signal Input Range: 0-5V
- Control Accuracy: 0.32°
- Weight: 530g
- Gear Material: Steel
- Size: 95.5 x 60.5 x 102.6mm
- Application: Robot, mechanical arm, other high torque control area
- Power Input: DC12-24V
- Motor 0utput: 12-24V
Package Included:
- 1 x Servo
