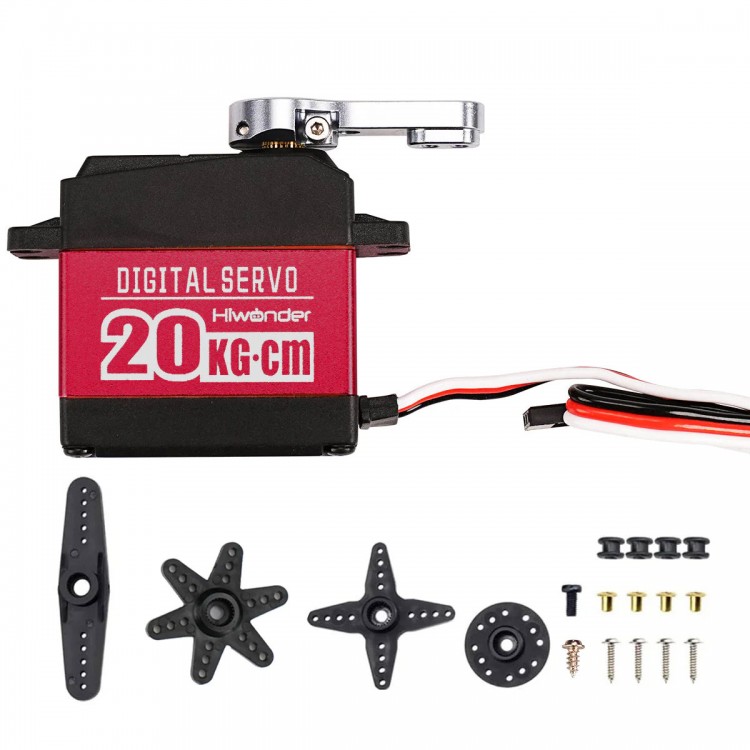

Hiwonder HPS-2018 Metal Gear Digital Servo 20KG High Torque with Aluminum Case for Robots & RC Cars
Features:
* 20kg·cm 180° High Torque Servo Motor: This RC servo delivers a maximum torque of 20 kg·cm at 7.4V and comes with a durable metal servo arm for enhanced performance. It features an anodized aluminum case that provides excellent heat dissipation and helps reduce power consumption.
* Superior Quality & High Performance: This digital RC servo is equipped with metal gears and dual ball bearings for outstanding durability, reliability, and low noise operation. The built-in high-precision potentiometer ensures excellent accuracy and linearity, contributing to a long service life.
* IP67 Waterproof & Ideal for Model DIY: Suitable for 1/6, 1/8, 1/10, and 1/12 scale RC cars, as well as robots, vehicles, boats, airplanes, and DIY projects. With precision construction and sealed design, this servo achieves IP67 water resistance, allowing it to operate reliably even when exposed to water splashes.
* Size & Weight: Dimensions: 40mm × 20mm × 40.5mm (1.57" × 0.8" × 1.59"); Weight: 68g (0.15lb).
* 180° Rotation: The controllable angle range of the servo is 180°, offering excellent linearity and precise control. When powered off, it can be rotated freely through 360°.
* Multi-Scene Application: Versatile high-torque servo motor ideal for RC cars, robotic grippers, and smooth servo gimbal applications.
Specifications:
* Product Weight: 68.2g
* Product Size: 1.57" × 0.8" × 1.59"/40mm × 20mm × 40.5mm
* Rotation Speed: 0.20sec/60° (7.4V)
* Stall Torque: 20kg·cm (277.6 oz·in) at 7.4V
* Working Voltage: 6–8.4V
* Stall Current: 1.4–2.3A
* No-load Current: 100mA
* Servo Horn: 25T
* Servo Wire Length: 30cm (11.8")
* Control Method: PWM pulse-width control
* PWM Pulse-width Range: 500–2500μs, corresponding to 0–180°
* Duty Cycle: 0.5ms–2.5ms
* Pulse Period: 20ms
* Wire Layout: Red = +; Black = GND; White = PWM/Signal
* Rotation Range: 0–180°
* Servo Accuracy: 0.3°
Packing List:
* 1 × Set of Digital Servo
Packaging Details:
* Weight: 0.17kg
