Holybro Kakute H7 V2 Flight Controller High Performance Flight Controller with 50A Metal 4 In 1 ESC

Availability: Out Of Stock

  • Price:$197.85
  • Price in reward points: 1979 Reward Points: 20
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $193.89 $189.94 $184.00 $176.09 Contact US
Quantity:

Holybro Kakute H7 V2 Flight Controller High Performance Flight Controller with 50A Metal 4 In 1 ESC

Description:

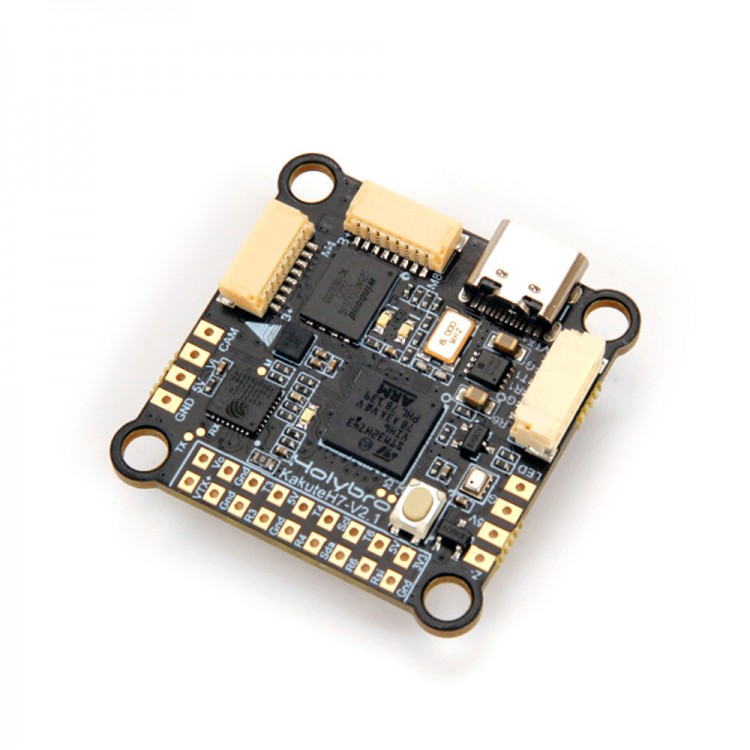

- The Holybro Kakute H7 V2 flight controller is full of features including integrated Bluetooth, HD camera bag plug, dual plug-and-play 4 in 1 ESC ports, 9V VTX ON/OFF Pit Switch, barometer, OSD, 6x UARTs, 128MB Flash for Logging, 5V and 9V BEC, and bigger soldering pad with easy layout and much more.
- The Kakute H7 V2 builds upon the best features of its F7 predecessor and further improves on hardware components and layout. With the additional integrated Bluetooth chip onboard, you can perform configuration and tuning wirelessly on your phone with the APP for SpeedyBee for Android & for IOS. The Kakute H7 is DJI HD ready. It has an easy plug-and play port with an on-board 9V regulator designed to power your HD video transmitter for DJI/for Caddx FPV Air Unit & for Caddx Vista while supporting analog system.
- It features an onboard "VTX ON/OFF Pit Switch" that allows you to completely power off the video transmitter using a switch on your RC transmitter. Great if you are working on your drone, waiting for the GPS to get a fix, getting ready for a race while preventing it from overheating or interfering with others flying. It has 6x dedicated UART ports with built-in inversion for peripherals (UART2 is used for Bluetooth telemetry), a 128MB Flash for logging, Dual plug-and-play 4 in 1 ESC connectors, allowing easy plug-and-play support for x8 & Octocopter configuration and keeping it simple and clean. The integrated for BetaFlight OSD makes it easy to display important information on your FPV display like battery voltage, flight time, warnings, RSSI, smart audio features and more. It is also ready for autonomous flight with the on-board barometer. There are LED & buzzer pad, I2C pad (SDA & SCL) for external GPS/Magnetometers.

Specification:
- MCU: STM32H743 32-bit processor running at 480MHz
- IMU: BMI270
- Barometer: BMP280
- OSD: AT7456E
- On-board Bluetooth chip: ESP32-C3
- Dimension: 37 x 37 x 7.7mm

Package Included:
- 1 x H7 V2 Module Kit
- 1 x 50A Metal 4 in 1 ESC Module

Note:
- The Bluetooth onboard is set to automatically turn off when the flight controller is unlocked (arm) and turn on automatically when the flight controller is locked (disarm).
- VTX ON/OFF Pit Switch - Switch can be enable using USER1 for Betaflight Mode tab.
- Warning: Do not enable this pit switch if you are using for DJI FPV Remote Controller.
