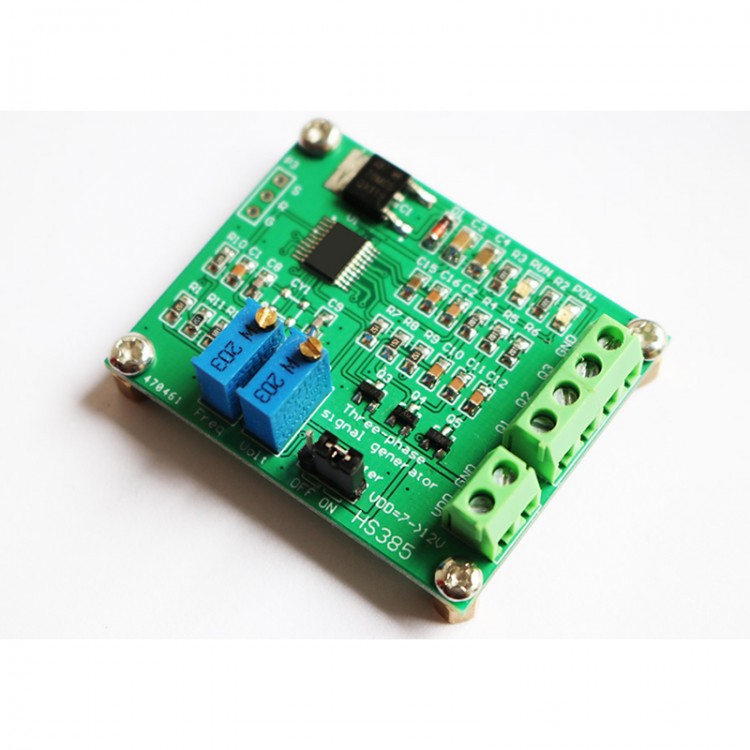

HS385 10-100Hz Three-Phase Signal Generator Module RF Signal Source Sine Wave Signal Generator
Description:
HS385 is a three-phase sine signal generator, which can also control amplitude. Up to 100Hz sine wave signal can be generated. It is easy to use.
Applications:
- Three-phase sine wave generation
- Signal generator
Technical Parameters:
- Output frequency range: 10~100Hz
- Output frequency resolution: 0.1HZ
- Signal amplitude: 3~5VDC, with maximum amplitude 5.0Vpp
- Working voltage: 7~12VDC
- Working current <50mA
- Size: 48 x 39 x 10mm/1.9 x 1.5 x 0.4" (LxWxH)
Package Included:
- 1 x Signal Generator Module
Interfaces & Related Operations:
P1 Interface (power interface):
VDD: power supply+
GND: power supply-
P2 Wiring:
Q3: C-phase signal output
Q2: B-phase signal output
Q1: A-phase signal output
GND: Power supply- (ground wire)
P3 Interface:
Unused
Potentiometer Operation:
RV1: Set output frequency
RV2: Set output voltage
JP1 Jumper:
Turn on/off output filtering
