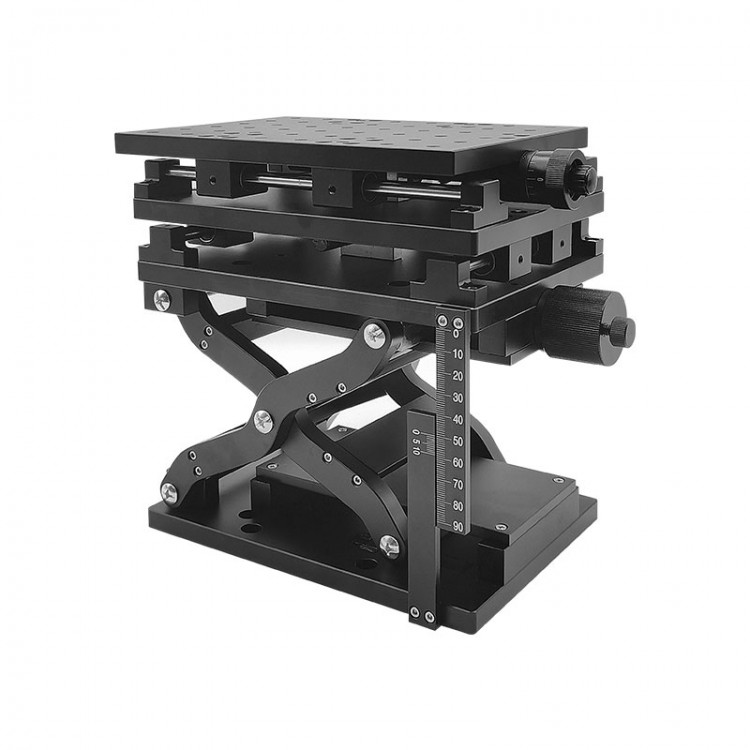

HYHTXYZ210 XYZ Axis Sliding Table 8.3 x 5.9" Lab Jack Precision Laboratory Scissor Jack w/ Scale
Features:
- Two in one: Designed with a lab jack and a XYZ axis sliding table
- It is used for large stroke, non-quantitative, large load lifting adjustment
- It adopts scissor lifting support and double guide rail five-axis over-positioning mechanism to ensure smooth movement. It is driven by lead screw
- It is comfort to use the lab jack, with high precision and large load capacity
- Both of the top platform and the base are designed with multiple holes for strong applicability. Both sides can be used as installation surfaces
- Locking screw makes it safe and reliable to use. The lifting height can be easily adjusted
- The base and the top platform have connection holes with standard hole pitch for easy use with other series combinations
- Selected material: aluminum alloy with black anodized surface and long service life
- Accurate readings and easy installation
- Fine workmanship and more stable performance
- Manual lifting: Rotate the adjustable knob clockwise to rise; turn counterclockwise to descend
Specifications:
- Top platform: 210 x 150mm/8.3 x 5.9"
- Lifting stroke: Z axis 110mm/4.3"; Y axis 50mm/2"; X axis 80mm/3.1"
- Small adjustment amount: one turn 1.5mm (reference) for X axis; one turn 3mm (reference) for Z axis
- Load: 30kg/66.1lb
- Self weight: 11kg/24.3lb
- Material: duralumin
Package Included:
- 1 x Lab Jack Sliding Table
