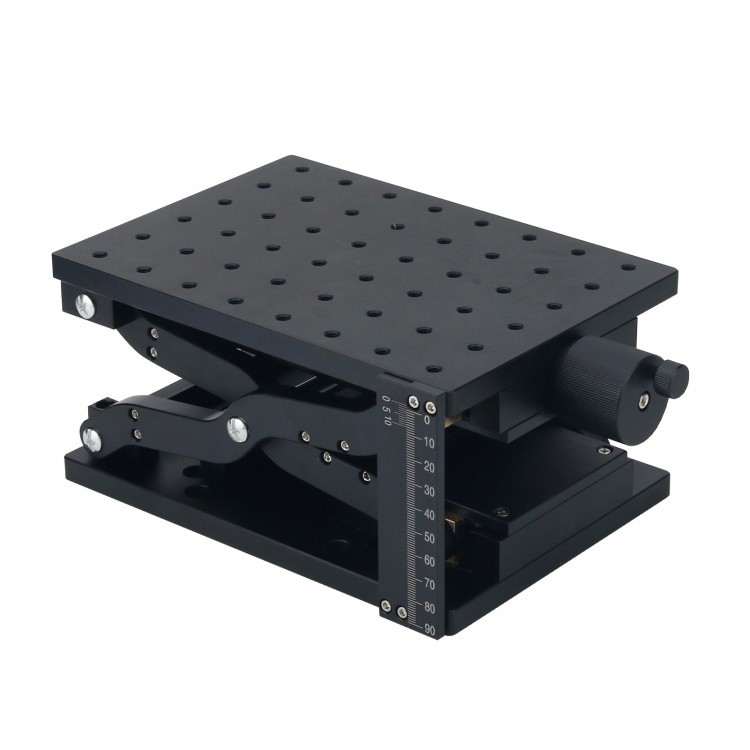

HYHTZ210 8.3 x 5.9" Z Axis Laboratory Jack Precision Lab Jack Laboratory Scissor Jack with Scale

HYHTZ210 8.3 x 5.9" Z Axis Laboratory Jack Precision Lab Jack Laboratory Scissor Jack with Scale

Features:
- Z-axis laboratory scissor jack
- It is used for large stroke, non-quantitative, large load lifting adjustment
- It adopts scissor lifting support and double guide rail five-axis over-positioning mechanism to ensure smooth movement. It is driven by lead screw
- It is comfort to use the lab jack, with high precision and large load capacity
- Both of the top platform and the base are designed with multiple holes for strong applicability. Both sides can be used as installation surfaces
- Locking screw makes it safe and reliable to use. The lifting height can be easily adjusted
- The base and the top platform have connection holes with standard hole pitch for easy use with other series combinations
- Selected material: aluminum alloy with black anodized surface and long service life
- Accurate readings and easy installation
- Fine workmanship and more stable performance
- Manual lifting: Rotate the adjustable knob clockwise to rise; turn counterclockwise to descend

Specifications:
- Model: HYHTZ210
- Top platform: 210 x 150mm/8.3 x 5.9"
- Drive mode: driven by lead screw
- Lifting stroke: 120mm/4.7"
- Small adjustment amount: 10μ (reference)
- Load: 30kg/66.1lb
- Self weight: 3.8kg/8.4lb
- Material: 6061 duralumin
- Surface treatment: black surface anodized

Package Included:
- 1 x Lab Jack
