IC-718 Shortwave Radio HF All Band Transceiver Analog Walkie Talkie Relay Station 100-240V for ICOM

IC-718 Shortwave Radio HF All Band Transceiver Analog Walkie Talkie Relay Station 100-240V for ICOM

Functions:
- RIT trim function reduces the frequency error
- IF Intermediate frequency conversion
- Multiple scanning methods
- Speech compression function increases the average power of microphone and reduces speech distortion
- RF gain control increase the reception sensitivity of weak signals and reduces the distortion caused by strong signals
- Adjustable noise suppression
- RF attenuator and preamplifier
- 101 storage channel
- Rich CW functional features
- Built-in keys for CW enthusiasts
- VOX voice controlled emission
- Variable filter selection
- Digital S/RF test instrument
- High frequency stability

Specification:
- Frequency range:
  TX: 1.8, 3.5, 7, 10, 14, 18, 21, 24, 28MHz
  RX: 30KHZ-29.9MHz
- Mode: LSB, USB, CW, RTTY, AM
- Maximum current consumption: 20A 13.8V DC
- Power requirement: 13.8V DC±15%
- Antenna connector: S0-239 (50ohm)
- Channel number: 101 (99 common, 2 scanning edge)
- Size: 240 x 95 x 239mm
- Weight: about 3.8kg

Transmission TX:
- Output power: SSB, CW, RTTY: 2-100W; AM: 2-35W
- Spurious emission: < -50dB
- Carrier suppression: >40dB
- Useless sideband: 600ohm
- Microphone connector: 8-core connector (600ohm)

Receiving specification:
- Selectivity: SSB, CW, RTTY: 2.1kHz/-6dB
  4.5kHz/-60dB
  AM: 6.0kHz/-6dB
  20kHz/-40dB
- Spurious signal and image suppression: >70dB (1.8-29.999MHz)
- AF Power (10% distortion, 8ohm load): >2.0W
- External speaker connector: 2 core 3.5 (D) mm (1/8’’)/8ohm

Package Included:
- 1 x Host

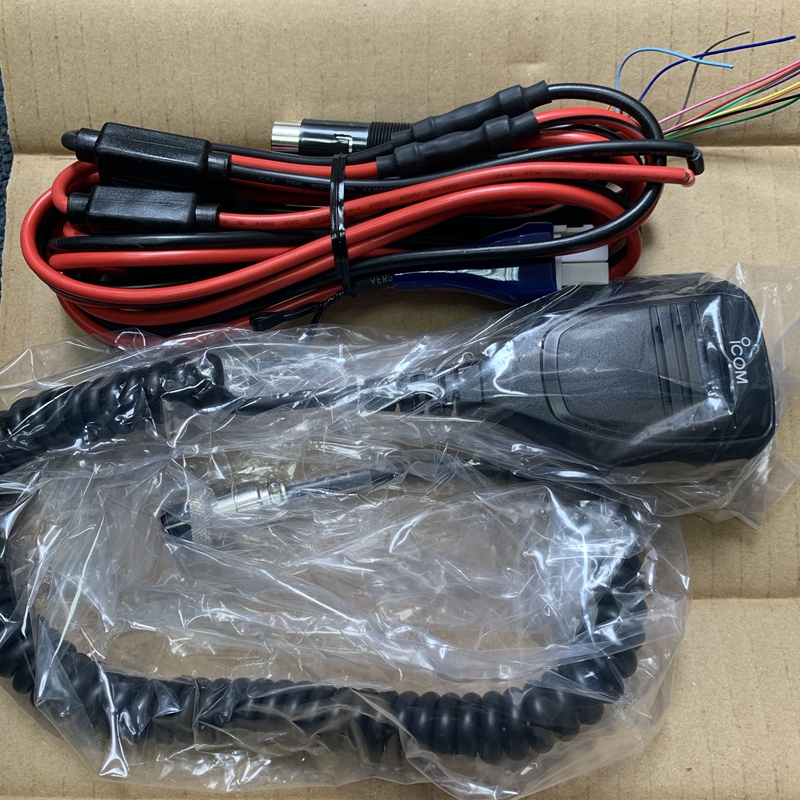

- 1 x Cable
