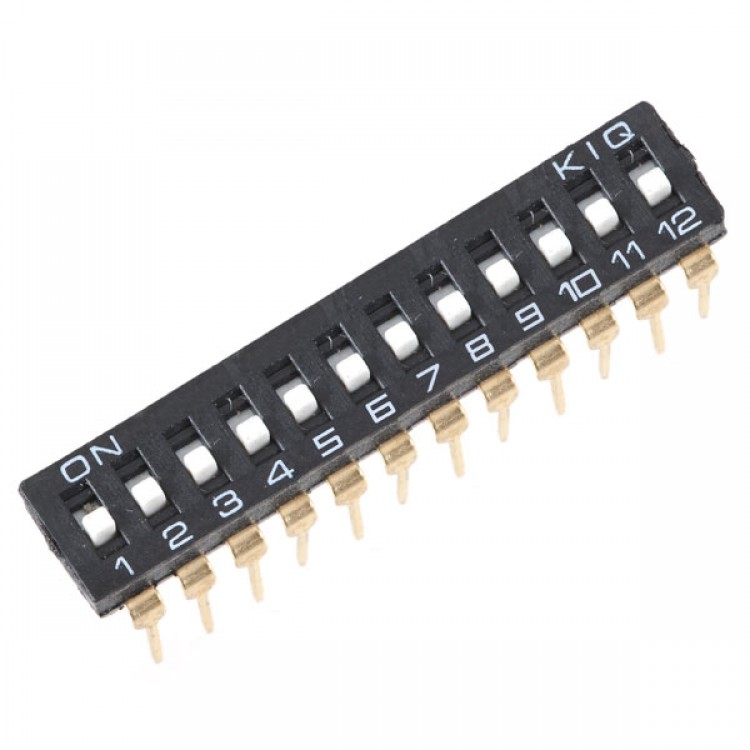

• IC chip Analog Switch 12 Digital 2.54mm DIP Switch

IC chip Analog Switch 12 Digital 2.54mm DIP Switch

Availability: Out Of Stock

  • Price:$27.05
  • Price in reward points: 271 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $26.51 $25.97 $25.16 $24.07 Contact US
Quantity:

IC chip Analog Switch 12 Digital 2.54mm DIP Switch
Features:
- All materials are UL 94V-0 grade, high temperature resistance plastic.
- Twin contact design to ensure stable contact.
- Gold-plated contacts to ensure low contact resistance, tin-plated terminals to prevent contamination during soldering.
Specfications:
- Rating: 25 mA 24 V DC
- Non-switch: 100 mA 50 V DC
- Through Hole Type 7.62mm
- Pin Pitch 2.54mm
- Recessed Actuator
- Top Tape Sealed
- 1~10,12 Positions
- Contact resistance: 100 mΩ (Max.)
- Dielectric strength: AC 500 V 1 minute
- Mechanical life: 2,000 cycles (Min.)
- Operating force: 1,000 gf Max.
- Operating temperature: -20 ~ + 85
