iCON 4Nanos USB Audio Interface 4-In 4-Out Professional Sound Card w/ 2" Full-Color LCD Level Meter

iCON 4Nanos USB Audio Interface 4-In 4-Out Professional Sound Card w/ 2" Full-Color LCD Level Meter

Features:
Brilliant New Sound · Pure Audio Quality
* Multi I/O
* Full-color LCD
* Professional-grade audio interface

Professional I/O Capabilities
* Designed to meet the demands of multitrack recording and mixing.

65dB Microphone Gain
* Delivers ample headroom to handle a wide range of microphones with ease.

2-Inch Full-Color LCD Level Meter
* View detailed and clear input/output levels at a glance for precise monitoring.

Durable & Anti-Slip Design
* Crafted with a full aluminum alloy chassis for enhanced durability, and equipped with silicone pads to prevent slipping during use.

Cross-Platform Compatibility
* Compatible with major audio software for seamless recording and streaming across multiple systems.

Studio-Grade Professional Audio Interface
* A powerful upgrade for exceptional output!
* Experience crystal-clear sound detail—from the softest whisper to the most thunderous roar—every nuance is under your control.
* 125dB dynamic range (ADC)
* 130dB dynamic range (DAC)

Powerful Microphone Gain Capability
* Equipped with 65dB microphone gain, even low-sensitivity microphones can perform brilliantly, delivering clear recordings even from a distance.

High Sampling Rate for Pure, Deeply Restored Sound Quality
* From 44.1kHz up to 192kHz, the high sampling rate records every note, while 24-bit depth faithfully reproduces true-to-life audio.
* 24-bit sampling depth
* 192kHz sampling rate

UNI™ (OTG) Lossless Digital Audio Transmission
* Officially tested for 72 hours of uninterrupted live streaming — ultra-stable connection and high dynamic performance ensure worry-free audio creation.

i/O Pro Professional Plugin
* Official iCON plugin host and control panel enable hardware volume control with real-time response to boost efficiency
* Highly flexible control
* Real-time response
* Compatible with multiple platforms

One-Click Audio Enhancement Technology
* SHAPE Switch: Boosts high frequencies from 2kHz to 20kHz for brighter sound and enhanced high-frequency details.
* BUMP Switch: Engages a low-cut filter at 60Hz with +5dB boost, removing low-frequency noise while enriching low-end details for fuller vocals.
* +48V Phantom Power Switch: Press to supply +48V phantom power, compatible with most condenser microphones.
* INST Switch: Activate when using instruments to add gain; no need to enable during singing or speaking.

Suitable for Various Scenarios
* Live karaoke and energetic mic performances
* Gaming
* Media recording and voice-over
* Outdoor live streaming and content creation

Specifications:
Inputs/Outputs:
* Microphone Inputs (XLR, Balanced): 2
* Hi-Z Instrument Inputs: 2
* Analog Line Inputs: 2
* Analog Monitor Outputs (DC Coupled): 2
* Digital Output Port: USB (UNI OTG)

ADC Chip:
* Dynamic Range: 125dB (A-weighted)
* SNR: -125dB (A-weighted)
* THD+N: -117dB at -1dBFS

DAC Chip:
* Dynamic Range: 130dB (A-weighted)
* SNR: -130dB (A-weighted)
* THD+N: -115dB at 0dBFS

Instrument Input 1/2 (6.35mm TRS, Unbalanced):
* Frequency Response: 20Hz – 20kHz (±0.6dB)
* Input Impedance: 390KΩ
* Typical Gain Range: -8dB to +60dB
* Max Input Level: +20dBu

Line Output 1/2 (Stereo, Unbalanced):
* Frequency Response: 20Hz – 20kHz (±0.1dB)
* Nominal Output Level: +4dBu (typical)
* Max Output Level: +6.8dBu
* Output Impedance: 220Ω
* Load Impedance: 600Ω

Headphone Output (Stereo, Unbalanced):
* Frequency Response: 20Hz – 20kHz
* Max Output Level: +13dBu (typical)
* Output Impedance: 10Ω
* Load Impedance: 32 – 600Ω

Microphone Input 1/2 (XLR, Balanced):
* Frequency Response: 20Hz – 20kHz (±0.6dB)
* Equivalent Input Noise: < -120dB
* Input Impedance: 3KΩ
* Gain Range: -8dB to +65dB
* Max Input Level: +18dBu

Dimensions & Weight:
* Dimensions: 165mm × 181mm × 63mm
* Weight: 944g

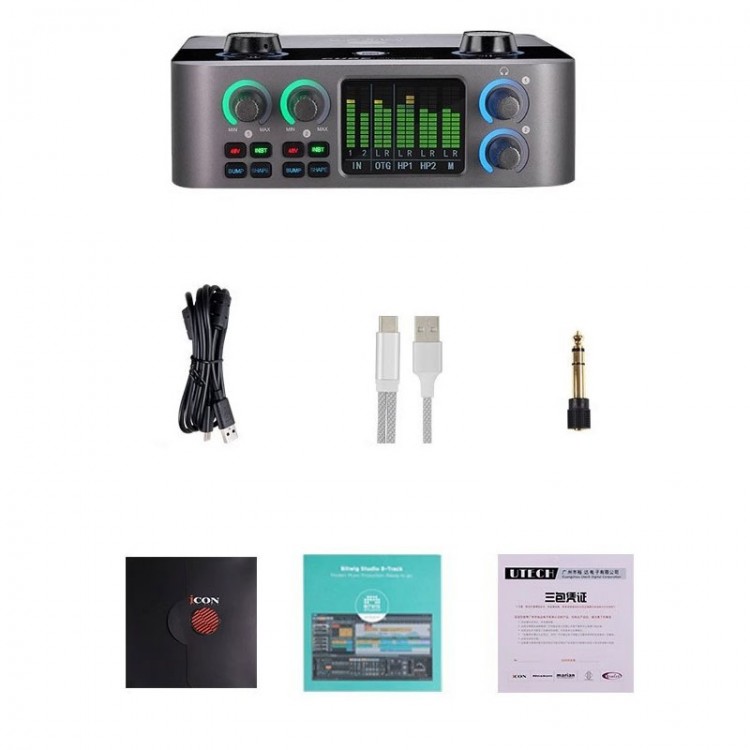

Packing List:
* 1 x Audio Interface
* 1 x Dual Ferrite Ring USB 2.0 to Type-C Cable
* 1 x Type-C OTG Cable
* 1 x 6.35mm Adapter
* 1 x Installation Guide
* 1 x Official BITWIG Software Introduction
* 1 x Warranty Certificate

Packaging Details:
* Weight: 2kg
