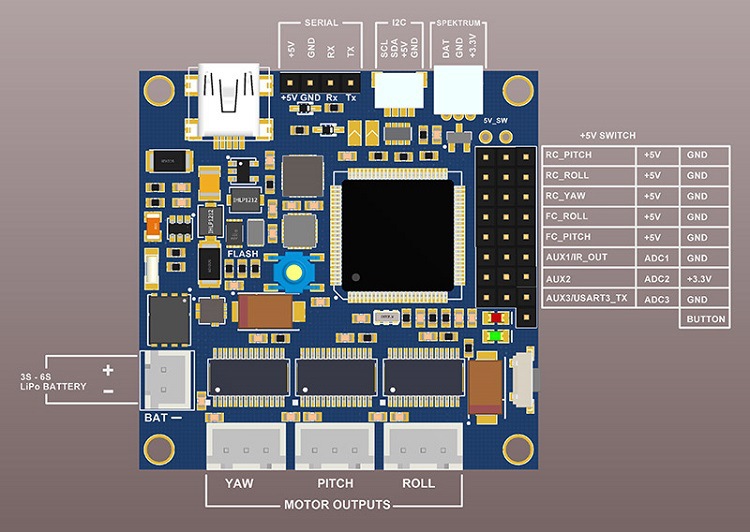

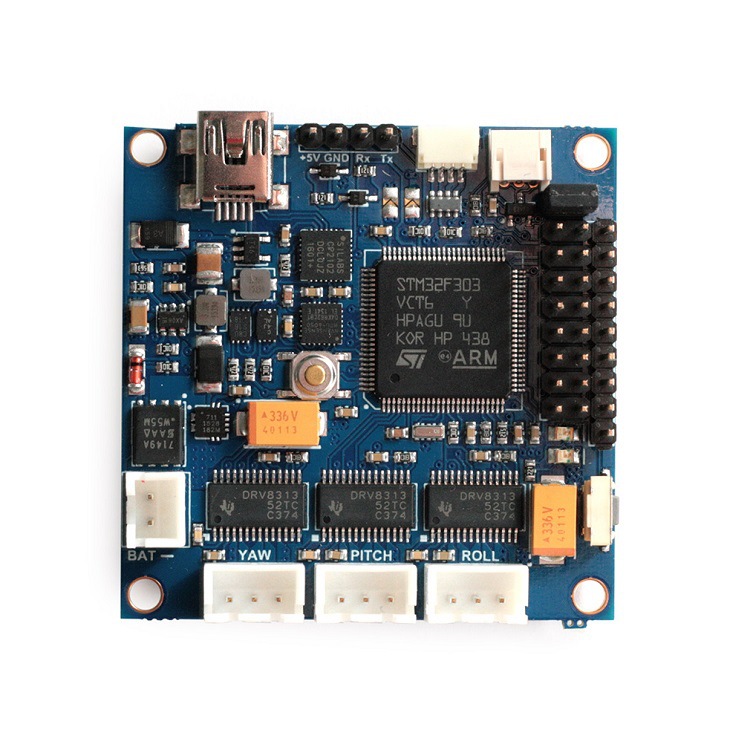

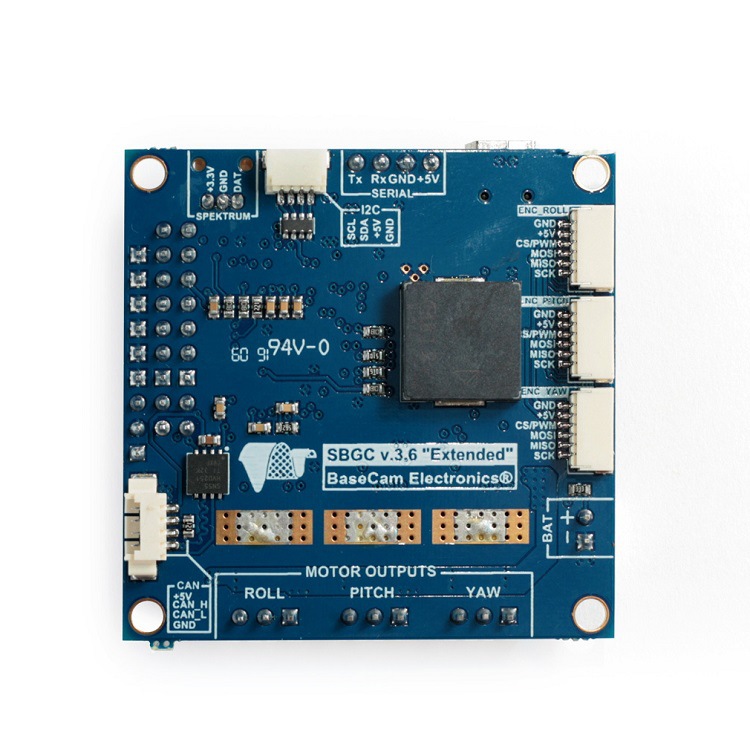

iFlight BaseCam SimpleBGC 32-Bit Extended Sensor Program Gimbal Controller Board Built-in Frame IMU
Description:
- The iFlight Original BaseCam SimpleBGC 32-bit Extended Gimbal Controller Encoder Version, it is built-in frame IMU, a current sensor to measure battery power consumption, CAN-bus to replace I2C for the IMU sensor and other periphery connection.
New Capabilities:
- Built-in Frame IMU
- Current sensor to measure battery power consumption
- CAN-bus to replace I2C for the IMU sensor and other periphery connection
- Dedicated 3x SPI/PWM ports for encoder connection
- Additional I2C port to connect 2nd IMU or encoders
- Built-in sound beeper
- Up to 6s LiPo battery (not included) is supported
Specifications:
- Size of the board: 50 x 50 mm
- The Distance between the mounting holes: 45 mm
- The Diameter of the mounting holes: 3 mm
- Power supply voltage: 8-26 V (3s-6s LiPo)
- Maximum motor current: 1.5A
- 5V output current to power external devices: up to 1 A
- 3V output current: 150mA

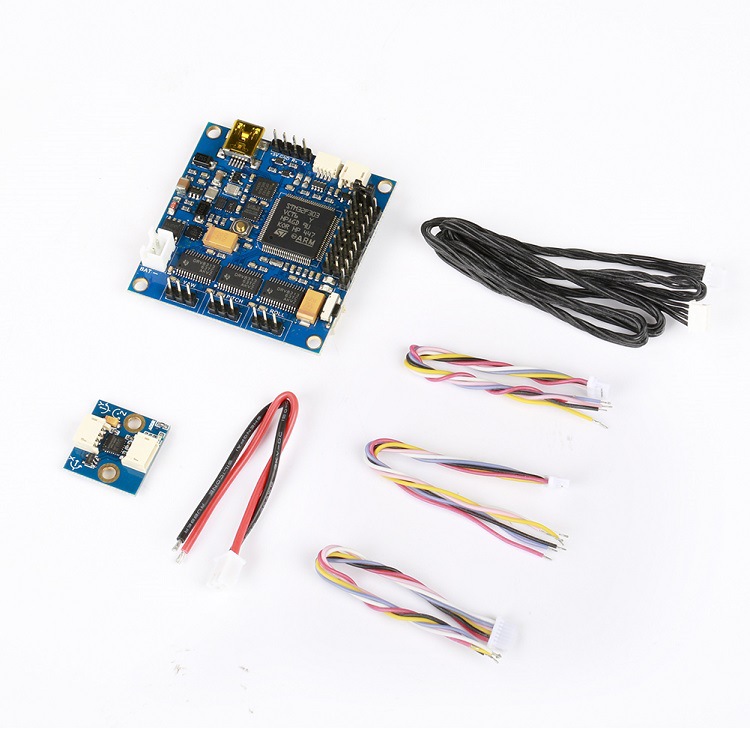

Package Included:
- 1 x BaseCam SimpleBGC 32-bit Extended
- 1 x Camera IMU& NEccessory Wires
Manual Download:
- http://levitezer.com/styled-2/blog-2/files/72d28d8da53e386944cd0f0b42a017b6-29.html
