iFlight XL6 V4 Long Range FPV Frame FPV Freestyle Frame 255mm FPV Racing Drone Frame Unassembled

Availability: Out Of Stock

  • Price:$44.65
  • Price in reward points: 447 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $43.76 $42.86 $41.52 $39.74 Contact US
Quantity:

iFlight XL6 V4 Long Range FPV Frame FPV Freestyle Frame 255mm FPV Racing Drone Frame Unassembled

Technical Parameters:

- Diagonal wheelbase: 255mm
- Overall frame size: 180*180mm
- Net weight: 129.5g
- Top plate thickness: 3mm
- Bottom plate thickness: 2mm
- Arm thickness: 5mm
- Arm width: 11.3mm
- Electronic equipment installation height: 25mm (aluminum column height 25mm)
- Flight control hole distance: 30.5*30.5mm/20mm*20mm
- Motor circlip hole position: 8mm
- Supported Motor: 22/23 series
- Camera spacing: 19mm/22mm

Features:
1. Careful appearance and reasonable design
2. Made with imported 3K pure carbon fiber
3. Reasonable installation location makes wiring more reasonable
4. Adopt 30mm aluminum column, sufficient internal space
5. Camera side panel protection
6. Lengthened plate for your motor bottom, and it is not easy to hit the motor during impact

Package Included:
- 1 x Set of FPV Frame

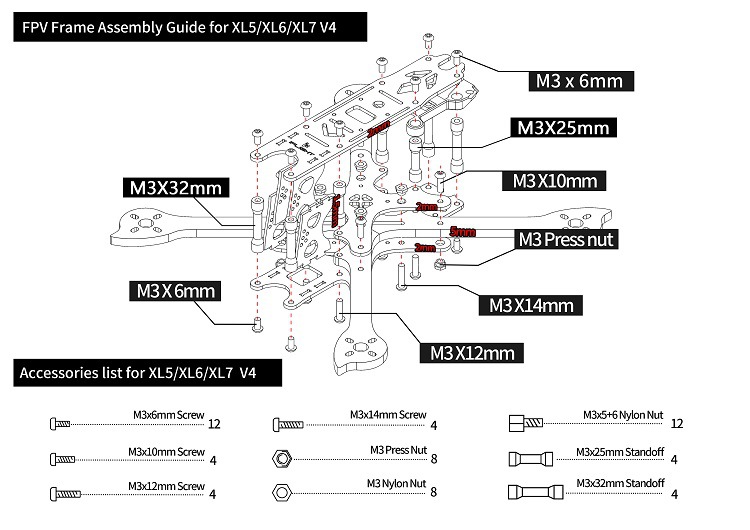

Note: Assembling is needed.
