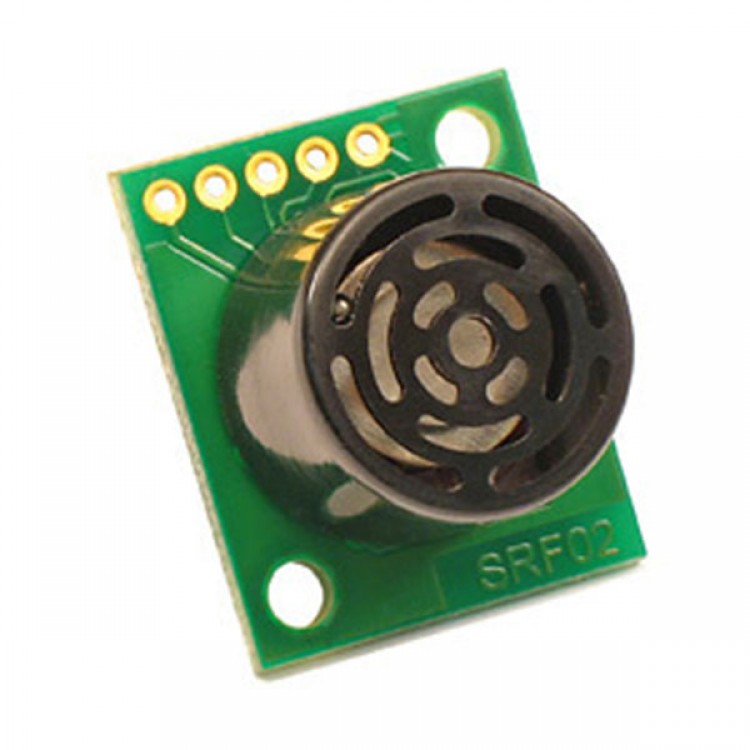

Imported SRF02 Ultrasonic Distance Sensor Module I2C Interface
Description:
- This product is imported Daventech the latest SRF02 ultrasonic sensors. Professional users fully aware of the SRF series of ultrasonic sensors superior performance, and has made a qualitative difference sensor . Whether in the performance parameters, workmanship and job stability are on the world-class level. New SRF02 using a transducer, effectively reducing the size and power consumption. Meanwhile SRF02 I2C interface not only provides , for the first time provides a serial interface such that it can be adapted to the system architecture.
- SRF02 ultrasonic distance detection module , 15 cm -6 m , big brand performance parameters are to undergo a rigorous experimental determination of ultra- users can rest assured . SRF02 is definitely a top multiple domestic similar products. If your project has strict requirements for ultrasonic performance , then SRF series is your perfect choice.
- Robot developed based on our years of experience, we highly recommend the application of the project in the robot ultrasonic module . This module can be obtained within the sonar exact distance of the obstacle . Your robot will be able to bat-like sonar to perceive through the surrounding environment , you only need a small piece of code that can be based on the distance between obstacles to accurately control your motor running , so that you can easily avoid robots open obstructions.
Parameters:
- Operating voltage : 5v
- Operating Current : 4mA typical .
- Operating Frequency : 40KHz
- Interface Type : TTL serial interface / I2C Interface
- Beam angle: 55 degrees
- Size : 24x20x17mm ( high )
- Weight : 4.6g
