Integrated Circuit IC Tester for 74 40 45 Series lC Logic Gate Tester Digital Meter

Integrated Circuit IC Tester for 74 40 45 Series lC Logic Gate Tester Digital Meter

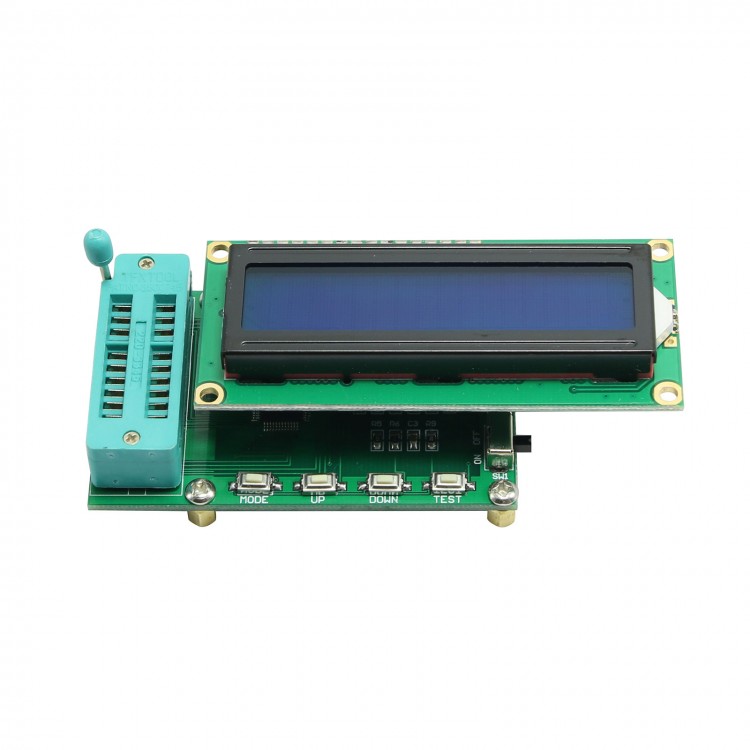

TES200 suitable for digital integration testing , mainly to test 74 series and 40 series IC , you can test more than 200 kinds IC.
  Simple to use, test logic can also determine which integrates logic gate is bad.

Specifications:

1, operating voltage of 7 ~ 12 VDC
2, Working current <30 mA
3, Operating temperature -40 ℃ ~ 65 ℃ Celsius
4, Storage temperature -40 ℃ ~ 65 ℃ Celsius
5, Size 70 * 45 * 40 mm Length X Width X Height

Interface description and related operations:

JK1 Power Interface (DC head D13): the center is positive . Supply voltage (7 ~ 12V) DC .

SW1 Power Switch
ON: power-on state .
OFF: Power off.

Key Description
- MODE: Select the type of integration . ( 74 Series or 40 Series )
- UP: choice of an integrated model .
- DOWN: Select the next integrated model .
- TEST: Test selection integrated model .

Note : When installing the integration test is aligned downwards .

Package List:

1 x New IC Tester 74 40 45 Series lC Logic Gate Tester Digital Meter

74
 7400 ,7401 ,7402 ,7403 ,7404 ,7405 ,7406 ,7407 ,7408 ,7409
  7410 ,7411 ,7412 ,7413 ,7414 ,7415 ,7416 ,7417 ,7418 ,7419
  7420 ,7421 ,7422 ,7424 ,7425 ,7426 ,7427 ,7428 ,7430 ,7432
  7433 ,7434 ,7435 ,7436 ,7437 ,7438 ,7439 ,7440 ,7442 ,7443
  7444 ,7445 ,7446 ,7447 ,7448 ,7454 ,7464 ,7470 ,7472 ,7473
  7474 ,7475 ,7476 ,7477 ,7478 ,7480 ,7482 ,7483 ,7485 ,7486
  7487 ,7489 ,7494 ,7495 ,7496 ,74101 ,74102 ,74103 ,74107 ,74108
  74109 ,74112 ,74113 ,74125 ,74126 ,74128 ,74130 ,74132 ,74133 ,74134
  74135 ,74136 ,74137 ,74138 ,74139 ,74140 ,74145 ,74147 ,74148 ,74151
  74152 ,74153 ,74155 ,74156 ,74157 ,74158 ,74160 ,74161 ,74163 ,74164
  74165 ,74166 ,74171 ,74173 ,74174 ,74175 ,74176 ,74177 ,74180 ,74182
  74190 ,74191 ,74192 ,74193 ,74194 ,74195 ,74197 ,74242 ,74243 ,74247
  74248 ,74249 ,74251 ,74253 ,74256 ,74257 ,74258 ,74259 ,74260 ,74266
  74279 ,74280 ,74283 ,74290 ,74293 ,74295 ,74298 ,74350 ,74352 ,74353
  74365 ,74366 ,74367 ,74368 ,74375 ,74378 ,74379 ,74390 ,74393 ,74395
  74425 ,74426 ,74445 ,74447 ,74490 ,74595 ,74670


40 ,45
 CD4000, CD4001, CD4002, CD4006, CD4007, CD4008, CD4009, CD4010, CD4011, CD4012,
 CD4013, CD4014, CD4015, CD4016, CD4017, CD4018, CD4019, CD4020, CD4021, CD4022,
 CD4023, CD4024, CD4025, CD4026, CD4027, CD4028, CD4029, CD4030, CD4033, CD4035,
 CD4040, CD4042, CD4043, CD4044, CD4048, CD4049, CD4050, CD4051, CD4052, CD4053,
 CD4060, CD4066, CD4068, CD4069, CD4070, CD4071, CD4072, CD4073, CD4075, CD4076,
 CD4077, CD4078, CD4081, CD4082, CD4085, CD4093, CD4094, CD4099, CD4502, CD4503,
 CD4504, CD4510, CD4511, CD4512, CD4516, CD4518, CD4520, CD4522, CD4526, CD4529,
 CD4532, CD4539, CD4543, CD4555, CD4556, CD4584, CD40106, CD40110, CD40161, CD40162,CD40174, CD40175, CD40192, CD40193,
