TES200 1602A IC Tester Integrated Circuit Tester Logic Gate Quality Tester For 74 Series 40 Series

Availability: In stock, usually dispatched in 1 business day

  • Price:$34.87
  • Price in reward points: 349 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $34.17 $33.48 $32.43 $31.03 Contact US
Quantity:

TES200 1602A IC Tester Integrated Circuit Tester Logic Gate Quality Tester For 74 Series 40 Series

Product Description:

1. Widely used. Mainly for testing 74 series and 40 series digital integration, and can test more than 200 kinds of integration
2. Simple to use, select test integration through buttons
3. Fast response. Result can be obtained in 3 seconds at the fastest
4. DC wide voltage power supply, suitable for most power supplies
5. Small and exquisite appearance

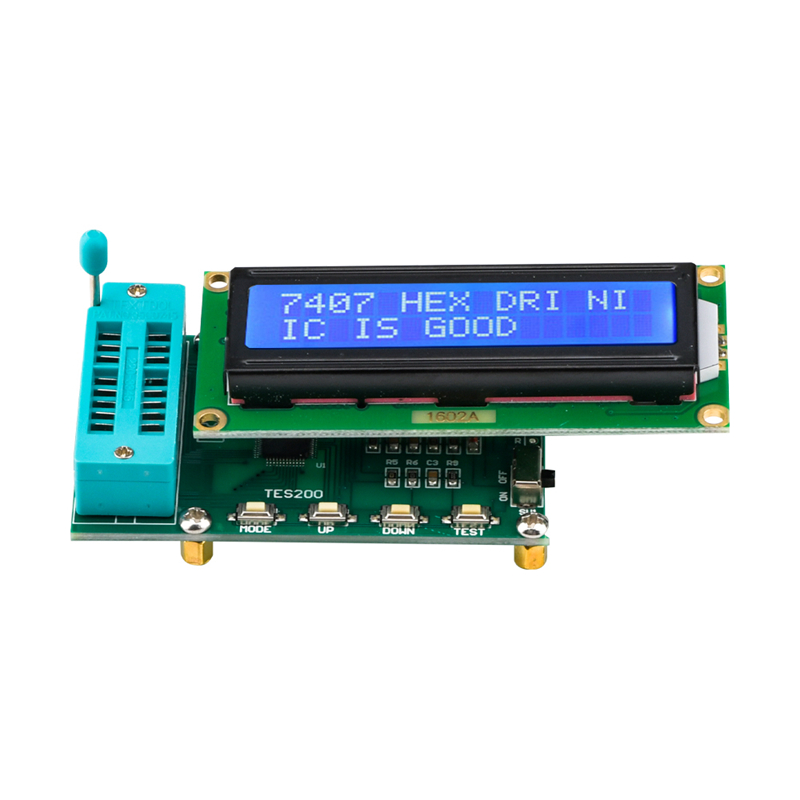

6. Function: TES200 is a digital IC tester, mainly testing 74 series and 40 series digital integration. It can test more than 200 kinds of integration. Simple to use, test logic integration can also determine which logic gate is bad. Select test integration by buttons
7. Applications: Digital integration test

Technical Parameters:
- Working voltage: 7 to 12 VDC
- Working current: <30 mA
- Working temperature: -40℃ to 65℃
- Storage temperature: -40℃ to 65℃

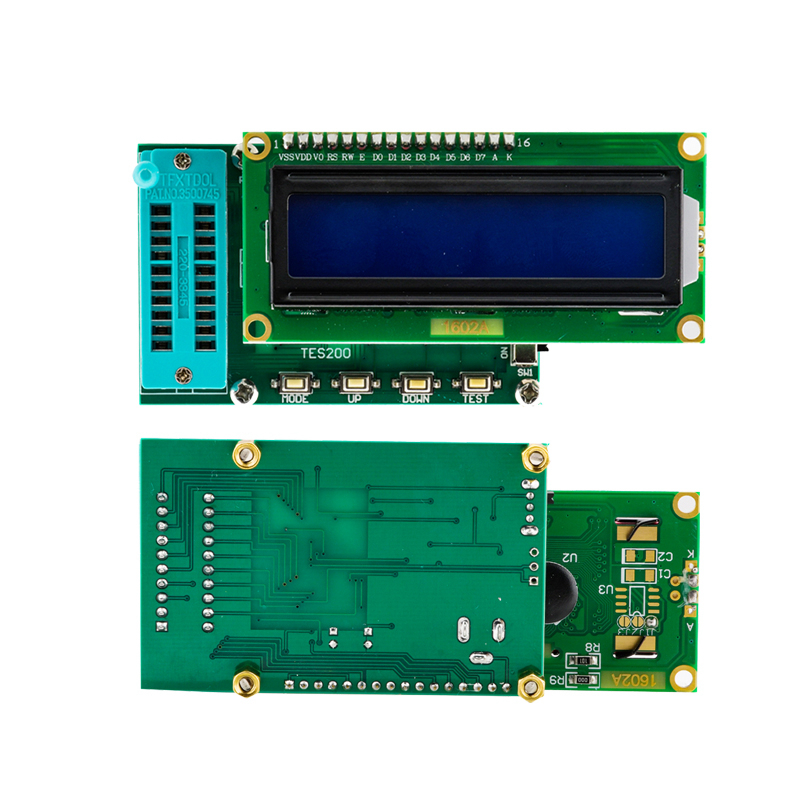

Interface Description and Related Operations:
- JK1 power supply interface (DC head: D13): positive inside and negative outside. Supply voltage (7~12V) DC regulated power supply
- SW1: switch
- ON: power supply is turned on
- OFF: power supply is turned off

Buttons:
- MODE: Select the integration type (74 series or 40 series)
- UP: Select the previous integrated model
- DOWN: Select the next integrated model
- TEST: Test the selected integrated model

Package Included:
- 1 x Set of IC Tester

Note:
- When installing and testing IC chips, it is aligned downwards.


For 74 Series:
7400, 7401, 7402, 7403, 7404, 7405, 7406, 7407, 7408, 7409, 7410, 7411, 7412, 7413, 7414, 7415, 7416, 7417, 7418, 7419, 7420, 7421, 7422, 7424, 7425, 7426, 7427, 7428, 7430, 7432, 7433, 7434, 7435, 7436, 7437, 7438, 7439, 7440, 7442, 7443, 7444, 7445, 7446, 7447, 7448, 7454, 7464, 7470, 7472, 7473, 7474, 7475, 7476, 7477, 7478, 7480, 7482, 7483, 7485, 7486, 7487, 7489, 7494, 7495, 7496, 74101, 74102, 74103, 74107, 74108, 74109, 74112, 74113, 74125, 74126, 74128, 74130, 74132, 74133, 74134, 74135 , 74136 , 74137, 74138, 74139, 74140, 74145, 74147, 74148, 74151, 74152, 74153, 74155, 74156, 74157, 74158, 74160, 74161, 74163, 74164, 74165, 74166, 74171, 74173, 74174, 74175, 74176, 74177, 74180, 74182, 74190, 74191, 74192, 74193, 74194, 74195, 74197, 74242, 74243, 74247, 74248, 74249, 74251, 74253, 74256, 74257, 74258, 74259, 74260, 74266, 74279, 74280, 74283, 74290, 74293, 74295, 74298, 74350, 74352, 74353, 74365, 74366, 74367, 74368, 74375, 74378, 74379, 74390, 74393, 74395, 74425, 74426, 74445, 74447, 74490, 74595, and 74670

For 40 and 45 Series:
CD4000, CD4001, CD4002, CD4006, CD4007, CD4008, CD4009, CD4010, CD4011, CD4012, CD4013, CD4014, CD4015, CD4016, CD4017, CD4018, CD4019, CD4020, CD4021, CD4022, CD4023, CD4024, CD4025, CD4026, CD4027, CD4028, CD4029, CD4030, CD4033, CD4035, CD4040, CD4042, CD4043, CD4044, CD4048, CD4049, CD4050, CD4051, CD4052, CD4053, CD4060, CD4066, CD4068, CD4069, CD4070, CD4071, CD4072, CD4073, CD4075, CD4076, CD4077, CD4078, CD4081, CD4082, CD4085, CD4093, CD4094, CD4099, CD4502, CD4503, CD4504, CD4510, CD4511, CD4512, CD4516, CD4518, CD4520, CD4522, CD4526, CD4529, CD4532, CD4539, CD4543, CD4555, CD4556, CD4584, CD40106, CD40110, CD40161, CD40162, CD40174, CD40175, CD40192, and CD40193
