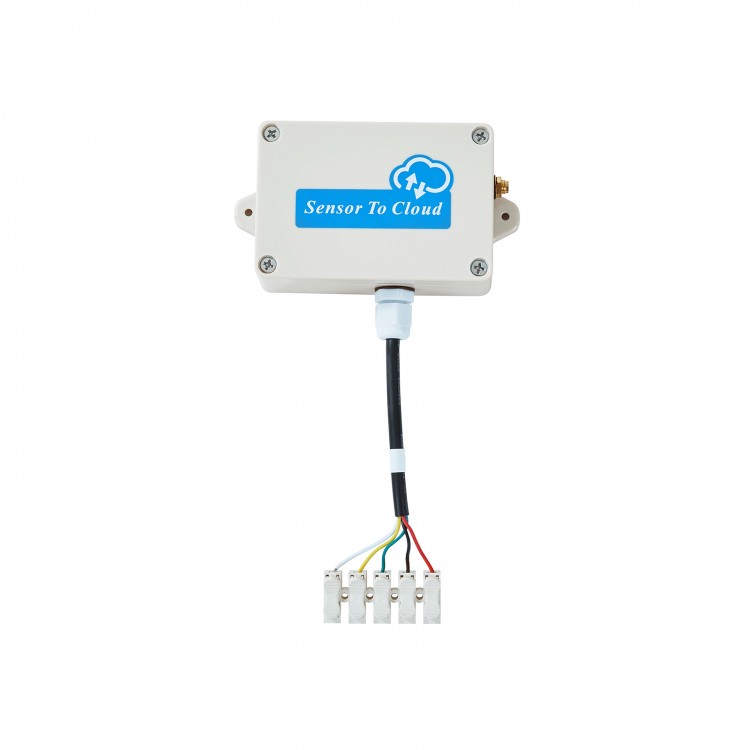

IOT102 DO IoT Module Digital Output w/ Waterproof Shell For Modbus RTU Over TCP 4G Communication
Description:
The
Wireless DO IoT Module is a wireless Internet of things gateway,
designed for remote switching ON/OFF relay by wireless communication,
and connect to IoT cloud platform. Suitable for gate openers, motors,
relays, equipment, pump station, street lights, and other remote control
applications, etc.
I/O Type:
1-way switch output (OC gate output)
Features:
- Communication protocol: For Modbus RTU Over TCP
- Housing: waterproof shell
-
2 working modes are optional: (1) Normal mode: data is communicated in
real time, allowing users to know on-site situation in time; (2) Low
power consumption mode: ultra-low power consumption design (less than
230uA), suitable for places where data is collected periodically
- Support setting parameters and viewing real-time data through SMS, computer configuration software, cloud platform;
- Support 10 user numbers, each number can be set individually to receive specific alarm messages and alarm calls;
- Support 10 timers, you can set timing restart, timing report, timing online, timing offline, etc .;
- Support 2 different server centers, can set IP address or domain name;
- Support for Modbus RTU Over TCP protocol or data transparent transmission;
- Perfect data reissue mechanism to ensure that each piece of data is uploaded to server effectively;
- 32M-bit cache capacity, can cache up to tens of thousands of historical data;
- Wide working voltage design, support 7-24VDC power supply, and with anti-reverse protection;
- Built-in clock chip and super capacitor to ensure long-term timing after power failure;
- Support for Nano-SIM mobile phone card, support PIN code verification function to ensure the safety of the card.
Package Included:
- 1 x Set of IOT102
