| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $122.79 | $120.29 | $116.53 | $111.52 | Contact US |
PX Logic 32 32-Channel 1GHz 4G Storage USB3.0 Super High Speed Logic Analyzer with Accessory Kit
$220.81
PX Logic 16 Pro 16-Channel 1GHz 4G Storage USB3.0 Super High Speed Logic Analyzer with Accessory Kit
$143.08
PX Logic 16 Base 16-Channel 250MHz 1G Storage USB3.0 Super High Speed Logic Analyzer with Accessory Kit
$104.21

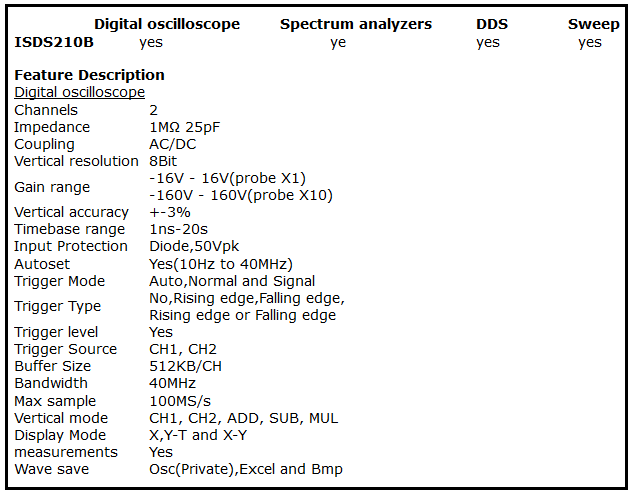

ISDS210B 4 IN 1 Dual Channel PC USB Portable Digital Oscilloscope + Spectrum Analyzer +DDS +Sweep 40M 100MS/s
Note:

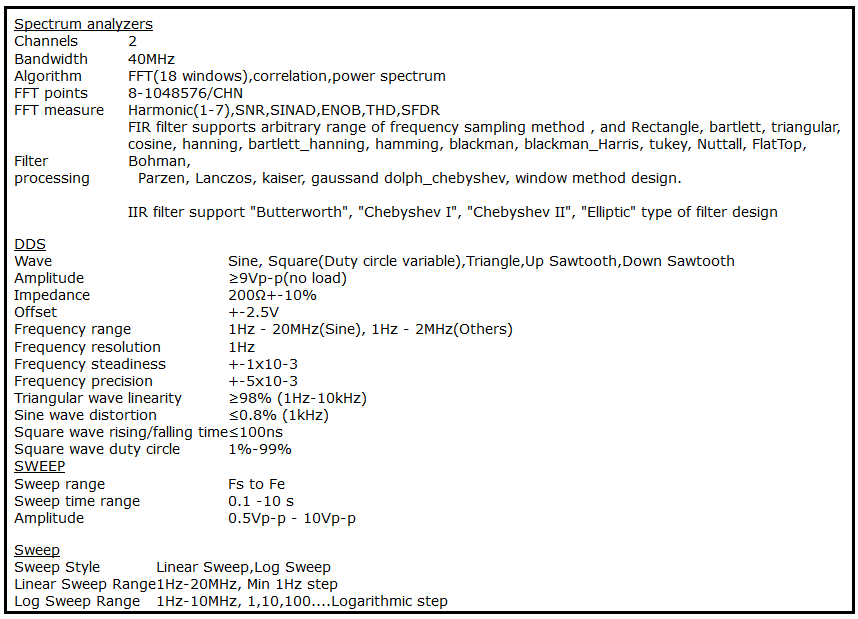

DDS signal source, with increasing frequency, most significant output becomes smaller,the maximum amplitude of each frequency segment as shown below:
- Frequency/Vpp: <1MHz 2MHz 5MHz 10MHz 20MHz
- Sine: 9.26v 8.48v 6.16v 2.64v 0.63v
- Square: 9.36v 9.36v -- -- --
- Triangle,Up Sawtooth,Down Sawtooth: 9.12v 7.36v 5.08v -- --
Packing Content:

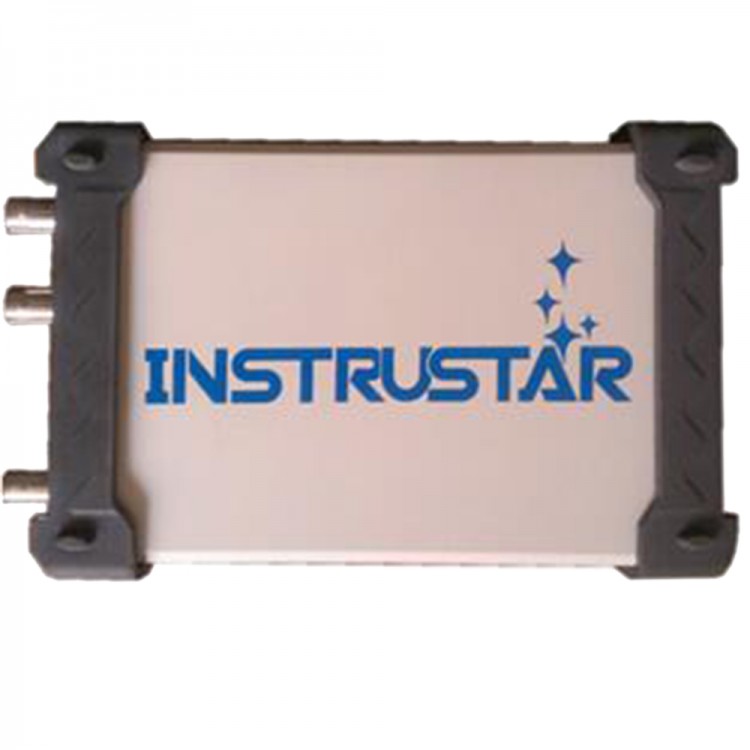

- 1 x isds210B oscilloscope
- 2 x oscilloscope probe
- 1 x USB cable
- 1 x BNC to Clip cable
- 1 x CD
- 1 x Manual
