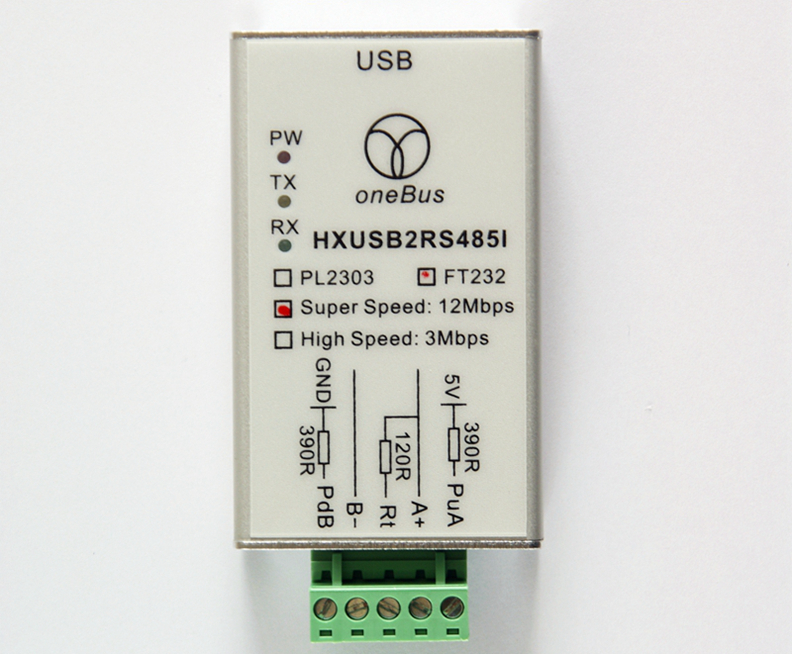

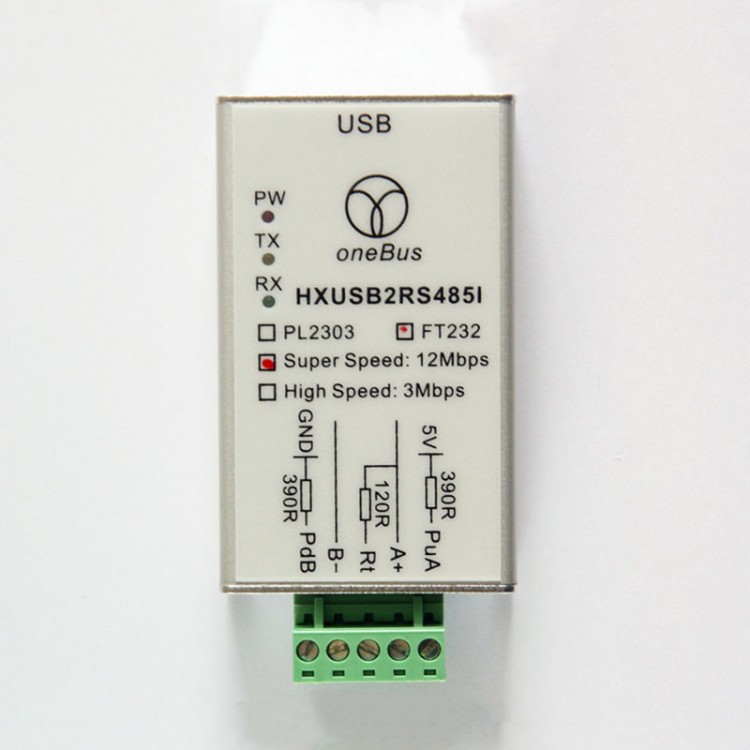

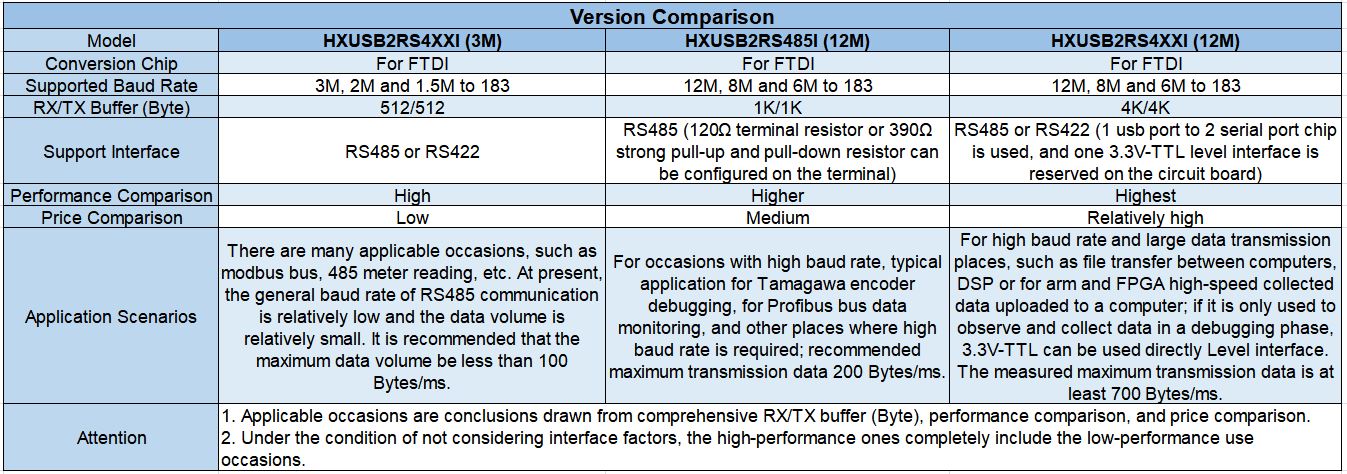

Isolated Converter USB To RS485 HXUSB2RS485I (12M) FT232 12Mbps For Tamagawa Encoder Debugging
Download Driver Manual and Serial Port Assistant:
http://pan.baidu.com/s/15Cde-923NU07c7zDa0wAmQ
Password: msad
Main Features:
1. Use high-speed USB conversion control chip for FTDI to directly virtualize the RS485 interface into a computer COMM port
2. RS485 interface and USB interface are isolated by a high-speed magnetic isolation chip. Isolation voltage: 1500V
3. Selected 600w high-speed TVS effectively protects the RS485 communication interface
4. RS485 supports the baud rate of 12M, 8M, and the baud rate in the range of 6M to 183, and the receiving and sending buffer is 1K
5. Fully support for Win xp, Win7, Win8, Win10 and other systems
6. Built-in 120Ω terminal resistor and 390Ω strong pull-up and pull-down resistor, you can configure whether to use it through its wiring port
7. Please click the link for https://www.ftdichip.com/Drivers/VCP.htm to download the latest for FTDI chip driver (For Win8, Win10 system, it can be used directly, no need to install the driver)
Attention:
When controlling the chip for FTDI, in order to obtain a faster receiving response speed, please set it as follows: Right-click My Computer -> Select Properties (R) -> Click Device Manager in the pop-up page -> Ports (COM and LPT) -> Right-click the corresponding serial port [for example, USB Serial Port (COM3)] -> Select Properties (R ) -> Select Port Settings page in the pop-up window -> Click Advanced (A)..., in the pop-up page set the Delay Timer (milliseconds) to 1 (default is 16), and then OK (You don't need to restart the computer).
Indicator Lights:
1. PW (Red): USB power supply indication
2. TX (Yellow): Transmitting data
3. RX (Green): Receiving data

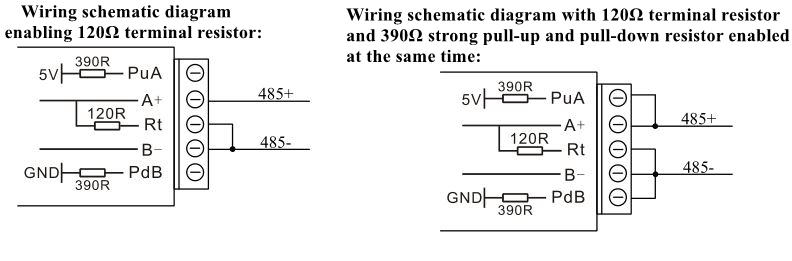

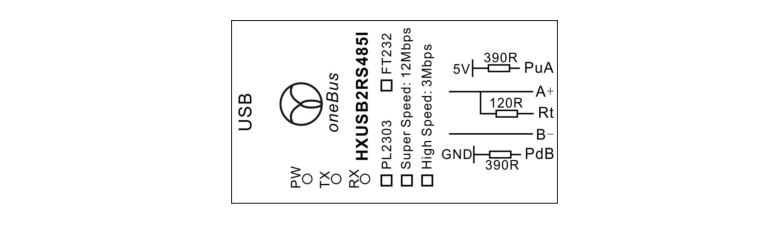

Signal Introduction:
1.PuA: 390Ω strong pull-up configuration lead wire
2.A+: Rs485 signal+
3.Rt: 120Ω terminal resistance configuration lead wire
4.B-: Rs485 signal-
5.PdB: 390Ω strong pull-down configuration lead wire
Provide serial debugging tool for SerialPro. It can be used for testing under the system for Win xp, Win7, Win8 and Win10. In addition to commonly used baud rate settings, you can also manually input any baud rate value. At the same time, to facilitate the use of some protocols, you can add and verify with one key or for modbus-rtu crc verification.
Package Included:
- 1 x Set of Magnetic Isolated Converter
