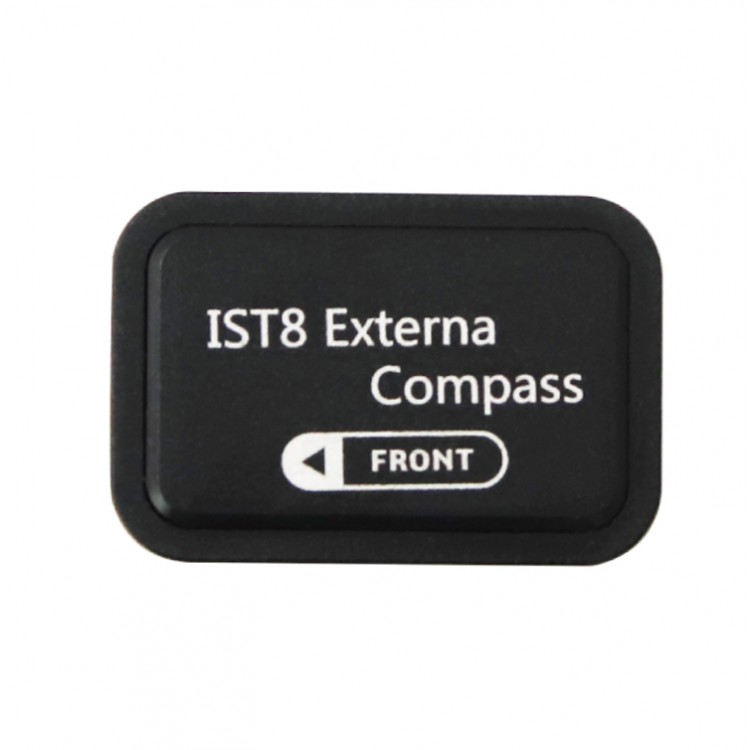

IST8 External Compass Module Geomagnetic Sensor IST8310 External Compass for PIX Flight Controller
Description:
With built-in 3×3mm LGA geomagnetic sensor IST8310, the IST8 compass module is widely used in UAV drones. It supports for PIX flight controller in PX4 and ArduPilot systems. It can be used as an external compass for V5 flight controller.
Specifications:
- Compass: IST8310
- Operating Temperature: -40 to 85℃
- Power Input: 5V
- Interface: I2C
- Weight: 5g
- Size: 23*14*9mm
- Optional Version: for V5 I2C Interface; for PIX
Package Included:
- 1 x External Compass Module
Note: Please tell us your desired version when purchasing. Thank you!

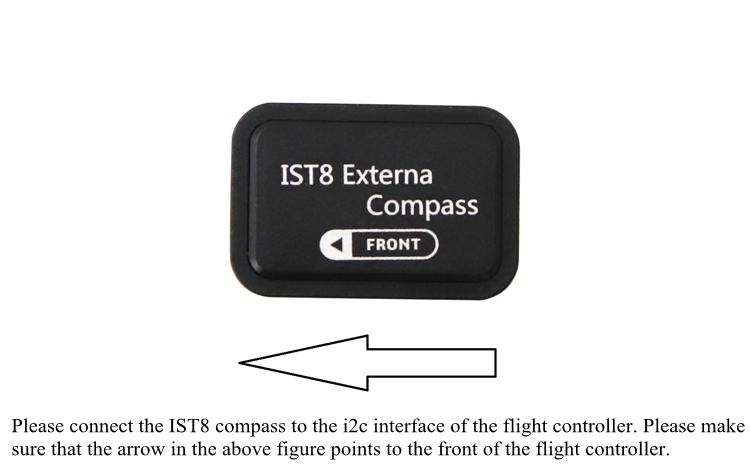

Installation:
Supported Firmware:
It is suitable for the firmware of the CUAV V5 flight controller, supporting for both PIX and APM firmware. If you are using other flight controller, please contact our customer service.
Compass Calibration:
See compass calibration interface
